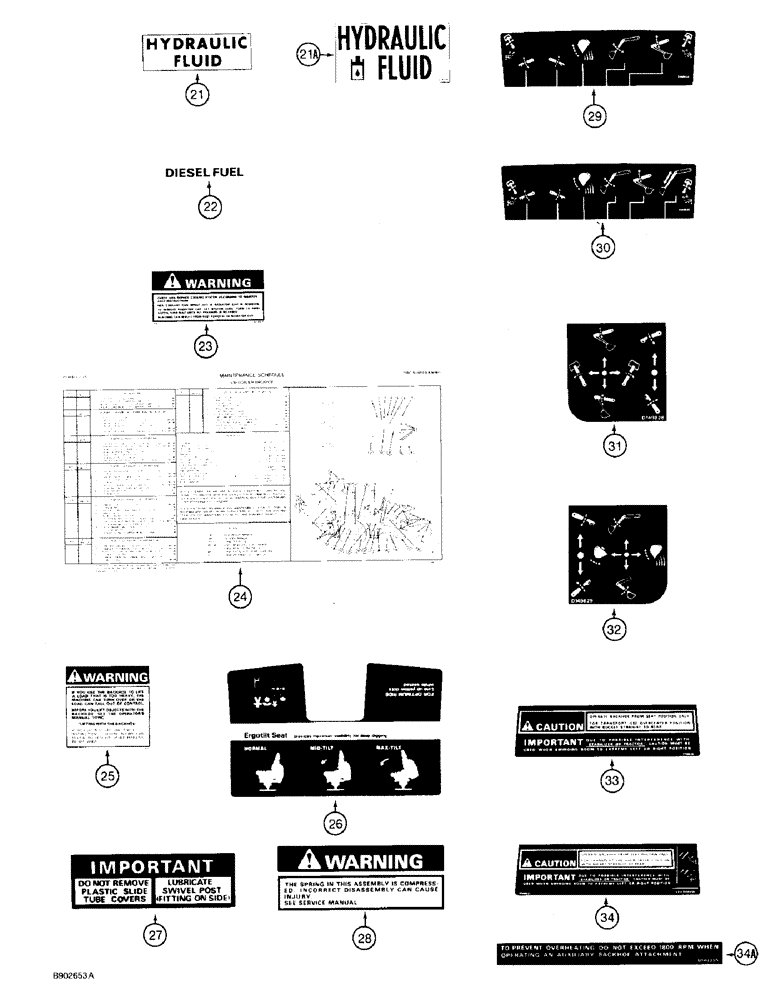

Запчасти Case 590 (9-148) - DECALS (09) - CHASSIS/ATTACHMENTS

21

321-229

DECAL

- Hydraulic Fluid, no longer available, order 321-6376, Ref. 21A

1шт.

21a

321-6376

DECAL

- Hydraulic Fluid

1шт.

22

321-230

DECAL

- Diesel Fuel

1шт.

23

321-6672

DECAL

- Warning, check and service cooling system

1шт.

24

8-80903

DECAL

- Maintenance Schedule, 590, supplied by Parts and Components

1шт.

25

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe lifting load

1-2шт.

26

N14315

DECAL

- seat tilt adjustment, suspension seats only

1шт.

27

N14295

DECAL

- Important, do not remove plastic slide tube covers

1шт.

28

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed

1шт.

29

D149824

DECAL

- standard backhoe control pattern, with foot swing, upper, for models with auxiliary hydraulics for optional rear hydraulic attachments order D149825 decal

1шт.

30

D149825

DECAL

- extendahoe control pattern, with foot swing, upper, or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

31

D149828

DECAL

- standard backhoe control pattern, with hand swing, upper, left-hand side of control console

1шт.

32

D149829

DECAL

- standard backhoe control pattern, with hand swing, upper, right-hand side of control console

1шт.

33

D149826

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for all models with foot swing backhoe controls and standard backhoe models with hand swing

1шт.

34

D149827

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for extendahoe backhoe models with hand swing only

1шт.

34a

D140355

DECAL

- to prevent overheating do not exceed 1800 rpm when operating an auxiliary backhoe attachment, used on models with auxiliary hydraulics for optional rear hydraulic attachments, on side console

1шт.
