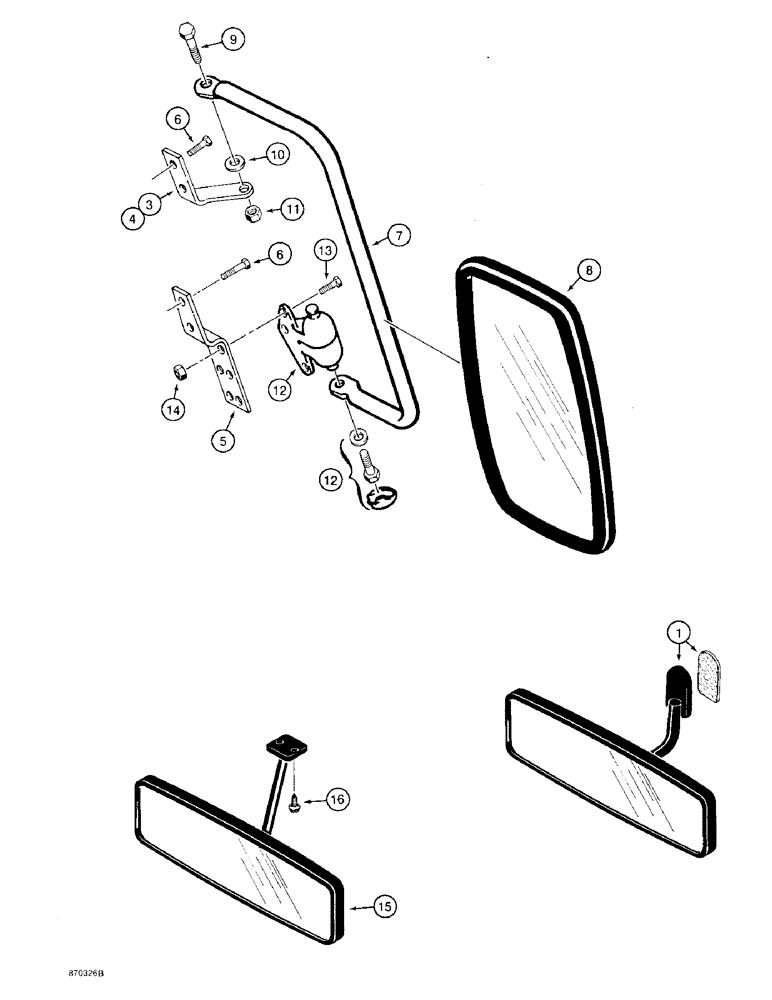

Запчасти Case 590 (9-142) - REAR VIEW MIRROR, ROPS CAB MODELS - INTERIOR (09) - CHASSIS/ATTACHMENTS

1

R54689

MIRROR

- rear view, interior, includes spacer

1шт.

3

D142084

BRACKET

- mirror, right-hand upper, ROPS cab models, exterior

1шт.

4

D142085

BRACKET

- mirror, left-hand upper, not shown, ROPS cab models, exterior

1шт.

5

D142083

BRACKET

- mirror, lower, ROPS cab models, exterior

2шт.

6

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch, ROPS cab models, exterior

8шт.

7

D142086

TUBE

SUPPORT - mirror, ROPS cab models, exterior

2шт.

8

R54682

MIRROR

- rear view, exterior, ROPS cab models, exterior

2шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, ROPS cab models, exterior

2шт.

10

A167037

WASHER

- nylon, ROPS cab models, exterior

2шт.

11

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, ROPS cab models, exterior

2шт.

12

D142144

HINGE

KNUCKLE - support pivot, includes hardware, ROPS cab models, exterior

2шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, ROPS cab models, exterior

6шт.

14

231-1444

NUT,1/4"-20, GB

NUT, LOCK, , ROPS Cab Models, Exterior 1/4"-20, GB

6шт.

15

D138952

MIRROR

- rear view, interior, ROPS canopy models

1шт.

16

281-45510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10 NC x 5/8 inch, (replaces 187-576, 3/8 inch long screw), ROPS canopy models, interior

2шт.
