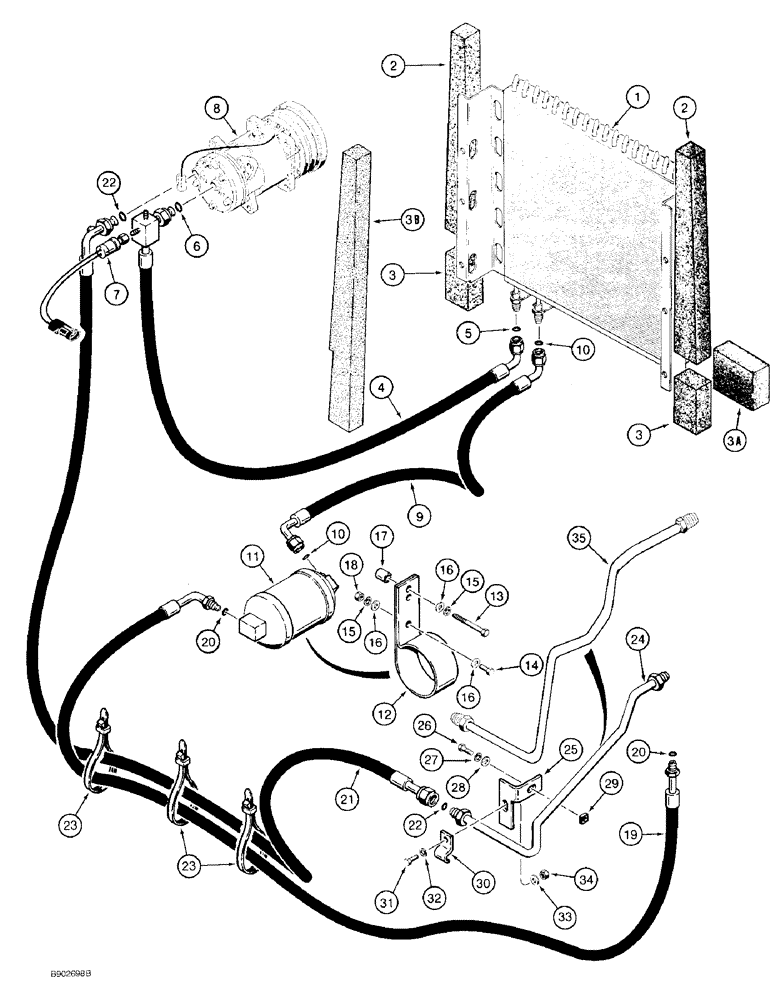

Запчасти Case 590 (9-136) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES (09) - CHASSIS/ATTACHMENTS

1

A189260

CONDENSER

- coil, refrigerant cooler, uses existing oil cooler to radiator hardware

1шт.

2

D140840

FOAM

BAFFLE - base size is 2-3/16 (55) x 17-3/4 inch (450 mm) high, cut from D92228 bulk pad, see below, no longer available, replaced by Ref. 3B, 111996A1

2шт.

3

D140841

FOAM

BAFFLE - base size is 2-3/8 (60) x 3-15/16 inch (100 mm) high, cut from D92228 bulk pad, see below, no longer available, replaced by Ref. 3B, 111996A1

2шт.

3a

D147990

BAFFLE

- base size is 4-3/8 (110) x 3-3/16 inch (80 mm) high, cut from D92228 bulk pad, see below

2шт.

3b

111996A1

BAFFLE

- base size is 3-3/16 (81) x 24-39/64 inch (625 mm) high, cut from D92228 bulk pad, see below

2шт.

4

1977418C1

A/C HOSE

- 1160 mm long, Serial Range: compressor-condenser

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

6

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

1шт.

7

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure cutout, attaches to main engine harness

1шт.

8

97204C1

COMPRESSOR

ASSEMBLY - air conditioning, parts list figure 4-10, see figure 4-14 for mounting

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

8

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

8

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

9

1977419C1

HOSE

- 660 mm long, Serial Range: condenser-receiver-drier

1шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

11

143469C2

RESERVOIR

RECEIVER-DRIER - system

1шт.

12

D145289

SUPPORT

BRACKET - receiver-drier

1шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

17

D123485

SPACER

- bracket

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

1977420C1

HOSE

- 3322 mm long, receiver-drier to cab tube

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

1977417C1

HOSE

- 3050 mm long, compressor to cab base

1шт.

22

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

D92228

BAFFLE

- bulk pad, 900 x 1400 x 38 mm

1шт.

345-44

ADHESIVE

- spray can, for attaching foam pads to metal surfaces (purchase locally)

1шт.

24

D147486

PIPE

TUBE - to cab tube, no longer available, order D150571 tube, Ref. 35

1шт.

25

D144908

SUPPORT

BRACKET - air conditioner tube

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

29

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

1шт.

30

D143430

CLAMP

- tube

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

32

492-11038

LOCK WASHER,3/8"

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

D150571

PIPE

TUBE - to cab tube

1шт.
