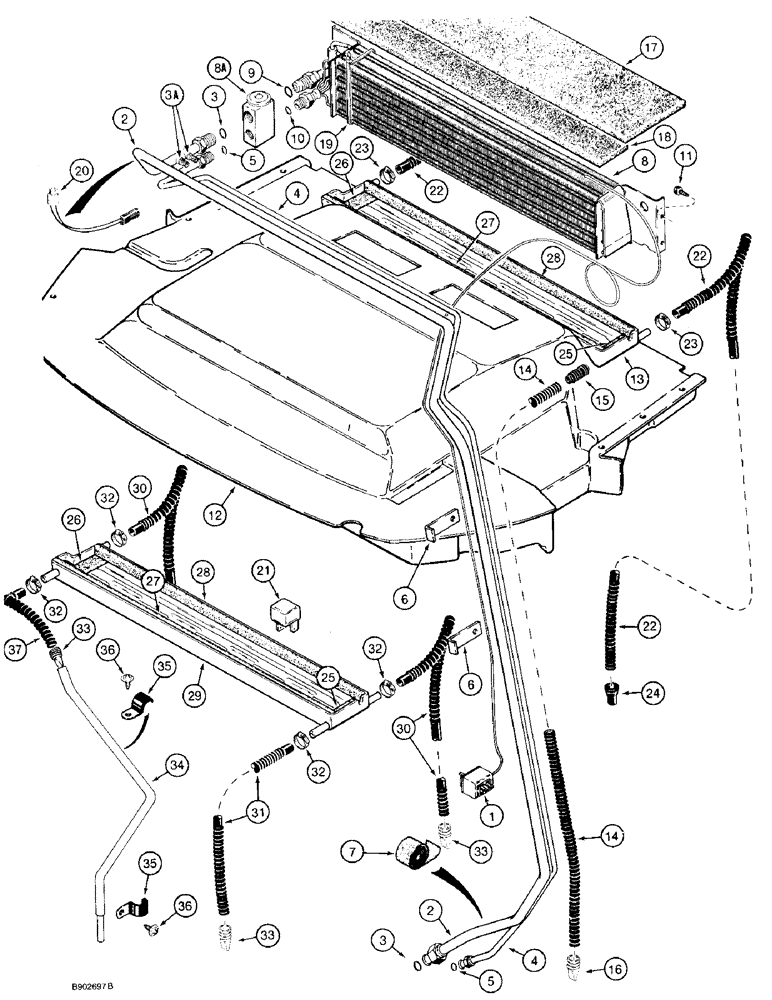

Запчасти Case 590 (9-134) - CAB AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

1340287C1

SWITCH

- temperature control, air conditioning

1шт.

2

1977421C1

TUBE

- suction, Includes: Ref. 3 and 3A

1шт.

3

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

2шт.

3a

1250594C1

CORE

VALVE - internal

2шт.

4

1977422C1

TUBE

- pressure, Includes: Ref. 5

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

6

R53634

SHIN

CLAMP - bracket, mounts to ROPS post stud with existing nut

2шт.

7

1954475C1

ROLL

TAPE - cork, insulating, bulk roll, 360 inch (9144 mm) long

1шт.

8

1340493C3

EVAPORATOR

CORE - evaporator, Includes: Ref. 8A - 10

1шт.

8a

98370C3

VALVE

- evaporator

1шт.

9

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Upper, core

1шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Lower core

1шт.

11

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

12

REF

INSTRUCTION

HEADLINER - rear section, see figure 9-124

1шт.

13

1344430C1

HOUSING

PAN - condensation drain, purchase seals separately, Ref. 25-28, no longer available, order 1990990C1 pan, Ref. 29

1шт.

14

1276252C1

HOSE ASSY.

HOSE - 90 inch (2286 mm) long, cut to required length from 198091C1 bulk hose, rear drain, 1344430C1 pan, Ref. 13, if used

2шт.

15

1250522C3

FITTING

TUBE - adapter, drain, if used

2шт.

16

109239C2

CHECK VALVE

VALVE, CHECK, Rubber, Rear drain hose

2шт.

17

1338301C1

SEAL

SEAL - 13 x 80 x 825 mm, heater and air conditioner cores, cut from 1340329C1 bulk

1шт.

18

1338301C1

SEAL

SEAL - 13 x 80 x 825 mm, core, cut from 1340329C1 bulk

1шт.

19

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - cable lock, 28-1/4 inch

2шт.

20

92153C1

SWITCH

- low pressure

1шт.

21

146461C1

RELAY

- 30 ampere, connects to cab harness

1шт.

22

F45410

TUBE

HOSE - 5/8 (15) O.D. x 110 inch (2794 mm) long, front drain, 1344430C1 pan, Ref. 13, if used, cut from F64508, see below

2шт.

23

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj., 1/4 - 5/8 inch diameter

2шт.

24

F44790

VALVE

END - rubber, item 22 front drain hose, if used

2шт.

25

1987091C2

FOAM

SEAL - 55 x 150 x 9 mm, right-hand, cut from 1987092C2 bulk

1шт.

26

1987092C2

FOAM

SEAL - foam, adhesive back, pan, left-hand

1шт.

27

1987096C1

PLATE

(Seal), 9 x 19 x 765 mm, Pan, Rear, Cut from 98355C1 bulk

1шт.

28

1987097C1

PANEL

SEAL - 9 x 19 x 735 mm, pan, front, cut from 98355C1 bulk

1шт.

29

1990990C1

HOUSING

PAN - condensation drain, includes seals, Ref. 25-28

1шт.

30

1990983C1

HOSE,11.00 mm ID, 13.30 mm ID x 2794.00 mm

Front drain, 1990990C1 Pan 11.00 mm ID, 13.30 mm ID x 2794.00 mm

2шт.

31

1990999C1

HOSE,11.00 mm ID, 13.30 mm ID x 2286.00 mm

Rear drain, 1990990C1 Pan, Order 1990983C1 hose (Ref. 30) and cut to required length 11.00 mm ID, 13.30 mm ID x 2286.00 mm

1-2шт.

32

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj., 1/4 - 5/8 inch diameter

4шт.

33

109239C2

CHECK VALVE

VALVE, CHECK, Rubber, Drain hose

4шт.

34

112468A1

TUBE

- drain, left-hand rear, if used, replaces Ref. 31 hose on some models

1шт.

35

112726A1

CLIP

CLAMP - drain tube, if used

2шт.

36

113319A1

CAPTIVE WASHER SCREW

SCREW - oval Phillips, with washer, self-tapping, No. 10-16 x 3/4 inch, if used

1шт.

37

112506A1

A/C HOSE,11.00 mm ID, 13.30 mm ID x 1778.00 mm

- Drain, LH rear, Cut to required length from F64508 hose, See below, If used 11.00 mm ID, 13.30 mm ID x 1778.00 mm

1шт.

98355C1

FOAM INSULATION

SEAL - 32 x 163 x 810 mm, foam, adhesive back, bulk

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- 11/16 (17) x 1 ft long, bulk, drain

1шт.

1340329C1

SEAL

- 68 ft, foam, adhesive back, bulk

1шт.

1987092C2

FOAM

SEAL - 65 x 95 x 150 x 9 mm, foam, adhesive back

1шт.

F64508

HOSE,0.43" ID x 100' Bulk

- front drain 0.43" ID x 100' Bulk

1шт.
