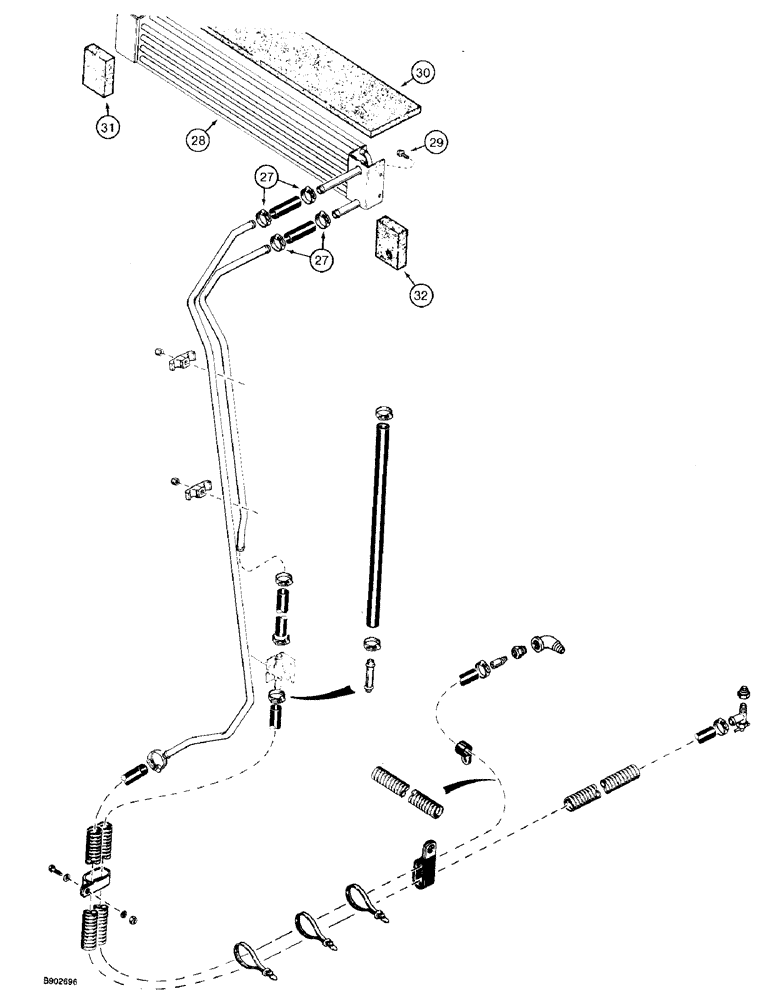

Запчасти Case 590 (9-132) - CAB HEATER (CONT) (09) - CHASSIS/ATTACHMENTS

27

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Special #24

4шт.

28

1338312C2

HEATER

CORE - heater, mounts to cab frame

1шт.

29

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

30

1338301C1

SEAL

SEAL - 1/2 (13) x 3-5/32 (80) x 32-1/2 inch (825 mm), heater and air conditioner, order 1340329C1 bulk seal and cut to required size

1шт.

31

1987093C1

STRIP

SEAL - 1 (25) x 2-3/4 (70) x 4 inch (100 mm), heater core, left-hand, cut from 98355C1 bulk

1шт.

32

1987094C1

FOAM

SEAL - 2-3/4 (70) x 4 (100) x 1 inch (25 mm), heater core, right-hand, cut from 98355C1 bulk

1шт.

98355C1

FOAM INSULATION

SEAL - 1-1/4 (32) x 6-13/32 (163) x 31-7/8 inch (810 mm), foam, adhesive back, bulk

1шт.

1340329C1

SEAL

- 68 ft, foam, adhesive back, bulk

1шт.
