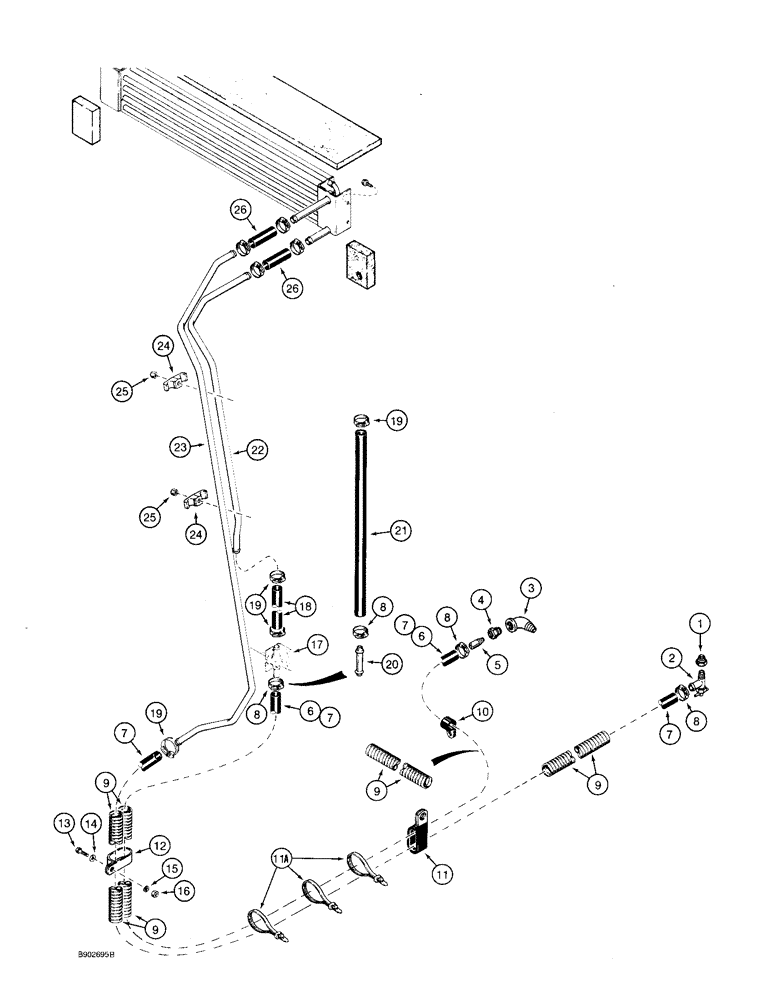

Запчасти Case 590 (9-130) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female, replaces existing plugs

1шт.

2

301803R1

SHUT-OFF VALVE

VALVE - shutoff, right-hand side of engine, at water pump, replaces A16764

1шт.

3

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degree, 1/2 inch PT

1шт.

4

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

5

L17985

FITTING,3/8" - 18 NPT

NIPPLE - 3/8 inch NPT, left-hand side of engine

1шт.

6

D136068

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HEATER HOSE - 104-1/16" (2643 mm), Cut to required length from 97252CX bulk hose, See below, LH, Mounts to heater temperature control valve, No longer used, Order D132977 hose, Ref. 7 0.63" ID, SAE 20R3 Class D1

1шт.

1301342C1 tube and R54969 hose (items 20 and 21) are used in production with D136068 104 inch hose (Ref. 6) for ease of pod assembly; however, Ref. 20 and 21 are not required for service if Ref. 6 hose is cut to 146 inches instead of 104-1/16 inches.

1шт.

7

D132977

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HEATER HOSE - RH (112-21/64" (2853 mm), Cut to required length from 97252CX bulk hose, See below 0.63" ID, SAE 20R3 Class D1

1-2шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Heater hoses #10, 0.56/1.06 Type F Worm

4шт.

9

D134399

LOOM

SLEEVE - hose guard, replaces D132982

4шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

LH hose, Uses existing mounting hardware 1", Insul, 3/8" Bolt

1шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hose

1шт.

11a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

12

D132978

CLAMP

- hose, at right-hand console

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

R52483

VALVE

- temperature control, heater, see figure 9-118 for mounting

1шт.

18

R54968

HEATER HOSE,15.50 mm ID x 205.00 mm

- Cut to required length from 97252CX bulk hose, See below, Heater temperature control valve to heater inlet tube 15.50 mm ID x 205.00 mm

1шт.

19

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Special (11/16 - 1-1/4" dia.) #24

4шт.

20

1301342C1

FITTING

TUBE - 5/8 (16) ID x 22 inch (559 mm) long, used in production, not required for service

1шт.

1301342C1 tube and R54969 hose (items 20 and 21) are used in production with D136068 104 inch hose (Ref. 6) for ease of pod assembly; however, Ref. 20 and 21 are not required for service if Ref. 6 hose is cut to 146 inches instead of 104-1/16 inches.

1шт.

21

R54969

HEATER HOSE,15.50mm ID x 292mm L

Cut to Required Length from Bulk Hose, Used in Production, Not Required for Service 15.50 mm ID x 292.00 mm

1шт.

1301342C1 tube and R54969 hose (items 20 and 21) are used in production with D136068 104 inch hose (Ref. 6) for ease of pod assembly; however, Ref. 20 and 21 are not required for service if Ref. 6 hose is cut to 146 inches instead of 104-1/16 inches.

1шт.

22

R52504

HEATER TUBE,15.88 mm OD

TUBE - heater inlet

1шт.

23

R52505

HEATER TUBE,15.88 mm OD

TUBE - heater outlet

1шт.

24

D120613

CLAMP,20mm ID

- plastic, mounts on stud on ROPS post, replaces R52657

2шт.

25

131-206

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

2шт.

26

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

- Cut to required length from bulk hose 97252CX, See below, Heater core to tubes 15.50 mm ID x 70.00 mm

2шт.

97252CX

HOSE

- bulk, 5/8 (16) ID x 50 ft (15240 mm) long, sold by the foot

1шт.
