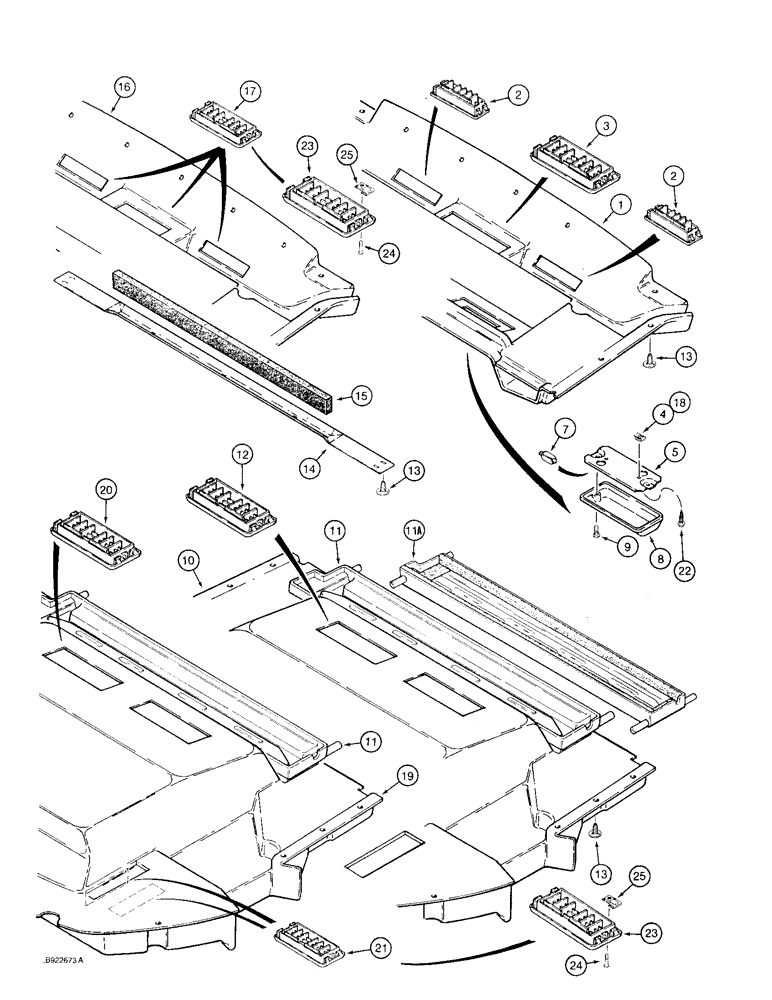

Запчасти Case 590 (9-124) - CAB HEADLINER, LOUVERS, AND DOME LAMPS (09) - CHASSIS/ATTACHMENTS

1987099C1

ROOF

HEADLINER ASSEMBLY - front section, with two sizes of louvers

1шт.

NSS

NOT SOLD SEPARAT

prior to cab serial number JAB0023786

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - front section, Includes: Ref. 1 - 4

1шт.

2

R54201

GUARD

LOUVER - front defrost

2шт.

3

L109555

GUARD

LOUVER - main, front headliner

3шт.

4

131-861

SPRING NUT,Tinn, U, #10-24

No threads, Cab dome lamp retaining Tinn, U, #10-24

2шт.

R53755

LIGHT ASSY.,12V

LAMP ASSEMBLY - dome, 12 volt, front headliner, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

BASE - dome lamp

1шт.

7

N14466

BULB

- dome lamp

1шт.

8

N14465

LENS

- dome lamp

1шт.

9

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch, base to lens

2шт.

10

R54009

LINING

HEADLINER - rear section, uses 4 louvers, Ref. 12, prior to cab serial number JAB0023786, no longer available, order 108822A1 headliner, see Ref. 19-21 below

1шт.

11

1344430C1

HOUSING

PAN - condensation, purchase seals separately, see figure 9-134, Ref. 25 - 28 for foam seals, no longer available, order 1990990C1 pan, Ref. 11A

1шт.

11a

1990990C1

HOUSING

PAN - condensation, includes Ref. 25-28 seals on figure 9-136

1шт.

12

L109555

GUARD

LOUVER - recirculation and rear defrost, R54009 rear headliner

4шт.

13

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - with washer (order F64315 washer and 265-16512 screw), headliner to cab frame

26шт.

14

1981928C2

SUPPORT

- headliner

1шт.

15

1987095C1

STRIP

SEAL - 19 x 13 x 600 mm, adhesive backed, cut from 98355C1 bulk seal

1шт.

109340A1

ROOF

HEADLINER ASSEMBLY - front section, with same size louvers, cab serial number JAB0023786 and after, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

HEADLINER - front section

1шт.

17

1958752C1

VENT

LOUVER - headliner, snap-in, may be replaced with screw-in louver, Ref. 23-25

5шт.

18

131-861

SPRING NUT,Tinn, U, #10-24

Cab dome lamp retaining Tinn, U, #10-24

2шт.

108822A1

ROOF LINING

HEADLINER ASSEMBLY - rear section, with 6 louvers, cab serial number JAB0023786 and after, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

HEADLINER - rear section

1шт.

20

L109555

GUARD

LOUVER - headliner

2шт.

21

1958752C1

VENT

LOUVER - headliner, snap-in, may be replaced with screw-in louver, Ref. 23-25

4шт.

22

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

- hex washer head, self-tapping, No. 10-24 x 3/4 inch

2шт.

23

125688A1

DIFFUSER

LOUVER - headliner, screw-in, if used

9шт.

24

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

If used Cross Pan Hd, #6-32 x 3/4"

18шт.

25

125749A1

SPRING NUT

- J-type, No. 6 NC, if used

18шт.

98355C1

FOAM INSULATION

SEAL - 32 x 163 x 810 mm, foam, adhesive backed

1шт.
