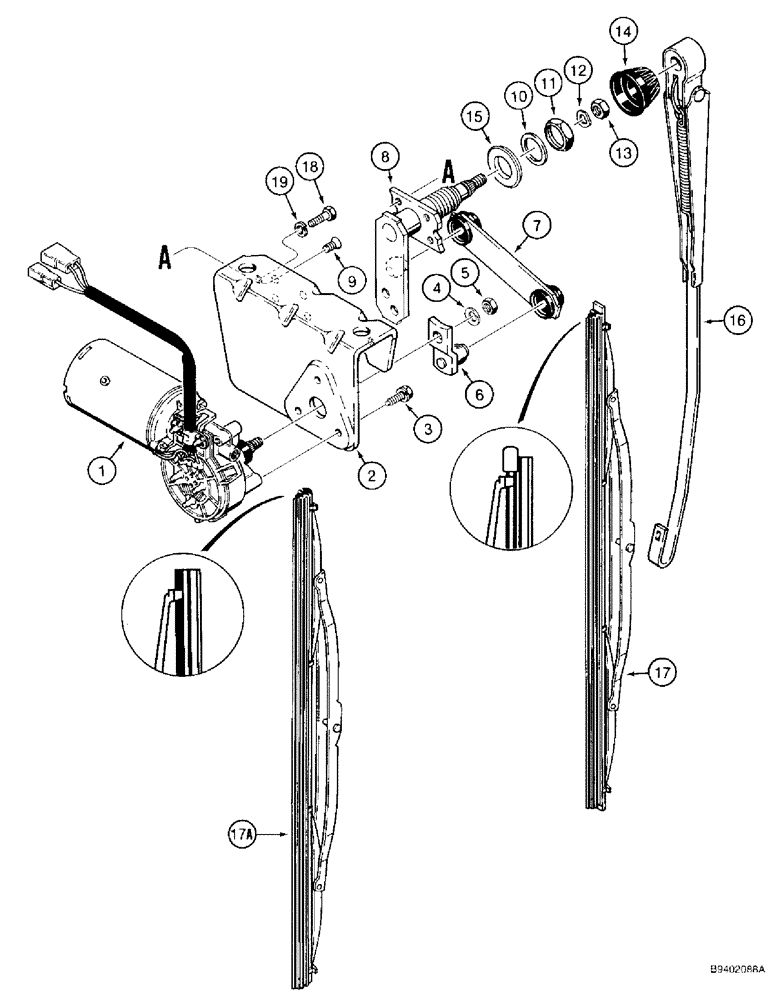

Запчасти Case 590 (9-120) - CAB FRONT WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

A186171

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, front windshield wiper, 12 volt, Includes: Ref. 1 - 9

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR - 12 volt, windshield wiper

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW - with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

SPRING - Belleville, washer

1шт.

5

L112090

NUT

- hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N8358

LINK

LINK - wiper

1шт.

8

N14112

SHAFT

- pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

L112088

WASHER

- special, large, shaft

1шт.

11

L112087

NUT

- special, large, shaft

1шт.

12

L112089

WASHER

- wave, special, shaft end

1шт.

13

L112090

NUT

- hex, special, 8 mm, shaft end

1шт.

14

L112081

CAP

- pivot shaft end

1шт.

15

R54241

SPACER

- pivot shaft (replaces R54504)

1шт.

16

D128745

WIPER ARM

ARM - windshield wiper, 22-7/16 inch (570 mm) long, complete

1шт.

17

A187909

WIPER BLADE

BLADE - windshield wiper, complete, no longer available, for complete blade, order Ref. 17A, 132024A1, for blade only, order 1983335C1 blade refill, shown below

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.

17a

132024A1

WIPER BLADE

BLADE - windshield wiper, complete, for blade only, order 132025A1 blade refill, shown below

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

2шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1983335C1

WIPER

BLADE - rubber, 500 mm long, refill for A187909 complete blade

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.

132025A1

WIPER BLADE

BLADE - rubber, 500 mm long, refill for 132024A1 complete blade

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.
