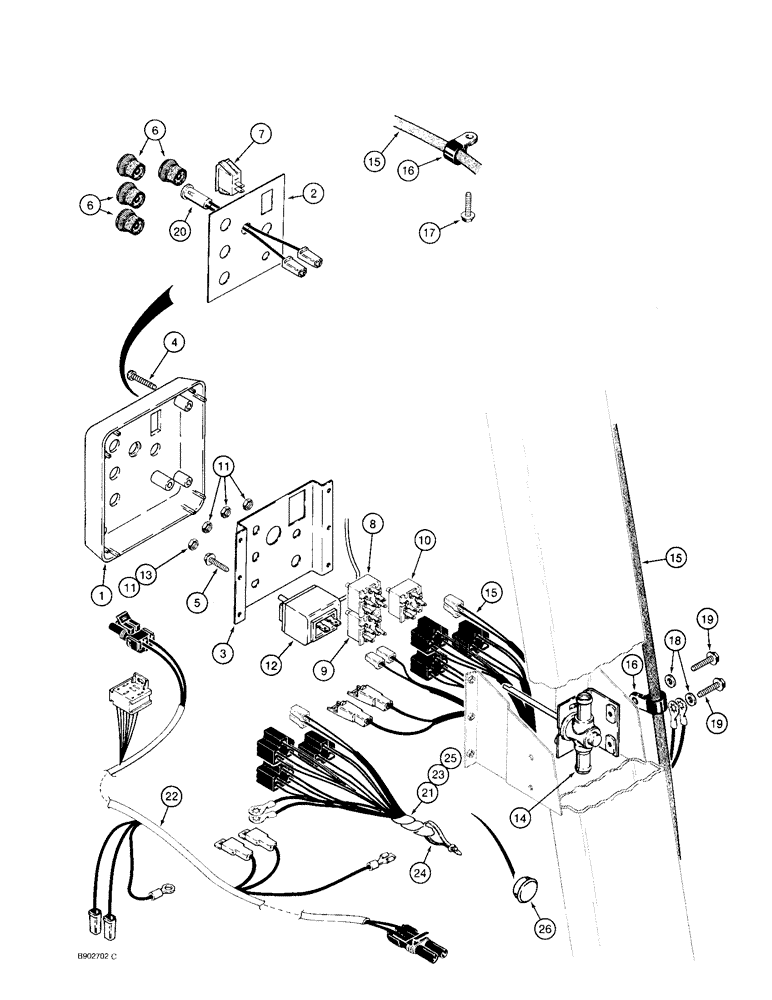

Запчасти Case 590 (9-118) - CAB CONTROL PANEL AND WIRING (09) - CHASSIS/ATTACHMENTS

1

1343898C1

COVER

PANEL - cab control, mounts on right-hand ROPS post

1шт.

2

REF

INSTRUCTION

DECAL - instrument panel, cab control, see figure 9-150, Ref. 45 or 46, for decal

1шт.

3

R52436

BRACKET

- switch support

1шт.

4

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

- self-tapping, Fillister head, No. 10 NC x 1-1/4 inch

4шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

- self-tapping, hex washer head, No. 10 NC x 3/4 inch

2шт.

6

111282C1

KNOB

- switch, front and rear wiper, heater, blower, and air conditioner

4-5шт.

7

F45393

SWITCH

- cab lamp, dome

1шт.

8

A42622

SWITCH

- blower

1шт.

9

R52440

SWITCH

- rear wiper

1шт.

10

R52415

ROTARY SWITCH

- front wiper

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining, switch

3-4шт.

12

1340287C1

SWITCH

- temperature control, air conditioning

1шт.

13

425-157

JAM NUT,Jam, 7/16"-20, G5

If used Jam, 7/16"-20, G5

1шт.

14

R52483

VALVE

- temperature control, heater

1шт.

15

1987344C2

HARNESS

- cab, main, includes air conditioning connections, replaces 1987344C1, Serial Range: -JJG0206513

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter, harness

2шт.

17

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch, Lower harness clamp uses existing heater temperature control valve mounting bolt

1шт.

18

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

19

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch, Mounts heater temperature control valve to ROPS post

2шт.

20

1964672C1

LIGHT

LAMP - amber, 14 volt, indicator, air conditioning

1шт.

21

103844A1

HARNESS

- cab, main, without air conditioning connections, used with 1987521C1 air conditioning harness on models with air conditioning, on models with plastic roof cap, Start Serial: JJG0206513

1шт.

22

1987521C1

HARNESS

- air conditioning, cab, used with 103844A1 or 108961A1 cab harness, Start Serial: JJG0206513

1шт.

24

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , 108961A1 harness, If used .098" x 8"

4шт.

25

133526A1

HARNESS

- cab, main, without tapered rubber grommets, used with (4) Ref. 26, 353-498 bushings

1шт.

26

353-498

BUSHING

- snap, 11/16 ID, used as a grommet, cab lamp mounting bracket

4шт.
