Запчасти Case 590 (9-110) - LEFT-HAND AND RIGHT-HAND CAB DOORS - EXTERIOR (09) - CHASSIS/ATTACHMENTS

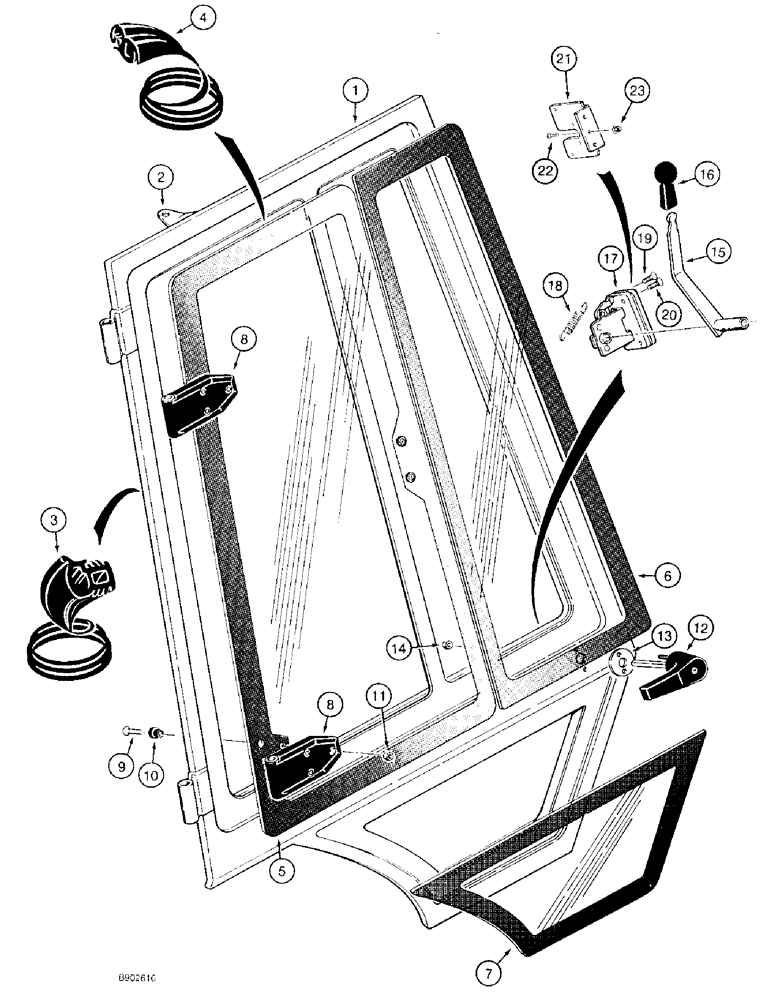

Схема запчастей Case 590 - (9-110) - LEFT-HAND AND RIGHT-HAND CAB DOORS - EXTERIOR (09) - CHASSIS/ATTACHMENTS
23
2
19
16
10
7
15
5
20
13
21
12
3
8
22
9
6
14
4
8
1
17
18
11

Артикул

Название

Примечание

Количество

1

97401C2

DOOR

FRAME - right-hand door (replaces 97401C1 frame), Includes: Ref. 2

1шт.

1a

97402C2

DOOR

FRAME - left-hand door, not shown (replaces 97402C1 frame), Includes: Ref. 2

1шт.

2

R53562

BRACKET

- cable, welded to left-hand or right-hand door frame

1шт.

3

R52936

SEAL

- 181-1/2 inch (4610 mm) long, bulb type, left-hand and right-hand door frames

2шт.

4

R53444

SEAL,2688mm L

- 105-7/8 inch (2689 mm) long, bulb type, left-hand and right-hand window frames

2шт.

5

R52882

GLASS

- right-hand door, rear, window, tinted

1шт.

5a

R52881

GLASS

- left-hand door, rear, window, tinted, not shown

1шт.

6

R52880

GLASS

- right-hand door, front, tinted

1шт.

6a

R52879

GLASS

- left-hand door, front, tinted, not shown

1шт.

7

R52884

GLASS

- right-hand door, lower, tinted

1шт.

7a

R52883

GLASS

- left-hand door, lower, tinted, not shown

1шт.

8

R52917

HINGE

- glass, left-hand and right-hand door window

4шт.

9

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

- machine, oval head Phillips, No. 10 NC x 3/4 inch, left-hand and right-hand door window hinge

12шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- nylon, black, glass to hinge, left-hand and right-hand door window hinge

12шт.

11

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, No. 10 NC, Teflon coated, left-hand and right-hand door window hinge

12шт.

12

R53001

HANDLE

- right-hand door, outer

1шт.

12a

R53002

HANDLE

- left-hand door, outer, not shown

1шт.

13

F64342

GASKET,1.6mm Thk

- door handle, left-hand and right-hand

2шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, , LH and RH door handles #10-24, GB

4шт.

15

R54625

LEVER

- inner left-hand and right-hand door latch handle

2шт.

16

D135387

GRIP

KNOB - lever, inner door latch

2шт.

17

R55000

LATCH ASSY.

LATCH ASSEMBLY - door, right-hand, rotary

1шт.

17a

R55001

LATCH ASSY.

LATCH ASSEMBLY - door, left-hand, rotary, not shown, Includes: Ref. 18

1шт.

18

A180163

SPRING

- extension, left-hand or right-hand door latch

1шт.

19

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch, left-hand and right-hand door latch

4шт.

20

143-101

SCREW,Cross Rec Flat Hd, Csk, 1/4" - 20 x 1", W/ Nylon Insert

LH and RH door latch Cross Flat Hd, 1/4"-20 x 1"

8шт.

21

1977401C1

SUPPORT

BRACKET - latch, right-hand rotary

1шт.

21a

1977402C1

SUPPORT

BRACKET - latch, left-hand rotary, not shown

1шт.

22

473-13112

SCREW,Slotted Flat Hd, 5/16"-18 x 3/4"

- machine, flat head slotted, 5/16 NC x 3/4 inch

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

Выбрано товаров: 30
