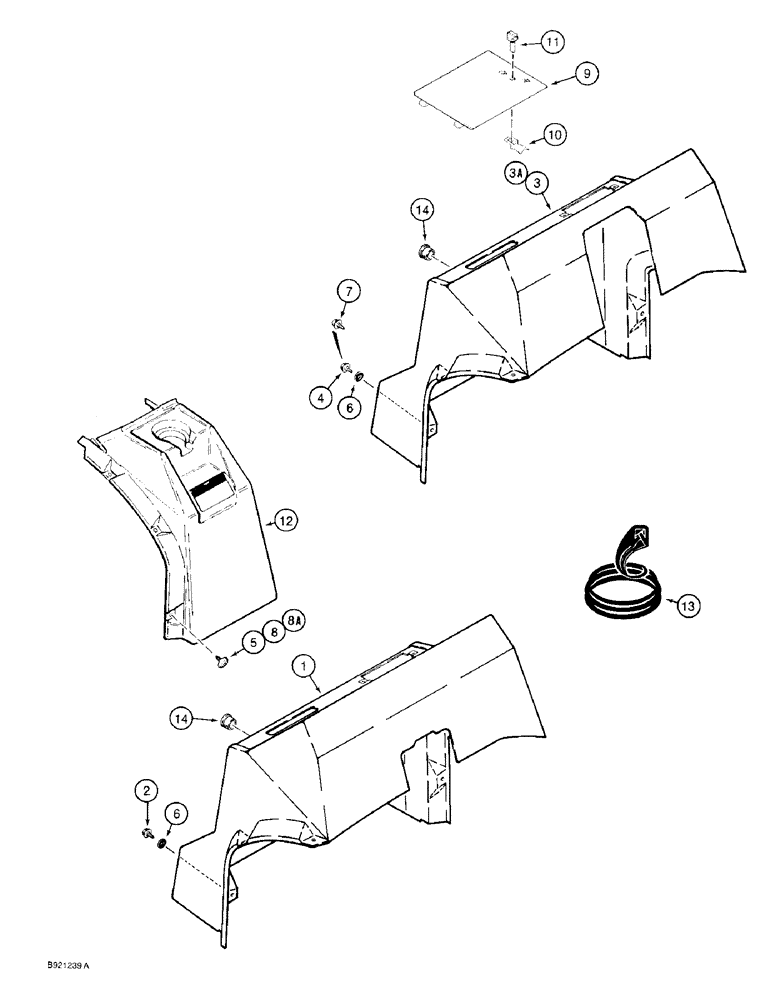

Запчасти Case 590 (9-108) - LEFT-HAND AND RIGHT-HAND CONSOLES, FOR ROPS CAB OR CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

117647A1

BRACKET

CONSOLE - side instrument, right-hand, ROPS canopy models only, (replaces D147457 or 102871A1 consoles)

1шт.

2

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, (replaces 187-575 screw)

6шт.

3

102873A1

BRACKET

CONSOLE - side instrument, right-hand, ROPS cab models only, (replaces D147459 console), used on models without seat alarm

1шт.

3a

117648A1

BRACKET

CONSOLE - side instrument, right-hand, ROPS cab models only, used on models with seat alarm

1шт.

4

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, (replaces 187-575 screw)

6шт.

5

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, Phillips, with washer, No. 10-16 x 3/4 inch (order F64315 washer and 265-16512 screw)

6шт.

6

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

6шт.

7

281-18716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

SCREW - self-tapping, hex washer head, 1/4 NC x 1 inch, used on models with optional deluxe interior

6шт.

8

112867A1

SCREW - self-tapping, oval Phillips, with washer, No. 10-16 x 1 inch, used on models with optional deluxe interior, (replaces F45174 screw), if used

6шт.

8a

113319A1

CAPTIVE WASHER SCREW

SCREW - self-tapping, oval Phillips, with washer, No. 10-16 x 3/4 inch, if used

6шт.

9

D145601

COVER

- fuse box, mounts in right-hand side instrument console, cab or canopy models, see figure 9-150 for fuse location decal

1шт.

10

D145206

CLASP

PAWL - knob retainer

1шт.

11

D145207

BUTTON

KNOB - lock

1шт.

12

D143491

SUPPORT

CONSOLE - left-hand side, with cup holder, cab models only, includes D150899 decal, Ref. 44, shown on figure 9-150

1шт.

13

D33500

LINING

SEAL - edge, 7 inch, side console, cut to required length from bulk seal F42827, see below

1шт.

14

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch (30 mm), if used

1шт.

F42827

TRIM,2946.4mm L

EDGE - trim, 116 inch (2946 mm) long

1шт.
