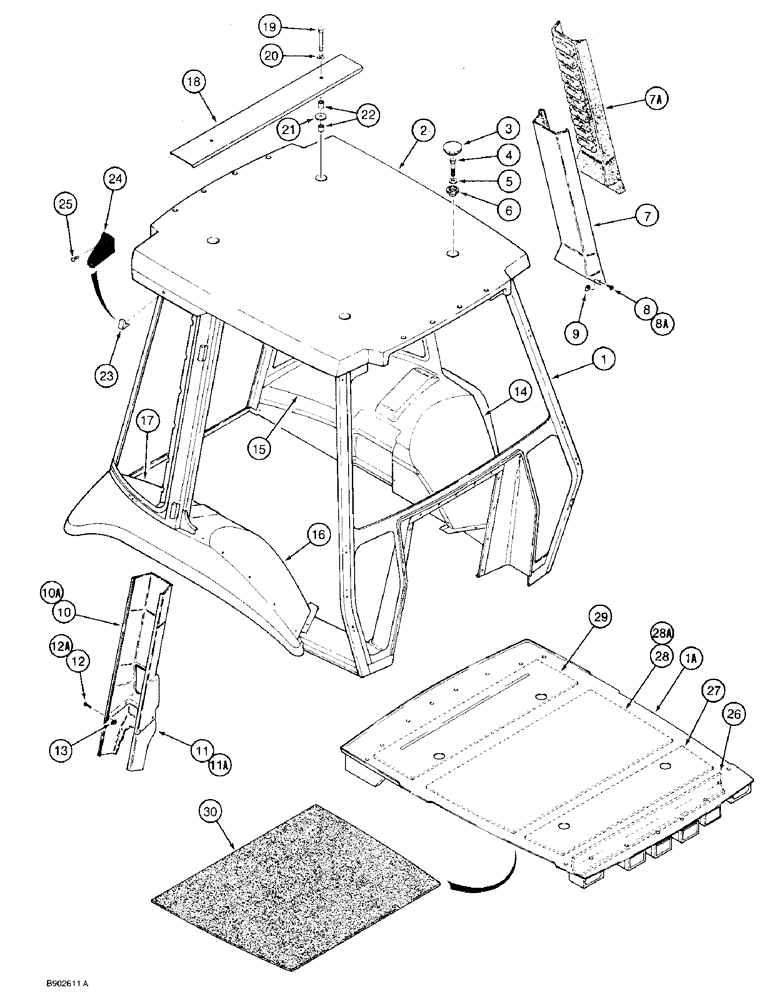

Запчасти Case 590 (9-106) - CAB FRAME, ROOF CAP, COVERS, AND INSULATION (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, with plastic roof cap, Serial Range: -JAB0023786

1шт.

NSS Frame, this is part of D104066 complete cab which is no longer available through wholegoods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up cab complete this frame will fit the 580K-I, 580K-III, 580 super K and 590. Ref. NA bulletin 6-1995 for components

1шт.

1a

NSS

NOT SOLD SEPARAT

FRAME - cab, without plastic roof cap, Start Serial: JAB0023786

1шт.

2

R52559

COVER

CAP - roof, plastic, if used

1шт.

3

R54262

PLUG

- 2-5/64 inch (53 mm) diameter, cap mounting holes

4шт.

4

113-2460

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 8

Locking, 1/2"-13 x 2 1/4", G8

4шт.

5

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

6

1344187C1

SPACER

- special

4шт.

7

97293C1

COVER

- plastic, left-hand post, if used

1шт.

7a

D138178

PANEL

COVER - padded, left-hand post, optional deluxe interior

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - with washer (order F64315 washer and 265-16512 screw)

2шт.

8a

F45174

SCREW,#10 - 16 x 3/4"

- with washer (order F64315 washer and 265-16512 screw), used with optional deluxe interior covers

2шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

10

R53851

COVER

- plastic, right-hand post, upper

1шт.

10a

D138179

PANEL

COVER - padded, right-hand post, upper, optional deluxe interior

1шт.

11

97292C1

COVER

- plastic, right-hand post, lower

1шт.

11a

D138180

PANEL

COVER - padded, right-hand post, lower, optional deluxe interior

1шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - with washer (order F64315 washer and 265-16512 screw)

4шт.

12a

F45174

SCREW,#10 - 16 x 3/4"

- with washer (order F64315 washer and 265-16512 screw), used with optional deluxe interior covers

4шт.

13

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

14

D138181

LINING

COVER - padded, left-hand front fender, optional deluxe interior

1шт.

15

D138182

LINING

COVER - padded, left-hand rear fender, optional deluxe interior

1шт.

16

D138183

LINING

COVER - padded, right-hand front fender, optional deluxe interior

1шт.

17

D138184

LINING

COVER - padded, right-hand rear fender, optional deluxe interior

1шт.

18

97377C1

CHANNEL

PLATE - mounting, used with Ref. 19 - 22, used on cab models with rotating beacon, if used

1шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, if used

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

21

195-2205

WASHER,17/32" x 2" x .238"

- flat, 17/32 x 2 x 1/4 inch, if used

2шт.

22

D48528

SPACER

- mounting plate, if used

4шт.

23

1977504C1

HITCH DAMPER

BUMPER - rubber, door stop, models with plastic roof cap, if used

2шт.

24

119731A1

STOP

BUMPER - rubber door stop, models without plastic roof cap, if used, replaces R53632

2шт.

25

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

Used with Ref. 24 bumper, if used Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

26

108798A1

INSULATOR

PAD - 165 x 813 x 1.6 mm, insulation, blower support, front, vertical, if used

1шт.

Used on cab S/N JAB0023786 and after

1шт.

27

108794A1

INSULATOR

PAD - 152 x 813 x 6.4 mm, insulation, front, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

28

108795A1

INSULATOR

PAD - 254 x 813 x 6.4 mm, insulation, center, models with heat and air conditioning, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

28a

108796A1

PANEL

PAD - 343 x 813 x 6.4 mm, insulation, center, models with heat only, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

29

108797A1

PANEL

PAD - 200 x 813 x 6.4 mm, insulation, rear, may need to trim the 200 mm dimension to 190 mm on some models, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

30

108794A2

ISOLATOR

PAD - 577 x 813 x 6.4 mm, insulation, used with Ref. 26 and 29, replaces Ref. 27 thru 28A on some models, if used

1шт.

Used on cab S/N JAB0023786 and after

1шт.
