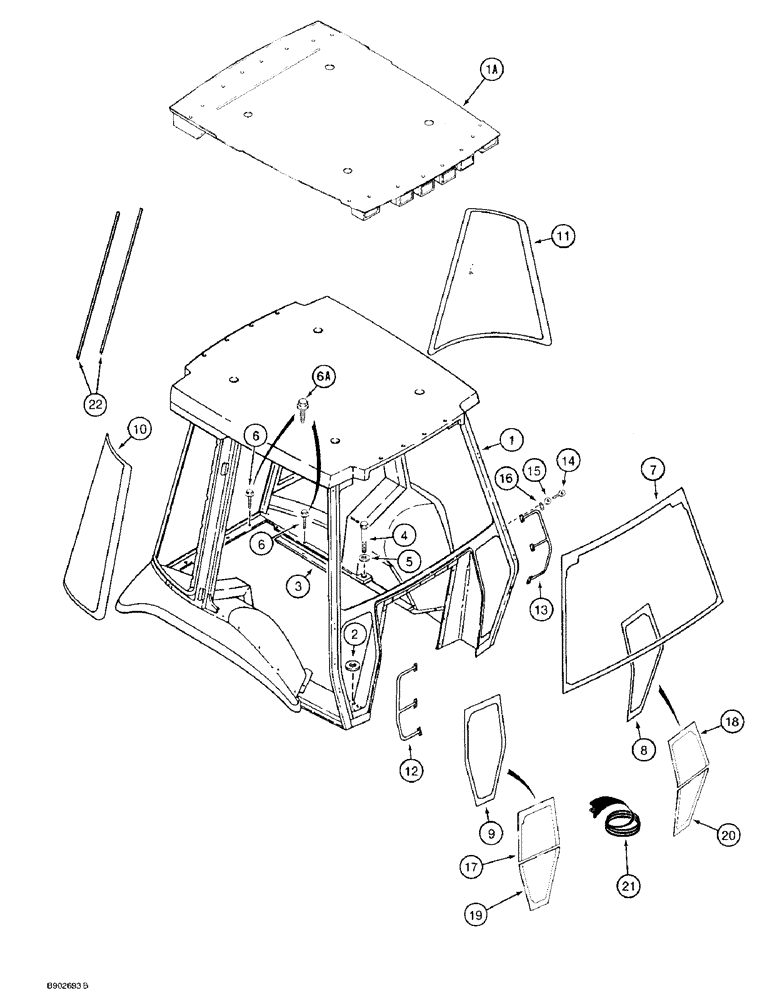

Запчасти Case 590 (9-104) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D104066

CAB

ROPS, complete, operators, with plastic roof cap, machinery item, no longer available thru whole goods, subs to 108762A1, order from Machinery Price List, parts list figures 9-104 thru 9-138

1шт.

Dealer needs to order the P/N 108762A1 Frame and all other primes seperately and biuld up Cab complete, this frame will fit 580K-I, 580K-III, 580 SUPER K AND 590.

1шт.

Refer to NA Bulletin 6-1995 for components.

1шт.

1a

REF

INSTRUCTION

CAB - ROPS, operators, without plastic roof cap, machinery item, order from Machinery Price List, parts list figures 9-104 thru 9-138 order from Machinery Price List, parts list figures 9-104 thru 9-138

1шт.

2

495-81259

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 1/4 inch, see figure 9-80, Ref. 10 and 11, for bolt and insulator 10 and 11, for bolt and insulator

2шт.

3

D90936

BAND

SEAL - 112 inch long, adhesive one side, cut from L35819 bulk, rear fender to operator compartment frame

2шт.

4

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

- hex, 7/8 NC x 3-1/4 inch, grade 8

4шт.

5

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

4шт.

6

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch, (replaces D141589), if used

11шт.

6a

112865A1

SCREW

- pointed, self-aligning, if used

11шт.

7

97290C1

GLASS

- front windshield

1шт.

8

D131289

GLASS

- lower left-hand front window, one-piece, if used

1шт.

9

D131288

GLASS

- lower right-hand front window, one-piece, if used

1шт.

10

D126204

GLASS

- right-hand rear quarter panel window

1шт.

11

D126205

GLASS

- left-hand rear quarter panel window

1шт.

12

R53960

HANDLE

- grab, right-hand, if used

1шт.

The grab handles are welded to the cab on some models. There is not a service replacement for those handles.

1шт.

13

R53961

HANDLE

- grab, left-hand, if used

1шт.

The grab handles are welded to the cab on some models. There is not a service replacement for those handles.

1шт.

14

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT - hex socket, 1/4 NC x 7/8 inch, grade 8, if used

12шт.

15

195-516

WASHER,#12

- flat, 1/4 x 9/16 x 1/16 inch, if used

12шт.

16

1971368C1

PLATE ASSY.

PLATE - retainer, grab handle, if used

6шт.

17

107230A1

GLASS

- knee, upper, right-hand, if used

1шт.

18

107233A1

GLASS

- knee, upper, left-hand, if used

1шт.

19

107232A1

GLASS

- knee, lower, right-hand, if used

1шт.

20

107234A1

GLASS

- knee, lower, left-hand, if used

1шт.

21

108513A1

SEAL, GLASS,290mm L

- 290 mm long, front knee glass, if used

2шт.

22

108963A1

LINING

SEAL - trim, left-hand ROPS post, if used

2шт.

L35819

RUBBER SEAL

SEAL - foam rubber, bulk roll, adhesive-back, 1 x 1/8 inch x 50 ft long

1шт.
