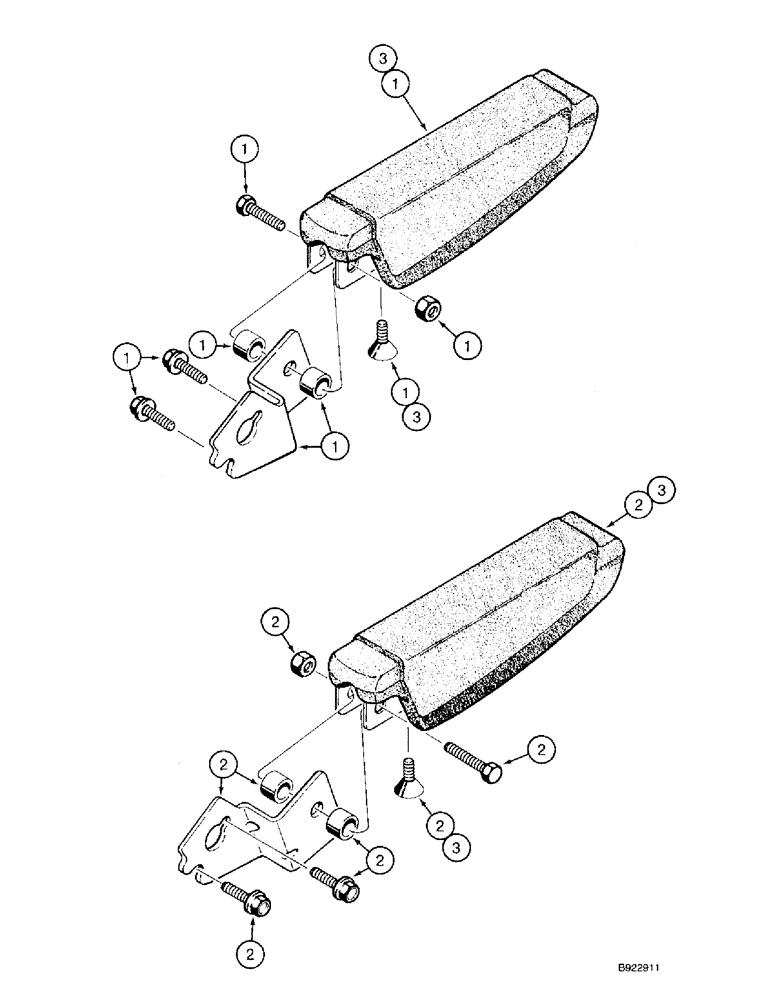

Запчасти Case 590 (9-103L) - SUSPENSION SEAT ARMRESTS (09) - CHASSIS/ATTACHMENTS

102795A2

SEAT

ASSEMBLY - suspension, cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on figures 9-103E and 9-103J, individual component parts NSS, for service order respective component kits(replaces 102795A1), Includes: Ref. 1 - 3

1шт.

108114A2

SEAT

ASSEMBLY - suspension, vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on figures 9-103E and 9-103J, individual component parts NSS, for service order respective component kits(replaces 108114A1), Includes: Ref. 1 - 3

1шт.

1

116523A1

KIT

- left-hand armrest and mounting hardware, also includes (1) shroud upper left side plastic retainer, shown on figure 9-103E

1шт.

2

116524A1

KIT

- right-hand armrest and mounting hardware, also includes (1) shroud upper right side plastic retainer, shown on figure 9-103E

1шт.

3

116759A1

KIT

- armrest pad, includes one mounting bolt

1шт.
