(9-103G) - STANDARD SEAT SUPPORT AND PEDESTAL

Запчасти Case 590 (9-103G) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

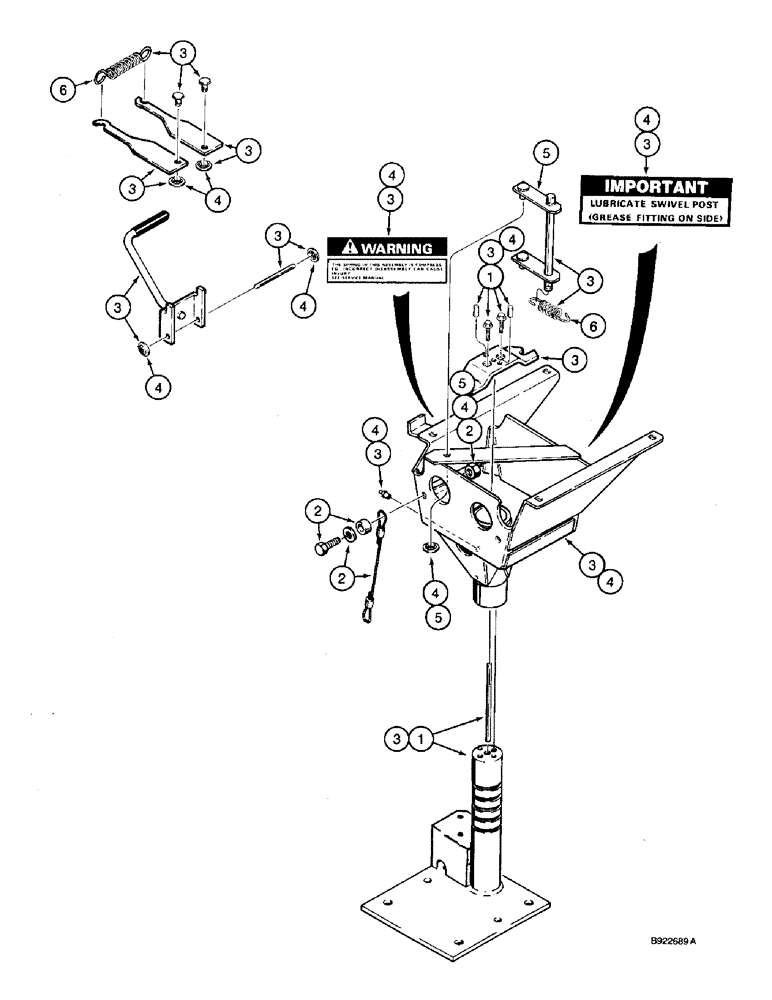

Схема запчастей Case 590 - (9-103G) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS
3
4
3
4
3
3
5
3
1
3
3
3
4
4
6
3
4
2
2
4
3
5
4
3
4
3
3
4
4
5
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

102796A2

SEAT ASSY.

SEAT ASSEMBLY - standard, vinyl, includes seat on figure 9-103C and support and pedestal below, individual component parts NSS, for service order respective kits (replaces 102796A1), Includes: Ref. 1 - 6

1шт.

1

116761A2

KIT

- support, base (replaces 116761A1, pedestal base without switch mounting bracket)

1шт.

The support kit does not include the little shaft pictured going through the center hole of the support.

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-103C.

1шт.

2

116763A1

KIT

- cable, anchor, includes hardware for both ends of cable

1шт.

3

116764A2

KIT

- pedestal (replaces 116764A1, pedestal base without switch mounting bracket)

1шт.

Grease Zerk shown included with Ref. 3 and 4 is 219-16

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-103C.

1шт.

4

116766A2

KIT

- pedestal box (replaces 116766A1)

1шт.

Grease Zerk shown included with Ref. 3 and 4 is 219-16

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-103C.

1шт.

5

116767A1

KIT

- swivel latch

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-103C.

1шт.

6

119171A1

KIT

- spring, also includes seat slide adjuster spring on figure 9-103C

1шт.
