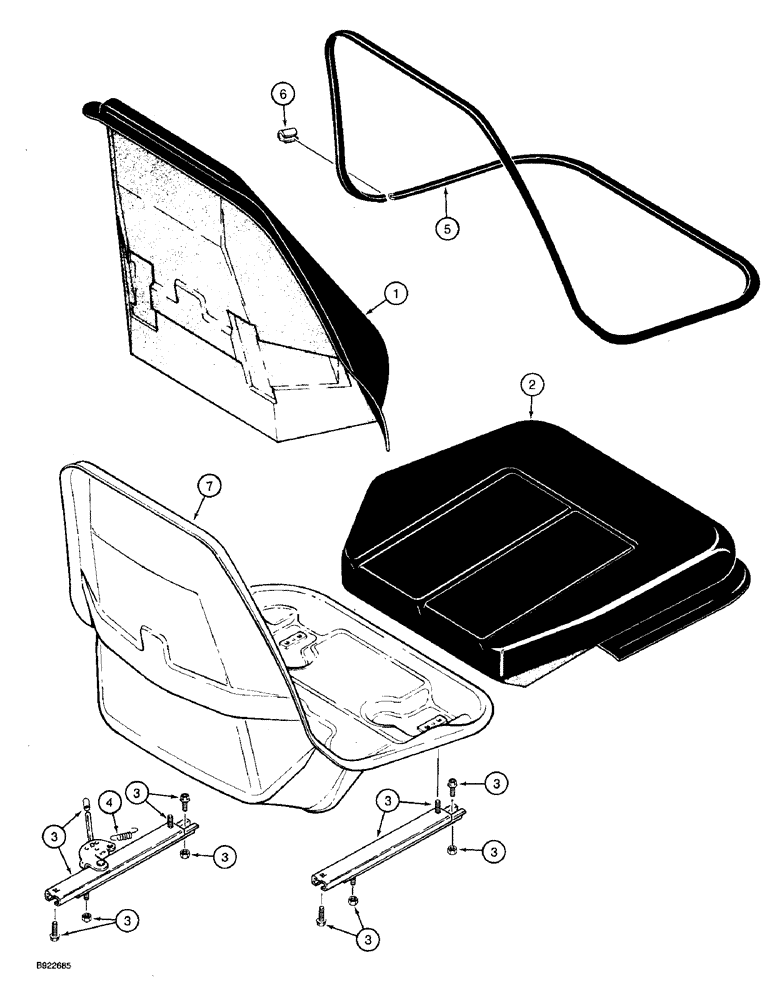

Запчасти Case 590 (9-103C) - STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

102796A2

SEAT ASSY.

SEAT ASSEMBLY - standard, vinyl, includes seat below and support and pedestal on Fig. 9-103G, individual component parts NSS, for service order respective component kits, see Fig. 9-103G for standard support & pedestal (replaces 12796A1) Includes Ref. 1-4

1шт.

REF 102796A2 PER PAM IF YOU NEED SHELL OF 102796A3 W/SWIVEL TRIP BRACKET. CAN USE GRAY SEAT 234223A1 FROM L MODELS AND CHANGE CUSHIONS TO MATCH

1шт.

1

116762A1

KIT

- backrest cushion

1шт.

2

116765A1

KIT

- seat cushion

1шт.

3

116760A1

KIT

- adjuster, seat slide, fore/aft

1шт.

REF 3, 116760A1 INCLUDES THE SPRING THAT ATTACHES TO ADJUSTER ON THE LH SLIDE MECHANISM. SPRING IS APPROX 3 5/8" LONG. REF 4, 119171A1 DOES NOT INCLUDE THIS SPRING. PER MIKE HARRIS AT VENDOR, THAT SPRING CAN ONLY BE PURCHASED AS PART OF THE 116760A1 KIT, IS NOT SERVICED SEPERATELY.

1шт.

4

119171A1

KIT

- spring, seat adjuster slide, also includes vertical latch and extension springs used in the standard pedestal on figure 9-103G

1шт.

5

N14614

GASKET

RETAINER - strip, Serial Range: cushion-shell

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

7

NSS

NOT SOLD SEPARAT

SHELL - seat frame, order 102796A1 complete seat assembly

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 clip above, plus 6 additional narrow clips

1шт.
