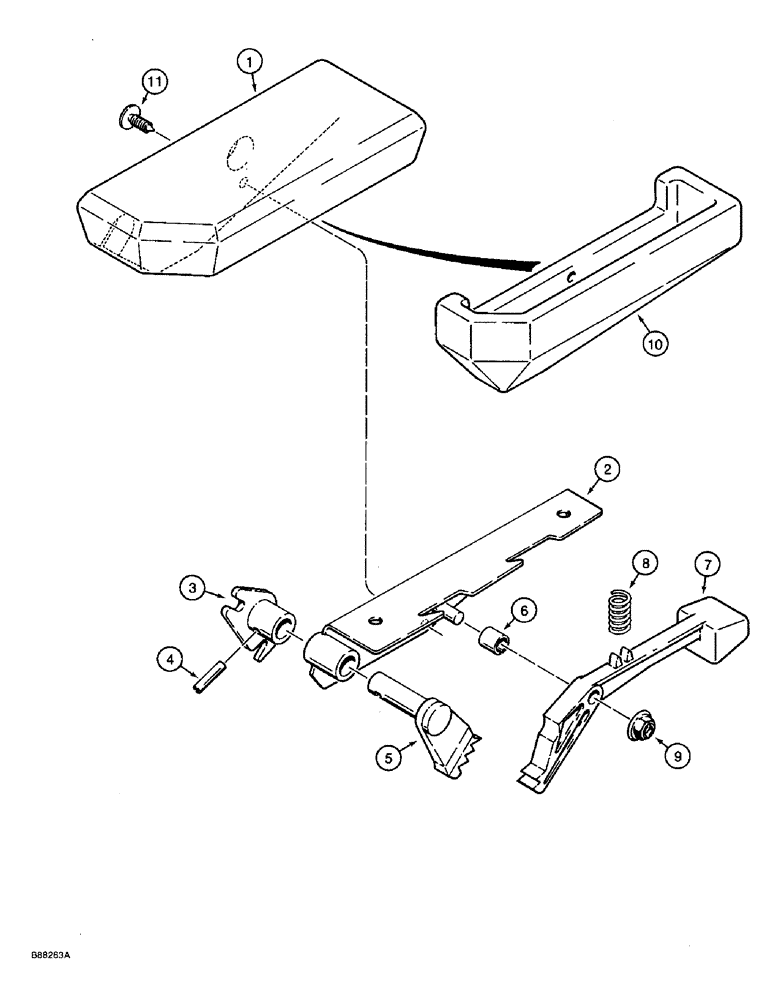

Запчасти Case 590 (9-102) - ARMRESTS (09) - CHASSIS/ATTACHMENTS

N14853

ARMREST

ASSEMBLY - D147689 or D147690 seat, left-hand, not shown, no longer available, order 101577A1, Includes: Ref. 1 - 11

1шт.

N14854

ARMREST

ASSEMBLY - D147689 or D147690 seat, right-hand, no longer available, order 101578A1, Includes: Ref. 1 - 11

1шт.

101577A1

ARMREST

ASSEMBLY - 101795A1 or 101796A1 seat, left-hand, not shown, Includes: Ref. 1 - 11

1шт.

101578A1

ARMREST

ASSEMBLY - 101795A1 or 101796A1 seat, right-hand, not shown, Includes: Ref. 1 - 11

1шт.

1

N14863

SHROUD

COVER armrest, upper, right-hand

1шт.

1a

N14860

SHROUD

COVER armrest, upper, left hand, not shown

1шт.

N14856

RETAINER

ASSEMBLY - armrest, left-hand, not shown, includes Ref. 2-5A, no longer available, order 101575A1 retainer

1шт.

N14862

PAN

RETAINER ASSEMBLY - armrest, right-hand, includes Ref. 2-5A, no longer available, order 101576A1 retainer

1шт.

101575A1

PAN

RETAINER - complete, does not disassemble, 101577A1 armrest, left-hand, component parts not serviced separately

1шт.

101576A1

PAN

RETAINER - complete, does not disassemble, 101578A1 armrest, right-hand, component parts not serviced separately, Includes: Ref. 2 - 5A

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - armrest

1шт.

3

D149164

PAN

BRACKET - retainer mounting, right hand, no longer available, order 101576A1 retainer

1шт.

3a

D149163

PAN

BRACKET - retainer mounting, left-hand, not shown, no longer available, order 101575A1 retainer

1шт.

4

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

5

D149162

PAN

LEVER - stop, right-hand, no longer available, order 101576A1 retainer

1шт.

5a

D149161

LEVER

- stop, left-hand, not shown, no longer available, order 101575A1 retainer

1шт.

6

N14857

SPACER

- split

1шт.

7

N14858

LATCH

- lever, armrest

1шт.

8

N14859

SPRING

- compression

1шт.

9

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

1шт.

10

N14861

PAD

ARMREST lower, retainer, right-hand

1шт.

10a

N14855

PAD

ARMREST lower, retainer, left-hand, not shown

1шт.

11

N14323

CLIP

RETAINER - brown, plastic

1шт.
