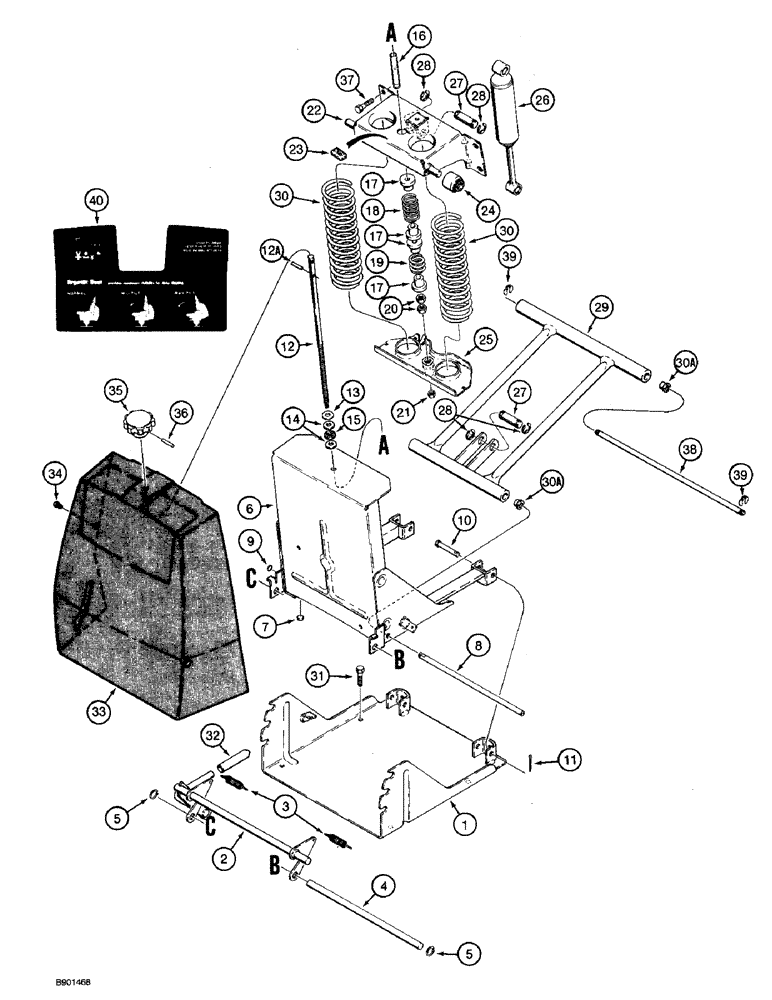

Запчасти Case 590 (9-100) - SUSPENSION SEAT ADJUSTER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

N14297

SUSPENSION

ADJUSTER ASSEMBLY - suspension seat, see figure 9-86 for seat options, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - support

1шт.

2

N14310

LEVER

- seat tilt

1шт.

3

N9240

VALVE SPRING

SPRING - extension

2шт.

4

N9242

SHAFT

- rear, seat tilt lever, replaces N14312

1шт.

5

N14313

OIL SEAL

RING - snap, shaft retaining

2шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - adjuster assembly

1шт.

7

N14316

BUMPER

- housing

2шт.

8

N8492

SHAFT

- seat adjuster arm, rear

1шт.

9

N14306

OIL SEAL

RING - snap, shaft retaining

1шт.

10

N14309

PIN

- clevis, Serial Range: housing-base

2шт.

11

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

12

N14307

ADJUSTMENT SCREW

- adjusting, seat

1шт.

12a

D144457

PIN

- spring

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

14

N8502

WASHER

- thrust, adjuster knob

2шт.

15

F13537

THRUST BEARING

BEARING - thrust, adjuster knob

1шт.

16

N8501

SPACER

- 7/16 x 9/16 x 3-1/64 inch, vinyl, seat adjuster

1шт.

17

N8495

RETAINER

SEAT - springs, seat adjuster

4шт.

18

N8496

VALVE SPRING

SPRING - compression, upper, seat adjuster

1шт.

19

N8494

VALVE SPRING

SPRING - compression, lower, seat adjuster

1шт.

20

N8497

NUT

- special, seat adjuster, upper

2шт.

21

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - springs, upper

1шт.

23

N8484

INSULATOR BLOCK

BUMPER - rubber

1шт.

24

N8500

ROLLER

- upper bracket, seat adjustment

2шт.

25

NSS

NOT SOLD SEPARAT

BRACKET - springs, lower

1шт.

NSS bracket - spring lower is now serviced under N8493

1шт.

26

N8488

SHOCK ABSORBER

ABSORBER - shock, adjuster assembly

1шт.

27

N8485

AXLE PIN

PIN - shock absorber mounting

2шт.

28

100-3362

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

29

NSS

NOT SOLD SEPARAT

ARM - seat adjuster

1шт.

30

N8498

VALVE SPRING

SPRING - compression

2шт.

30a

N13754

BUSHING

BEARING - flanged

4шт.

31

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

32

N14311

COVER

HANDLE - seat tilt lever

1шт.

33

N14314

COVER

- shroud, housing

1шт.

34

N8487

RIVET

- plastic, yellow, weight indicator

1шт.

35

N14308

KNOB

- seat adjuster

1шт.

36

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

1шт.

37

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

38

N14430

SHAFT

- seat adjuster arm, front

1шт.

39

D143414

CIRCLIP

RING - shaft retaining, replaces D95093

2шт.

40

N14315

DECAL

- seat tilt adjustment, Ref. 26 shown on figure 9-148

1шт.
