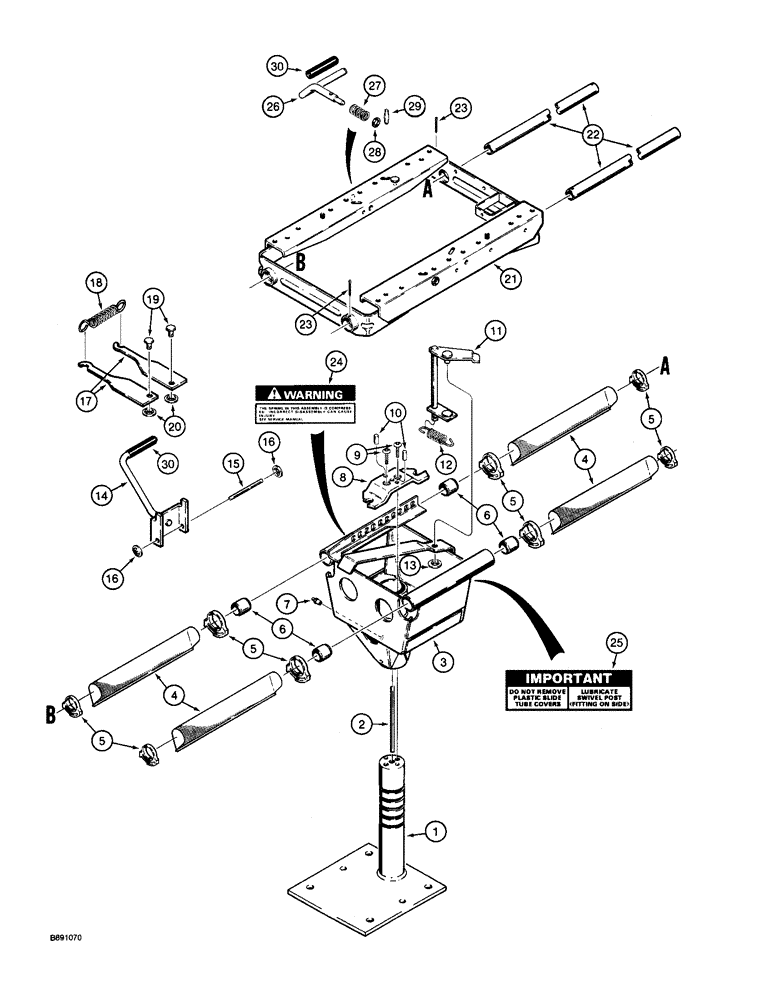

Запчасти Case 590 (9-098) - SUSPENSION SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS

D147655

PEDESTAL

SUPPORT ASSEMBLY - suspension seat, see figure 9-86 for seat options, Includes: Ref. 1 - 29

1шт.

1

N14299

BASE

- seat support

1шт.

2

N14300

SHAFT

- seat support

1шт.

3

N14301

SUPPORT ASSY.

RISER - seat support

1шт.

4

D147877

BELLOWS

- slide tube

4шт.

5

N14105

CLAMP

- bellows

8шт.

6

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING - slide tube

4шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16 drive type x 19/32 inch

1шт.

8

NSS

NOT SOLD SEPARAT

LATCH - seat swivel

1шт.

Part of latch kit P/N D147775.

1шт.

9

461-7318

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1/2"

BOLT - hex socket button head, 5/16 NC x 1/2 inch

2шт.

Part of latch kit P/N D147775.

1шт.

10

435-11012

GROOVED PIN,5/16" x 3/4", Type A

Pin, Grooved, 5/16" x 3/4", Type A

2шт.

Part of latch kit P/N D147775.

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER - seat swivel

1шт.

Part of latch kit P/N D147775.

1шт.

12

D145790

SPRING KIT

SPRING - seat swivel, replaces N8341

1шт.

Part of latch kit P/N D147775.

1шт.

13

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

1шт.

Part of latch kit P/N D147775.

1шт.

14

N14294

HANDLE

- seat height adjustment

1шт.

15

N6962

SHAFT

- pivot

1шт.

16

131-434

LOCK NUT,Push, 5/16"

NUT - push-on type, 5/16 inch

2шт.

17

N6963

LATCH

- seat height adjustment

2шт.

18

N6970

CATCH

SPRING - latch, seat height adjustment

1шт.

19

N6964

PIN,9.53mm OD x 19.05mm L

- latch

2шт.

20

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

2шт.

21

N14302

SLIDE

- seat

1шт.

22

N14305

TUBE

- slide

2шт.

23

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

24

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, See figure 9-148, Ref. 28, for decal

1шт.

25

N14295

DECAL

- Important, do not remove plastic slide tube covers, lubricate swivel post, see figure 9-148, Ref. 27, for decal

1шт.

26

D144387

HANDLE

- slide release, side mounted

1шт.

27

D144430

SPRING

- compression

1шт.

28

D144431

WASHER

- flat, special

1шт.

29

D144432

PIN

- slide lock

1шт.

30

N14311

COVER

GRIP - seat levers, included with seat assembly

2шт.

D147775

LATCH

KIT - latch, Includes: Ref. 8 - 13

1шт.
