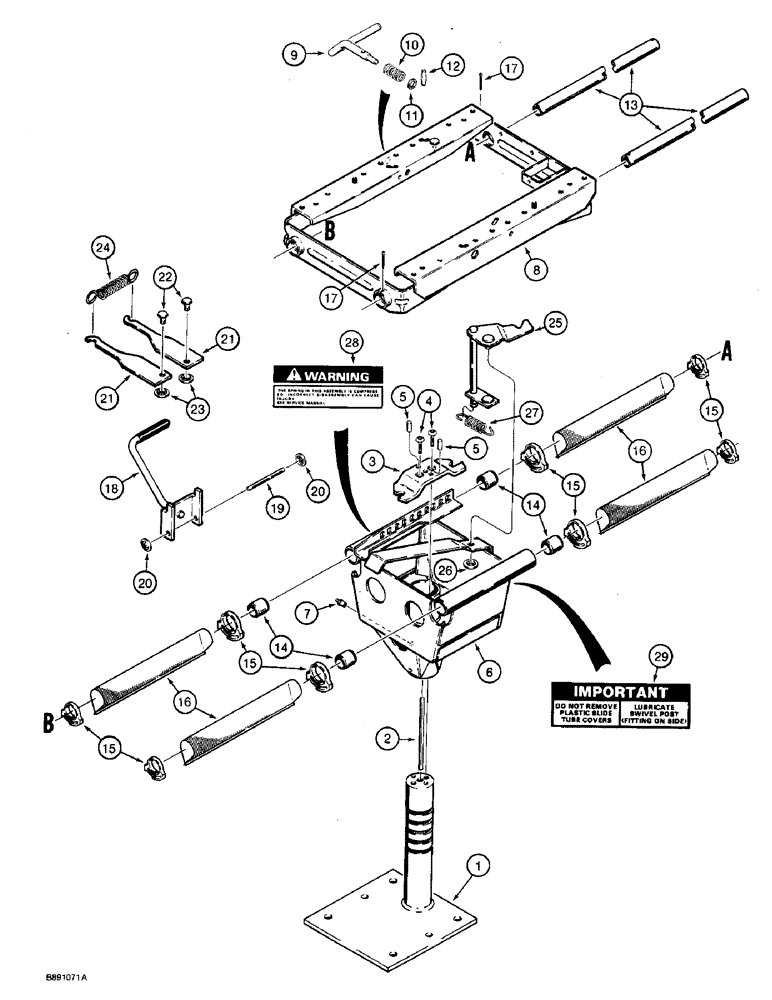

Запчасти Case 590 (9-096) - STANDARD SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS

D147644

PEDESTAL

SUPPORT ASSEMBLY - D123196 standard seat, Includes: Ref. 1 - 29

1шт.

1

N14289

BASE

- seat support

1шт.

2

N8340

SHAFT

- seat support

1шт.

3

NSS

NOT SOLD SEPARAT

LATCH - seat swivel

1шт.

Part of latch kit P/N D147776.

1шт.

4

164-407

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT - hex socket button head, 5/16 NC x 1/2 inch, grade 8

2шт.

Part of latch kit P/N D147776.

1шт.

5

435-11012

GROOVED PIN,5/16" x 3/4", Type A

Pin, Grooved, 5/16" x 3/4", Type A

2шт.

Part of latch kit P/N D147776.

1шт.

6

N14290

SUPPORT

RISER - seat support

1шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16 drive type x 19/32 inch

1шт.

8

N14291

SLIDE

- seat

1шт.

9

D144387

HANDLE

- slide release, side mounted

1шт.

10

D144430

SPRING

- compression

1шт.

11

D144431

WASHER

- flat, special

1шт.

12

D144432

PIN

- slide lock

1шт.

13

N14292

TUBE

- slide

2шт.

14

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING - slide tube

4шт.

15

N14105

CLAMP

- bellows

8шт.

16

D147877

BELLOWS

- slide tube

4шт.

17

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

18

N14294

HANDLE

- seat height adjustment

1шт.

19

N6962

SHAFT

- pivot

1шт.

20

131-434

LOCK NUT,Push, 5/16"

NUT - push-on type, 5/16 inch

2шт.

21

N6963

LATCH

- seat height adjustment

2шт.

22

N6964

PIN,9.53mm OD x 19.05mm L

- latch

2шт.

23

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

2шт.

24

N6970

CATCH

SPRING - latch, seat height adjustment

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER - seat swivel

1шт.

Part of latch kit P/N D147776.

1шт.

26

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

1шт.

Part of latch kit P/N D147776.

1шт.

27

D145790

SPRING KIT

SPRING - seat swivel, 2-3/8 inch long, replaces N8341

1шт.

Part of latch kit P/N D147776.

1шт.

28

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, See figure 9-148, Ref. 28, for decal

1шт.

29

N14295

DECAL

- Important, do not remove plastic slide tube covers, lubricate swivel post, see figure 9-148, Ref. 27, for decal

1шт.

D147776

LATCH

KIT - latch, Includes: Ref. 3 - 5 and 25 - 27

1шт.
