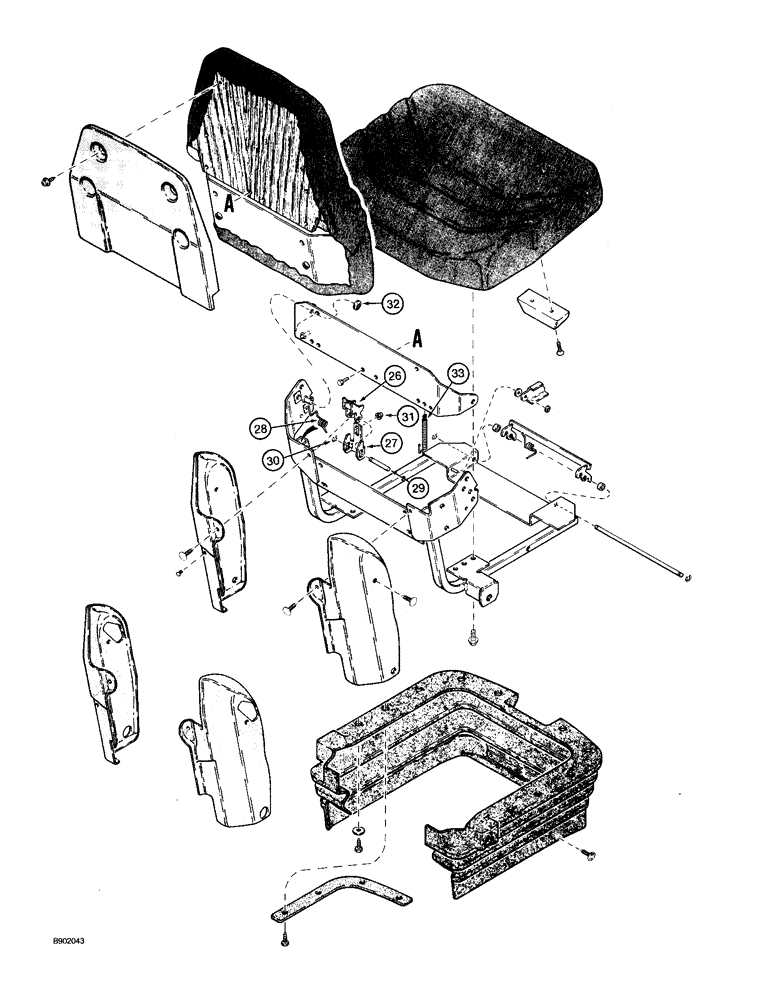

Запчасти Case 590 (9-094) - SUSPENSION SEAT ASSEMBLIES (CONT) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

SEAT ASSEMBLY - suspension, Includes: Ref. 26 - 33 and 1 - 25 on Fig. 9-92

1шт.

N14852

FUNNEL

FRAME ASSEMBLY - seat, Includes: Ref. 26 - 33 and 17 - 25 on Fig. 9-92

1шт.

26

N14326

LATCH

BRACKET - latch, upper, backrest adjustment

1шт.

27

N14327

BACK

BRACKET - latch, lower, backrest adjustment

1шт.

28

N14335

SPRING

- torsion, backrest

1шт.

29

N14333

SHAFT

PIN - backrest latch

1шт.

30

D95092

RING

- C-type, retaining, replaces N14331

1шт.

31

N14336

NUT

- push-on type, special

1шт.

32

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

2шт.

33

N14337

SPRING

- extension

1шт.
