Запчасти Case 590 (9-092) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

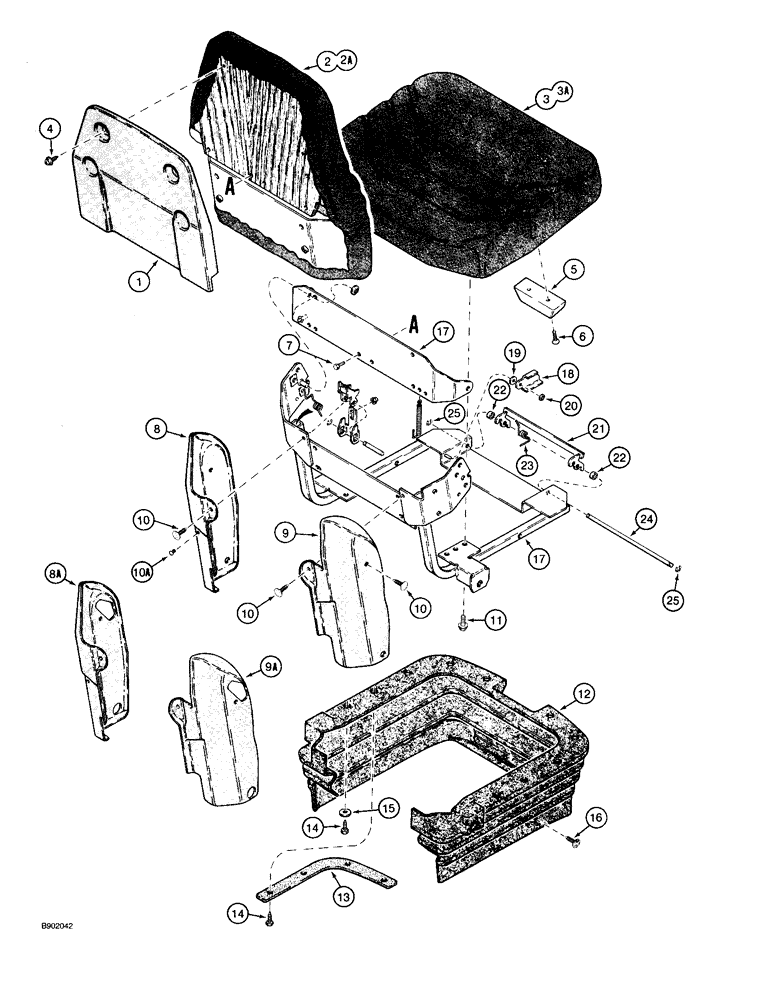

SEAT ASSEMBLY - suspension, see Fig. 9-86 and 9-88 for suspension seat options, for seat support and adjuster, see Fig.s 9-98 and 9-100, no longer available, order cloth or vinyl seat assembly on Fig. 9-103E, Includes: Ref. 1 - 25 & 26 - 33 on Fig. 9-94

1шт.

1

D144559

SHROUD

COVER - backrest, upper, shield

1шт.

2

N14321

CUSHION

BACKREST - seat, cloth

1шт.

2a

N14341

CUSHION

BACKREST - seat, vinyl

1шт.

3

N14318

CUSHION

- seat, cloth

1шт.

3a

N14340

CUSHION

- seat, vinyl

1шт.

4

NSS363-31012

SCREW - Phillips, hex washer head, special

4шт.

5

N14322

HANDLE

- seat cushion adjustment

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

7

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

5шт.

8

D144721

SHROUD

COVER - frame, left-hand shroud, used on seats without armrests

1шт.

8a

D144920

SHROUD

COVER - frame, left-hand shroud, used on seats with armrests

1шт.

9

D144720

SHROUD

COVER - frame, right-hand shroud, used on seats without armrests

1шт.

9a

D144919

SHROUD

COVER - frame, right-hand shroud, used on seats with armrests

1шт.

10

N14323

CLIP

RETAINER - plastic

4шт.

10a

N8487

RIVET

- plastic, yellow

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

12

N14320

BOOT

- seat, protective covering

1шт.

13

N14319

SUPPORT

BRACKET - boot support

2шт.

14

N13703

CLIP,ELECTRICAL

SCREW - hex head, special

10шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

16

D144429

CLIP

RETAINER - plastic, black

9шт.

N14852

FUNNEL

FRAME ASSEMBLY - seat, Includes: Ref. 17 - 25

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME - seat

1шт.

18

N14325

TOGGLE

BRACKET - toggle

1шт.

19

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

20

131-433

PUSH-ON NUT,Push, 1/4"

NUT - push-on type, 1/4 inch

1шт.

21

N14324

LATCH

BRACKET - latch, cushion adjustment

1шт.

22

N14334

SPACER

- nylon

2шт.

23

N14335

SPRING

- torsion

1шт.

24

N14332

SHAFT

- front seat bracket latch

1шт.

25

D95092

RING

- C-type, retaining, replaces N14331

2шт.
