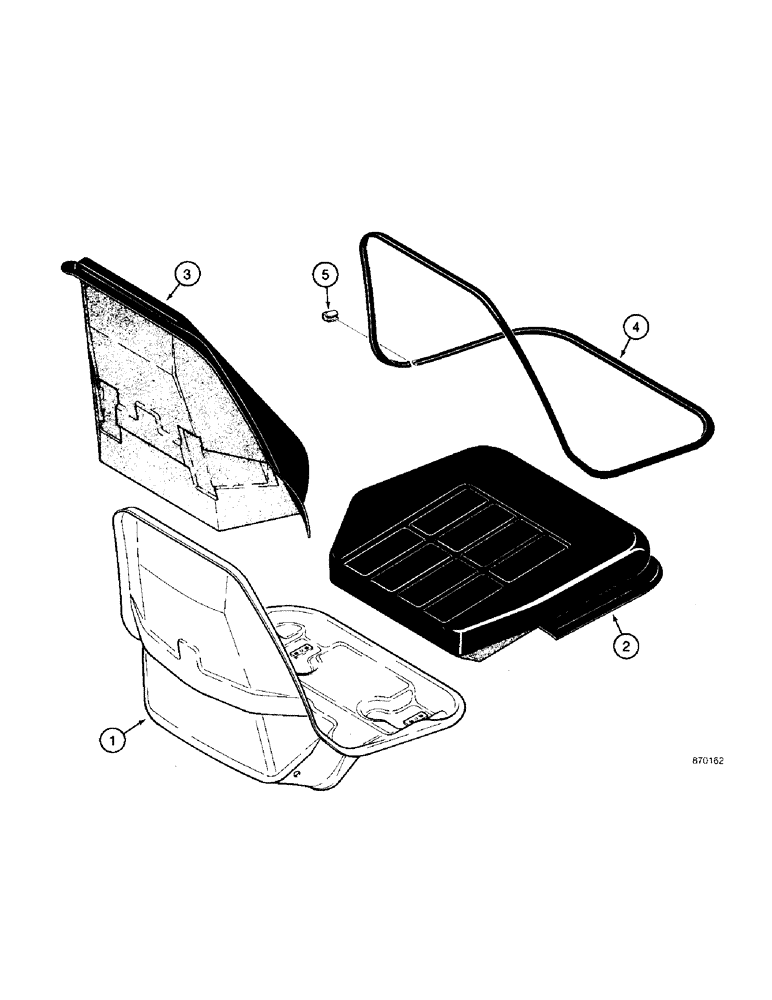

Запчасти Case 590 (9-090) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D123196

SEAT ASSY.

SEAT ASSEMBLY - standard, for seat support see figure 9-96, if used, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

- seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

- backrest, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

Part of P/N N7802 Clip Kit

1шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl. ounces (680 ml), not shown (purchase locally)

1шт.

N7802

CLIP

KIT - clip, Includes: Ref. 5 clip above plus 6 additional narrow clips

1шт.
