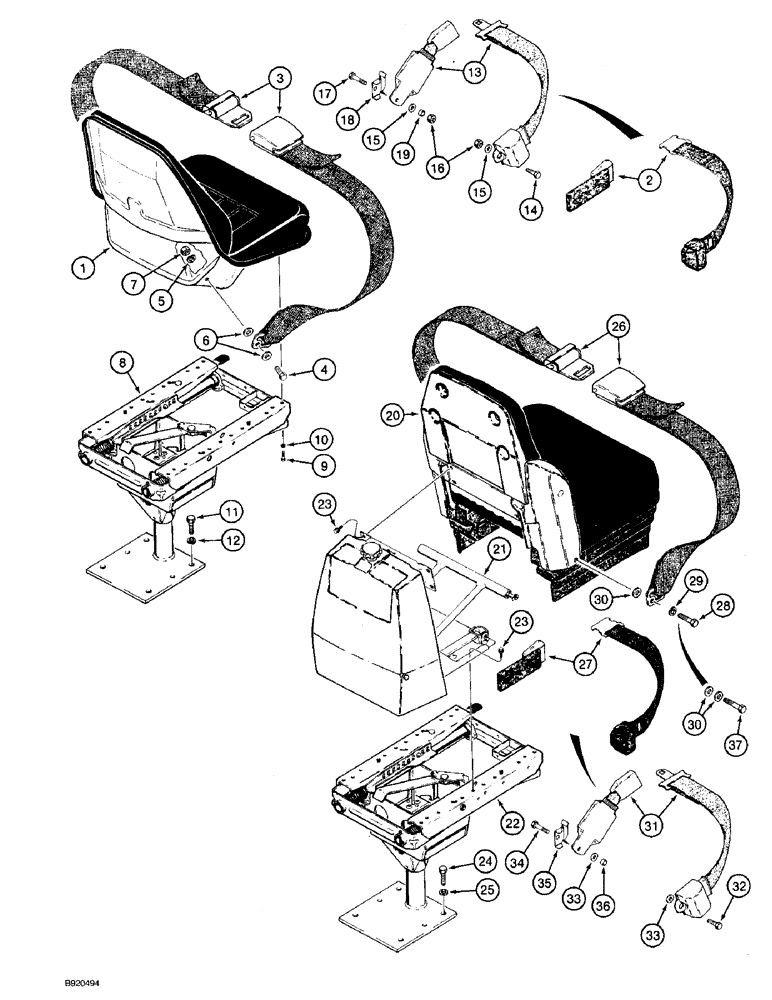

Запчасти Case 590 (9-086) - SEATS AND MOUNTING PARTS, STANDARD SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D123196

SEAT ASSY.

SEAT ASSEMBLY - standard, parts list figure 9-90, if used

1шт.

2

D135623

SAFETY BELT

BELT - seat, 2 inch (51 mm) wide, with retractor, no longer available, order D150377 belt, Ref. 13

1шт.

3

D150010

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.

4

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

D135623 or D150010 belt, If used Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , D135623 or D150010 belt, if used 7/16"

2шт.

6

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), D135623 or D150010 belt, if used 7/16", SAE

4шт.

7

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, D135623 or D150010 belt, if used

2шт.

8

D147644

PEDESTAL

SUPPORT ASSEMBLY - standard seat, parts list figure 9-96

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

13

D150377

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

14

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, D150377 belt, right-hand side, if used

1шт.

15

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened, D150377 belt, if used

2шт.

16

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16 inch NF, D150377 belt, if used

2шт.

17

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, D150377 belt, left-hand side, if used

1шт.

18

D150392

BRACKET

- D150377 belt, left-hand side, if used

1шт.

19

D150391

SPACER

- D150377 belt, left-hand side, if used

1шт.

101796A1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, with armrests shown on Fig. 9-102, cab models only, see Fig. 9-92 &9-94 for seat, also includes Ref. 30A-40 on Fig. 9-100 (replaces D147689), no longer available, order 102795A2 on Fig. 9-103A, Includes Ref. 20 - 23

1шт.

101795A1

SEAT

ASSEMBLY - suspension, vinyl, with armrests shown on Fig. 9-102, see Fig. 9-92 and 9-94 for seat assembly, also includes Ref. 30A-40 on Fig. 9-100 (replaces D147690 seat), no longer available, order 108114A2 on Fig. 9-103A, Includes Ref. 20 - 23

1шт.

D147692

SEAT

ASSEMBLY - suspension, vinyl, without armrests, see figures 9-92 and 9-94 for seat, also includes Ref. 30A-40 on figure 9-100, no longer available, order 108114A2 seat on figure 9-103A, Includes Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - suspension seat, without armrests, parts list figures 9-92 and 9-94

1шт.

21

N14297

SUSPENSION

ADJUSTER ASSEMBLY - suspension seat, parts list figure 9-100

1шт.

22

D147655

PEDESTAL

SUPPORT ASSEMBLY - suspension seat, parts list figure 9-98

1шт.

23

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

26

D150010

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, if used

1шт.

27

D135623

SAFETY BELT

BELT - seat, 2 inch (51 mm) wide, no longer available, order D150377 belt, Ref. 31

1шт.

28

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

- hex, 7/16 NF x 1-1/2 inch, D135623 or D150010 belt, if used

2шт.

29

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , If used 7/16"

2шт.

30

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), If used 7/16", SAE

2-4шт.

31

D150377

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

32

109-9

PREV TORQUE BOLT,Locking, 7/16"-20 x 1 1/4", G5

BOLT - hex, self-locking, 7/16 NF x 1-1/4 inch, D150377 belt, right-hand side, if used

1шт.

33

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened, D150377 belt, if used

2шт.

34

109-10

PREV TORQUE BOLT,Locking, 7/16"-20 x 1 3/4", G5

BOLT - hex, self-locking, 7/16 NF x 1-3/4 inch, D150377 belt, left-hand side, if used

1шт.

35

D150392

BRACKET

- D150377 belt, left-hand side, if used

1шт.

36

D150391

SPACER

- D150377 belt, left-hand side, if used

1шт.

37

109-10

PREV TORQUE BOLT,Locking, 7/16"-20 x 1 3/4", G5

BOLT - hex, self-locking, 7/16 NF x 1-3/4 inch, used with four flat washers with D150010 3 inch belt, if used

2шт.
