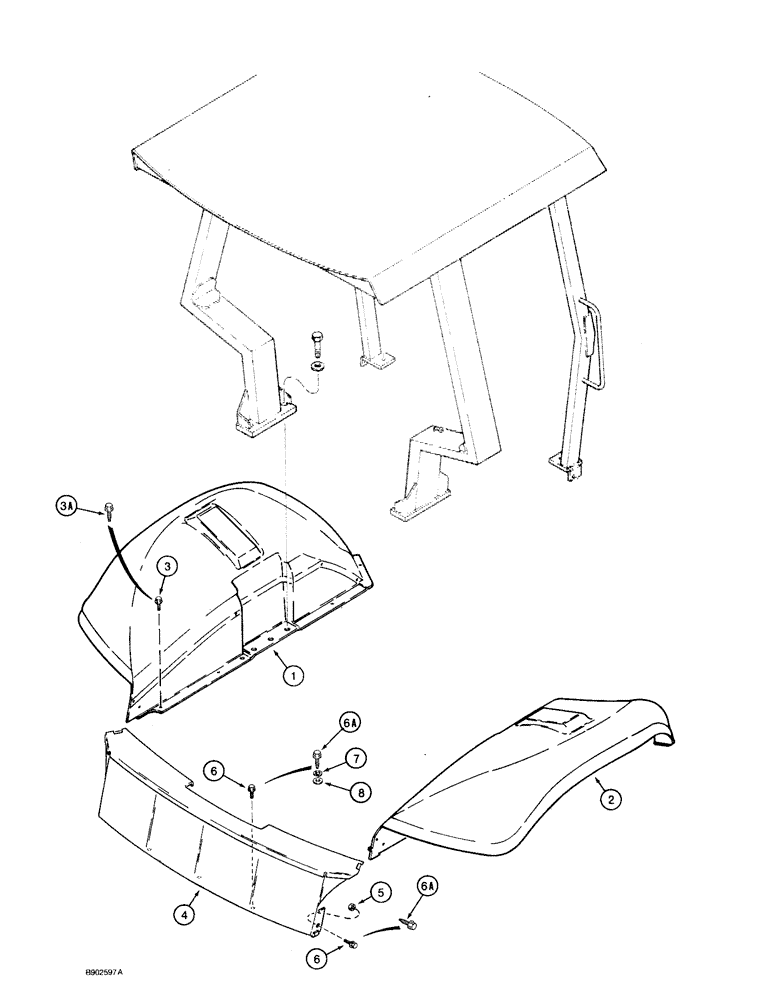

Запчасти Case 590 (9-084) - REAR FENDERS AND CLOSURE PANEL, ROPS CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

R52549

FENDER

- rear, left-hand

1шт.

2

R52550

FENDER

- rear, right-hand

1шт.

3

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch, (replaces D141589 bolt), if used

8шт.

3a

112865A1

SCREW

- pointed, self-aligning, if used

8шт.

4

D135244

PANEL

- rear closure, canopy models with backhoe, see figure 9-146, Ref. 8 for model decal

1шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-locking, hex washer head, 5/16 NC x 3/4 inch, (replaces D141589 bolt), if used

7шт.

6a

112865A1

SCREW

- pointed, self-aligning, if used

7шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

2шт.

8

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

4шт.
