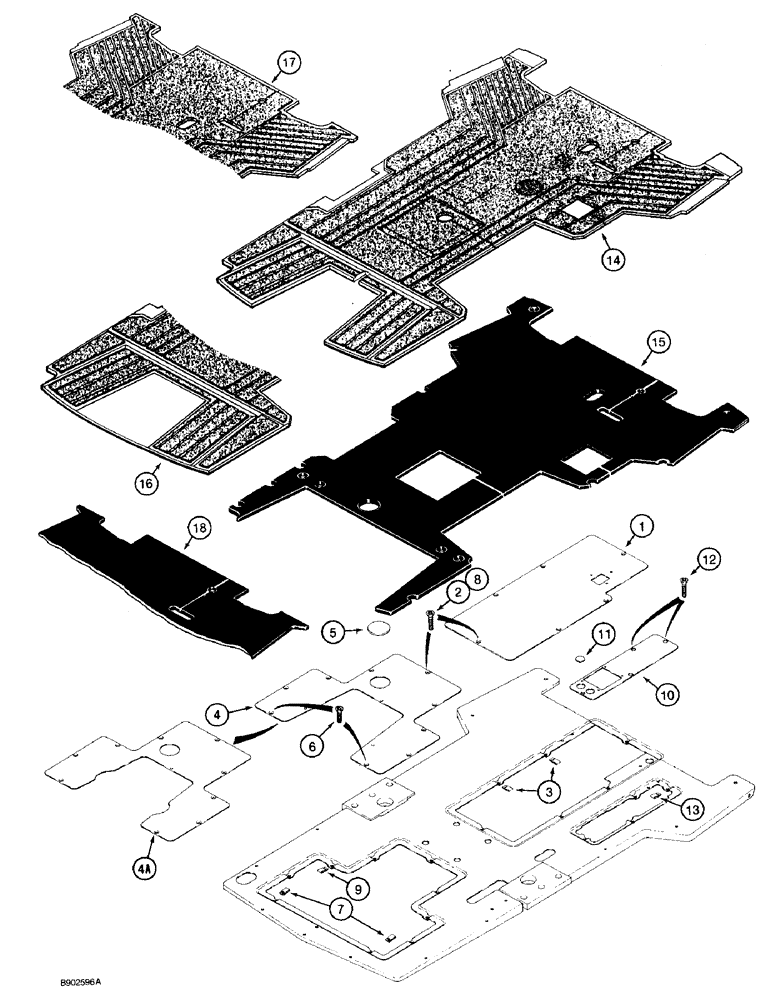

Запчасти Case 590 (9-082) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

D146215

COVER

PLATE - floor, front cover

1шт.

2

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket flat, 5/16 NC x 1 inch, front floor plate

6шт.

3

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

6шт.

4

D133813

PLATE

- floor, rear cover, with plug hole, if used

1шт.

4a

104539A1

PLATE

- floor, rear cover, with plug hole, if used

1шт.

5

D143595

PLUG

- button, 3 inch, steel, rear floor plate

1шт.

6

461-43112

HEX SOC SCREW,Flat Hd, 5/16"-18 x 3/4"

BOLT - hex socket flat, 5/16 NC x 3/4 inch

2шт.

7

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16" NC

2шт.

8

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket flat head, 5/16 NC x 1 inch

7шт.

9

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

7шт.

10

D149324

PLATE

- cover, loader control lever boot

1шт.

11

D150737

PLUG

- button, 1-1/4 inch, (replaces 205-56)

2шт.

12

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket flat head, 5/16 NC x 1 inch

4шт.

13

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

4шт.

14

D147766

FLOORMAT - used with D147784 pad, cab models with backhoe, for service order 109847A1 floormat, shown on figure 9-83A service order 109747A1 floormat, shown on figure 9-83A

1шт.

15

D147784

PAD

- floormat, service replacement, if used

1шт.

16

D147767

FLOOR MAT

FLOORMAT - service replacement, no longer available, order 109747A1 floormat, Ref. 1, shown on figure 9-83A

1шт.

17

D147780

FLOORMAT - used with D147785 pad, canopy models with backhoe, for service order 109847A1 floormat, shown on figure 9-83A

1шт.

18

D147785

PAD - floormat, used on canopy models with backhoe, for service order D147784 pad, if used

1шт.
