Запчасти Case 590 (9-080) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D146159

ROD ASSY.

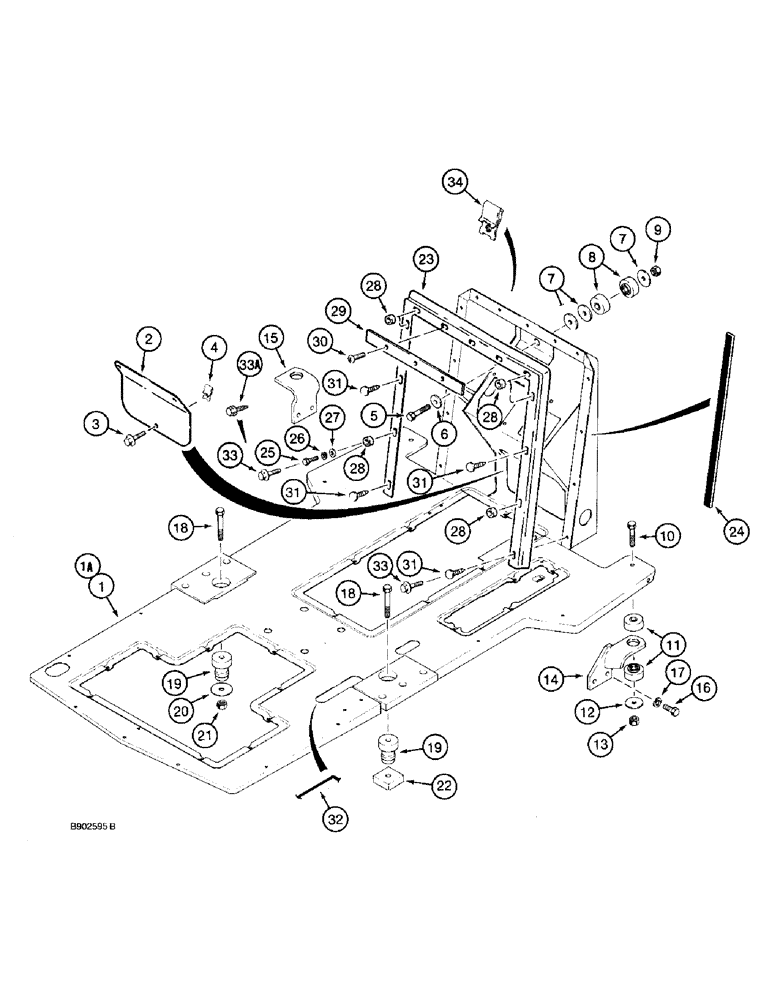

FRAME - operators compartment, has a 7/16 inch mounting hole on front of lower channel for front drive axle control lever mounting, Ref. 5 & 12 on figure 6-28, frame no longer available, 2WD units order 102451A1 f24, 25, 27, 28, and 30-33 on figure 6-28

1шт.

1a

117920A1

BRACKET

FRAME - operators compartment, has 1/2 inch mounting hole on front of lower channel for front drive axle control lever mounting, Ref. 24 and 25 on figure 6-28, (replaces 102451A1 frame)

1шт.

2

D139180

COVER

PLATE - access, in firewall

1шт.

3

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch, (replaces D141589 screw)

3шт.

4

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

3шт.

5

426-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

- hex, 5/8 NC x 3-3/4 inch, grade 8

1шт.

6

D90873

WASHER

- flat, 1/4 inch (6 mm) thick

1шт.

7

D89007

WASHER

- flat, 5/8 x 2-3/4 inch, special

3шт.

8

D138565

SHOCK ABSORBER

INSULATOR - frame mounting, front

2шт.

9

429-1010

NUT,5/8"-11, G8

1шт.

10

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

2шт.

11

D138565

SHOCK ABSORBER

INSULATOR - frame mounting, front

4шт.

12

D89007

WASHER

- flat, 5/8 x 2-3/4 inch, special

2шт.

13

429-1010

NUT,5/8"-11, G8

2шт.

14

D144671

SUPPORT

BRACKET - frame mount, right-hand front

1шт.

15

D140555

SUPPORT

BRACKET - frame mount, left-hand front

1шт.

16

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

18

D147377

BOLT

- hex, 5/8 NC x 5 inch, special thread length

2шт.

19

A141451

SHOCK ABSORBER

INSULATOR - frame mount, rear, rubber

2шт.

20

D89007

WASHER

- flat, 5/8 x 2-3/4 inch, special, used on left-hand side rear frame mount only

1шт.

21

429-1010

NUT,5/8"-11, G8

Used on LH rear frame mount only 5/8"-11, G8

1шт.

22

D148525

BLOCK

- tapped, used on right-hand rear frame mount only

1шт.

23

D132290

SEAL

- firewall, used on models without cab

1шт.

24

D150055

STRIP

SEAL - 300 inch (7620 mm) long, cut from L35819, firewall and chassis, used on models with cab

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

28

102439A1

SPACER

- 13/32 x 1/2 x 3/8 inch, seal to front instrument panel (replaces D35217 spacer)

6шт.

29

D143659

PLATE

- steel

1шт.

30

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan head Phillps, 5/16 NC x 3/4 inch

3шт.

31

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER - push-in, plastic

4шт.

32

D35424

LINING

TRIM - edge, 16 inch long, cut to required length from bulk trim F42827, see below

1шт.

33

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch, (replaces D141589 screw), if used

3-7шт.

33a

112865A1

SCREW

- pointed, self-aligning, if used

3-7шт.

34

131-874

NUT,Ret, J, 5/16"-18

- J-type, 5/16 inch NC

13шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.

L35819

RUBBER SEAL

SEAL - 50 foot long, bulk

1шт.
