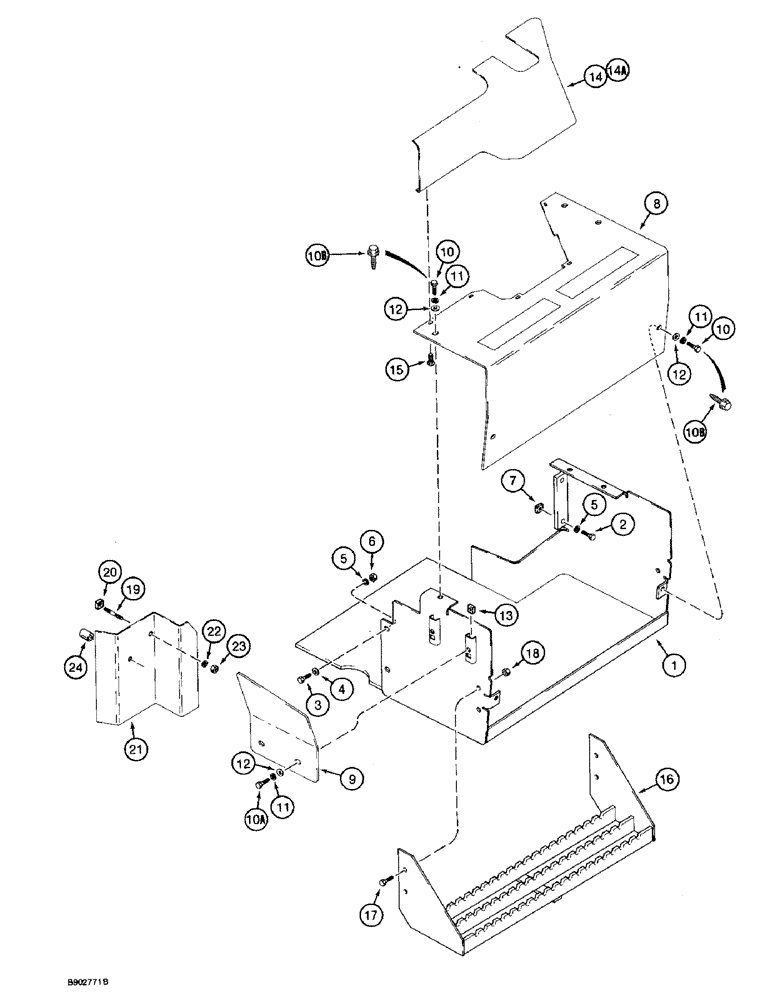

Запчасти Case 590 (9-078) - LOADER VALVE BOX, COVERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

D147089

PLATE ASSY.

BOX - enclosure, loader valve

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

8

D147402

LID

COVER - valve enclosure box, front

1шт.

9

D150029

GUARD

- mud, valve enclosure box

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

5шт.

10a

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

10b

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

SCREW - pointed, self-aligning, special, if used, replaces 118978A1 replaces 118978A1

5шт.

11

492-11038

LOCK WASHER,3/8"

7шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

7шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

14

D147520

COVER

- valve enclosure box, rear, plastic, with opening for hydraulic tubes, no longer available, order D150792 cover (Ref. 14A) and modify as required, Serial Range: -JJG0206623

1шт.

14a

D150792

COVER

- valve enclosure box, rear, plastic, without opening for hydraulic tubes, Start Serial: JJG0206623

1шт.

15

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

- self-tapping, pan Phillips, No. 10-16 x 3/4 inch

5шт.

16

D149922

STEP

- operator compartment access

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

19

R46227

STUD

- special, tube clamp and cover to chassis bracket

2шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

21

D146883

PROTECTOR

GUARD - rear, tubes at chassis

1шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

D150735

SPACER

- rear guard, left-hand mounting hole only, if used

1шт.

D88417

CAGE ASSY.

shown in the figure just under Ref.13

1шт.
