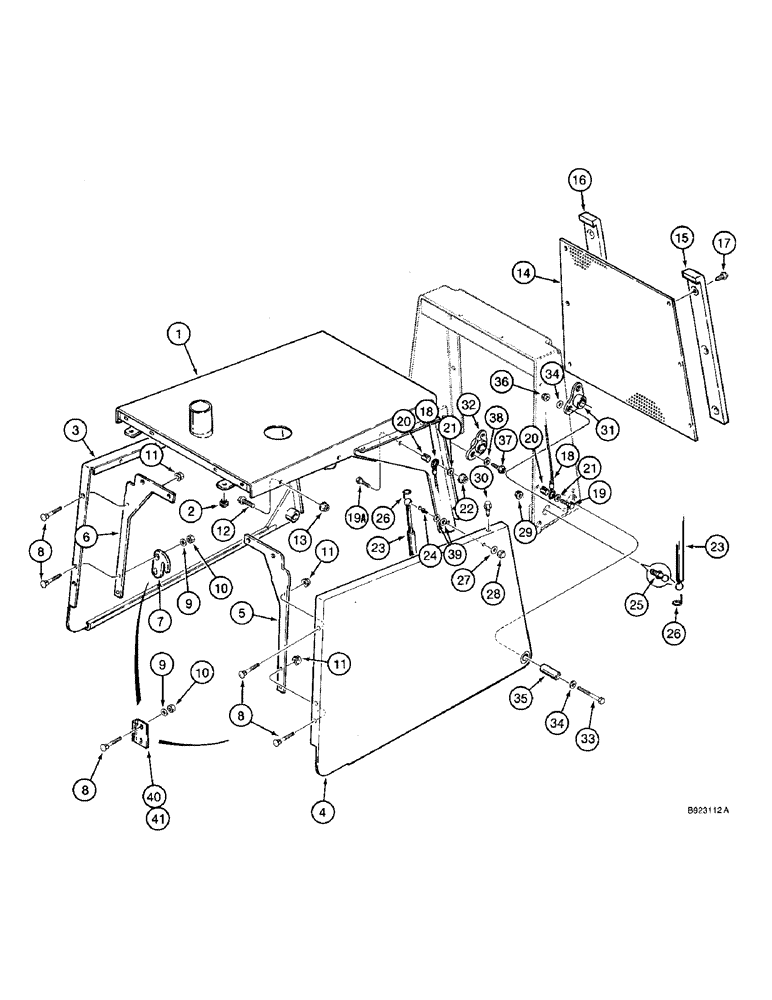

Запчасти Case 590 (9-075A) - HOOD, ENGINE SIDE PANELS, AND GRILLE UNIT (09) - CHASSIS/ATTACHMENTS

1

111565A1

HOOD ASSY.

HOOD - engine, if used

1шт.

Also see Figures 9-072 and 9-074 for hood.

1шт.

2

D145721

BUMPER

- hood to air cleaner mounting bracket

2шт.

3

123102A1

PANEL

- engine, left-hand side (replaces 109395A1)

1шт.

4

123101A1

PANEL

- engine, right-hand side (replaces 109280A1)

1шт.

5

125892A1

BRACE

- right-hand rear side panels (replaces 109308A1)

1шт.

6

125894A1

BRACE

- left-hand rear side panels (replaces 109313A1)

1шт.

7

E48286

SUPPORT

BRACKET - brace, guide, left-hand side panel, if used

1шт.

8

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

10шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Rear guide brackets 3/8"

2-4шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2-4шт.

11

425-286

FLANGE NUT,Flg, 3/8"-16, G5

6-8шт.

12

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

425-285

FLANGE NUT,Flg, 5/16"-18, G5

- hex flange, 5/16 inch NC

4шт.

14

109383A1

GRILLE

- tilt, perforated, mounting holes may be holes or slots

1шт.

15

110598A1

MOLDING

BUMPER - grille, right-hand

1шт.

16

110335A1

BAR

BUMPER - grille, left-hand

1шт.

17

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

SCREW - hex flange, self-tapping, replaces 118978A1

6шт.

18

113292A1

CABLE

- hood retaining

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

19a

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- cable

2шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

22

425-286

FLANGE NUT,Flg, 3/8"-16, G5

Cable retaining, upper Flg, 3/8"-16, G5

1шт.

23

114980A1

GAS STRUT

Cylinder - spring, Hood counterbalance

2шт.

24

1340345C1

BALL STUD

STUD - ball, upper, replaces F44882

2шт.

25

109498A1

STUD

- ball, lower

2шт.

26

F44883

CLIP,DIN 71805 - S10

- ball stud retainer

4шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

28

234-10431

CROWN NUT,Crown, 5/16"-18

Upper Crown, 5/16"-18

2шт.

29

425-285

FLANGE NUT,Flg, 5/16"-18, G5

- hex, flange, 5/16 inch NC, lower

2шт.

30

112865A1

SCREW

- hex flange, self-tapping

8шт.

31

110977A1

PLATE

PIVOT - right-hand side panel

1шт.

32

111003A1

PLATE

PIVOT - left-hand side panel

1шт.

33

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

2шт.

34

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

35

110974A1

TUBE,14.275 mm ID, 25.4 mm OD, 74 mm Length

SPACER - hood pivot

2шт.

36

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

37

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

- hex flange, 3/8 NC x 1 inch

4шт.

38

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

39

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

4шт.

40

D143714

SUPPORT

BRACKET - rear guide, right-hand side panel, if used

1шт.

41

D143715

SUPPORT

BRACKET - rear guide, left-hand side panel, if used

1шт.
