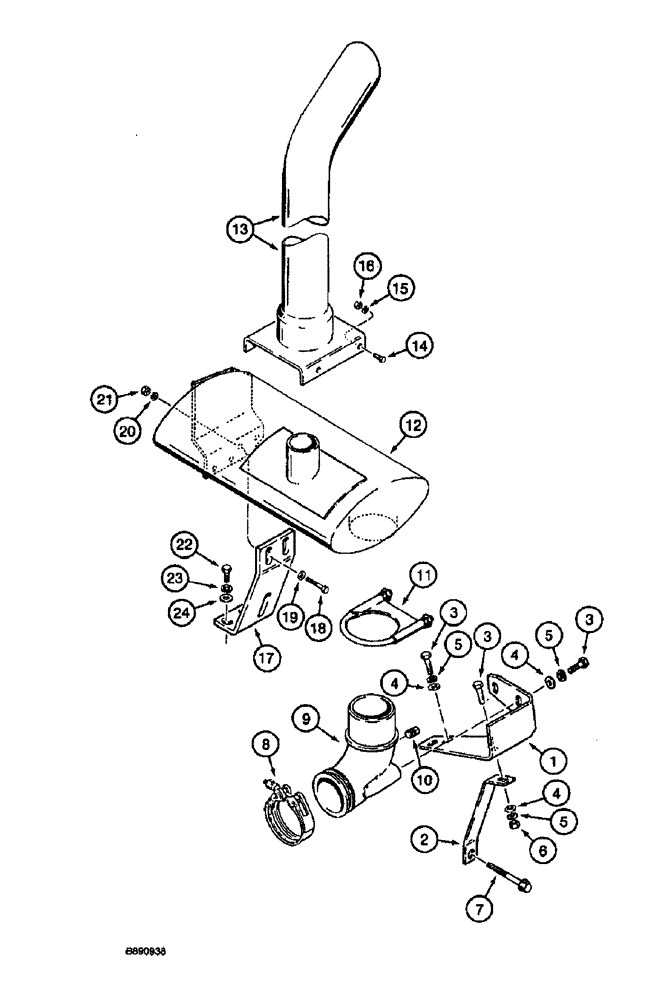

Запчасти Case 590 (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

L126939

SUPPORT

BRACKET - exhaust elbow, replaces L114429

1шт.

2

L115129

SUPPORT

BRACE - exhaust bracket

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

5шт.

5

892-11010

LOCK WASHER,M10

5шт.

6

825-1410

NUT,M10, Cl 8

1шт.

7

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

- hex flange, 10 mm - 1.5 x 80 mm, replaces existing manifold bolt

1шт.

8

A170467

CLAMP,72mm ID

- T-bolt type, includes hardware, at engine

1шт.

9

A173795

ELBOW

ADAPTER - 93 degree, exhaust

1шт.

10

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

11

L14222

CLAMP,79.25mm ID

- at muffler, includes hardware, replaces L73711

1шт.

12

A184890

MUFFLER

- engine exhaust

1шт.

13

D151014

PIPE

- exhaust, muffler extension (replaces D136087 pipe)

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

17

A189275

SUPPORT

BRACKET - muffler support

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

See Figure 4-14 for hardware used on models with air conditioning.

1шт.

23

892-11010

LOCK WASHER,M10

2шт.

See Figure 4-14 for hardware used on models with air conditioning.

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

See Figure 4-14 for hardware used on models with air conditioning.

1шт.
