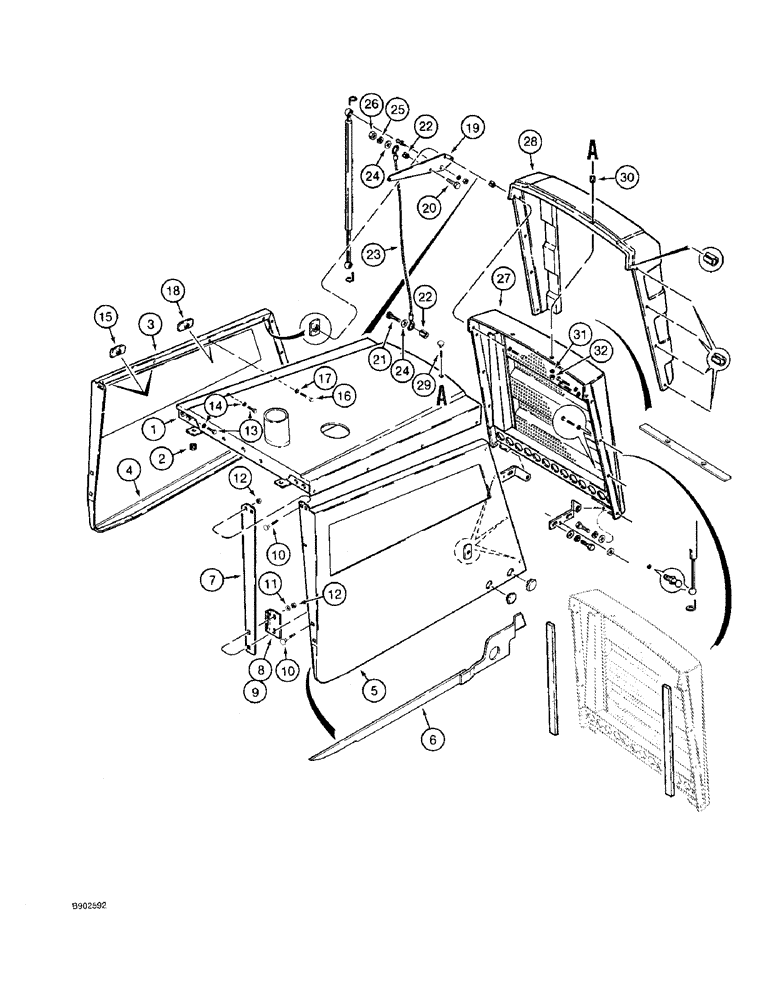

Запчасти Case 590 (9-072) - HOOD, ENGINE SIDE PANELS AND GRILLE UNIT (09) - CHASSIS/ATTACHMENTS

1

D144409

COWL

HOOD - engine, if used

1шт.

Also see Figure 9-75A for hood.

1шт.

2

D145721

BUMPER

- hood to air cleaner mounting bracket

2шт.

3

D143245

COWL

PANEL - engine, left-hand side, Includes: Ref. 4

1шт.

4

D143260

SUPPORT

PLATE - support, side panel stiffener

1шт.

5

D143244

PANEL, SIDE

PANEL - engine, right-hand side, Includes: Ref. 6

1шт.

6

D143259

SUPPORT

PLATE - support, side panel stiffener

1шт.

7

D134654

PLATE

- engine side panels, rear guide

2шт.

8

D143714

SUPPORT

BRACKET - rear guide, right-hand side panel

1шт.

Ref. 8 and 9, this is a bracket that has a rubber lip, that reduces metal to metal contact and vibration.

1шт.

9

D143715

SUPPORT

BRACKET - rear guide, left-hand side panel

1шт.

Ref. 8 and 9, this is a bracket that has a rubber lip, that reduces metal to metal contact and vibration.

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), At rear guide brackets 3/8", SAE

4шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

129-468

NUT

- weld, 1/4 inch NC

4шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

129-468

NUT

- weld, 1/4 inch NC

2шт.

19

D143903

SUPPORT

BRACKET - cylinder retaining, hood

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, upper cable mounting

2шт.

21

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW - self-tapping, hex head, 3/8 NC x 1 inch, lower cable mounting

2шт.

22

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- cable (replaces D123539 spacer)

4шт.

23

D133403

CABLE

- steel, hood retaining

2шт.

24

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

25

492-11038

LOCK WASHER,3/8"

upper cable mounting only 3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

Upper cable mounting only 3/8"-16, G5

2шт.

27

D143506

GRILLE ASSY

GRILLE - tilt

1шт.

28

D143461

GRILLE

GUARD - grille, rubber

1шт.

29

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

2шт.

30

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- plate, special

2шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
