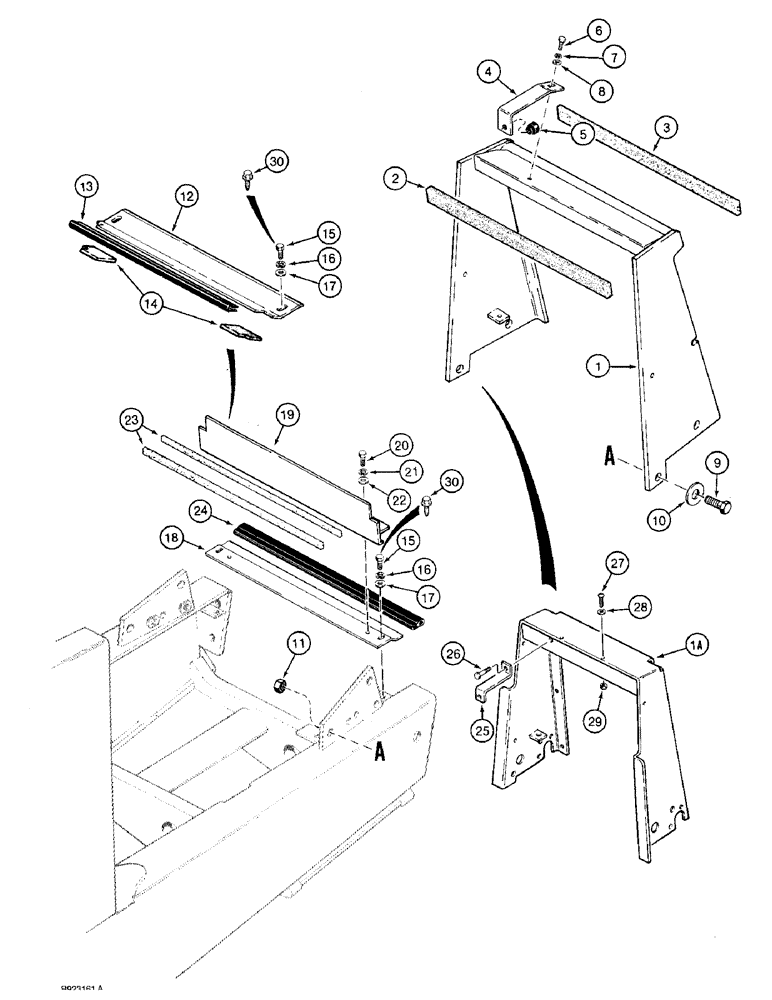

Запчасти Case 590 (9-070) - RADIATOR SHROUD AND FRONT COVERS (09) - CHASSIS/ATTACHMENTS

1

D148409

SUPPORT

SHROUD - radiator, used with D144409 hood on figure 9-72, if used

1шт.

1a

109380A1

PLATE

SHROUD - radiator, used with 111565A1 hood on figure 9-75A, if used

1шт.

2

D135947

SEAL

- foam, 19 mm thick, adhesive back on one side, attaches to upper rear of cross tube of shroud

1шт.

3

D147888

SEAL

- 38 x 570 x 12 mm thick, cut from D92228 bulk, attaches to upper front of cross tube of Ref. 1 shroud, if used

1шт.

4

D132477

BRACKET

- radiator retaining, used with Ref. 1 shroud, if used

1шт.

5

L60224

BUMPER

- rubber

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, if used

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

1шт.

9

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch (replaces 413-1232 2 inch bolt)

4шт.

10

495-11081

WASHER,3/4", SAE

4шт.

11

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

12

D148109

BAFFLE

PLATE - baffle, upper, used on models without air conditioning

1шт.

13

D128489

LINING

SEAL - 496 mm long, cut from F43117 bulk seal, see below, upper baffle plate

1шт.

14

D148217

SEAL

- (2) 57 x (2) 34 x 12 mm thick, cut from D92228 bulk, outer edge of baffle plate

2шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, if used

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , If used 5/16"

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

2шт.

18

D141013

PLATE

- baffle, lower, used on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

19

111980A1

LARGE PLATE

PLATE - baffle, lower, used with Ref. 23 seal and Ref. 18 plate on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments, if used (replaces D140971)

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

23

D140871

BAND

SEAL - 560 mm long, cut from D126201 bulk, used with Ref. 19 plate, 2 used on models with air conditioning, if used

1-2шт.

24

D135944

SEAL

- 576 mm long, cut from F43117 bulk seal, see below, lower baffle plate

1шт.

25

116129A1

BRACKET

- radiator retaining, used with Ref. 1A shroud, if used (replaces 107237A1)

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

1шт.

27

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch, if used

4шт.

28

109879A1

SPACER,5.5mm ID x 30mm OD

- plastic, hood, if used

4шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, , If used #10-24, GB

4шт.

30

112865A1

SCREW

- hex flange, self-tapping, replaces Ref. 15-17 on some models

2шт.

D92228

BAFFLE

SEAL - 900 x 1400 x 38 mm, foam, adhesive back, bulk pad

1шт.

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL - 912 mm long, adhesive back, bulk

1шт.

F43117

SEAL

- 100 ft (3048 cm) long, bulk

1шт.

345-44

ADHESIVE

- spray can, for attaching foam pads to metal surfaces (purchase locally)

1шт.
