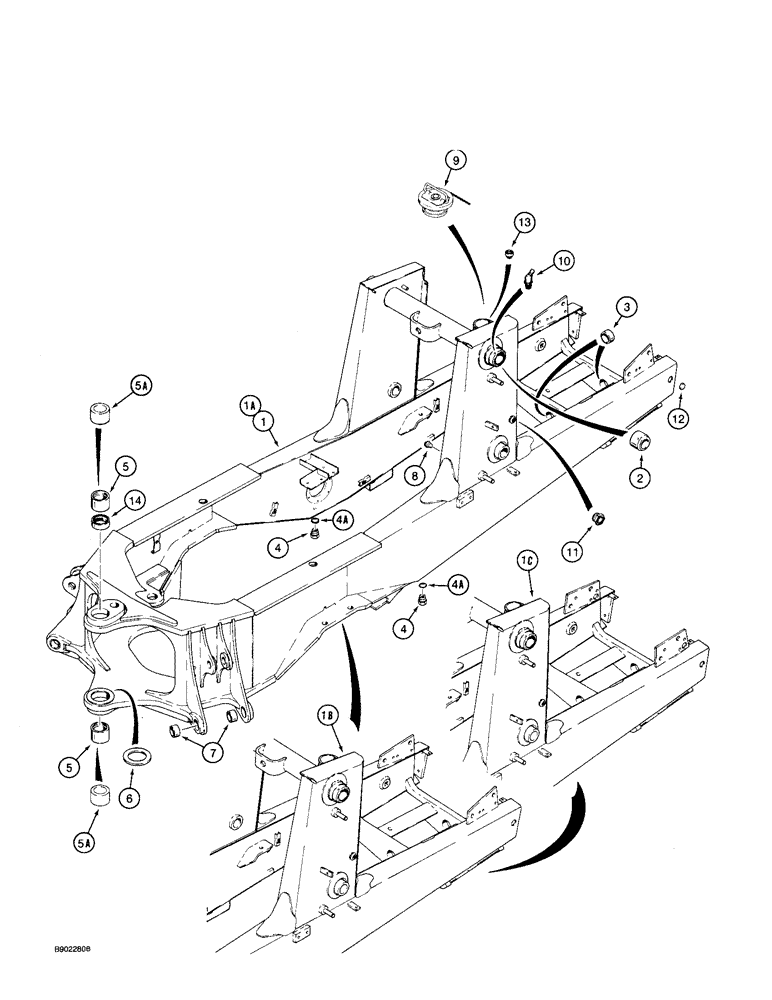

Запчасти Case 590 (9-068) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D150808

CHASSIS

loader with integral backhoe, threaded tapped holes for tie bar mounting, tie bar mounting shown Fig. 6-24, Replaces D148330, Includes: (1) P/N D149816, and (4) P/N D127974, Includes: Ref. 2 - 8, Serial Range: -JJG0206421

1шт.

If used, use with P/N D144409 hood on Fig 9-72

1шт.

1a

D150748

CHASSIS loader with integral backhoe, uses Ref. 5A, P/ND151058, bushing without grease seal, Includes: Ref. 2 - 8, Serial Range: JJG0206421-JJG0206622

1шт.

If used, use with P/N D144409 hood on Fig 9-72

1шт.

1b

D151196

CHASSIS loader with integral backhoe, uses Ref. 5A, P/N D151058, bushing without grease seal, Includes: Ref. 2 - 8, Serial Range: JJG0206623-JJG0206700

1шт.

If used, use with P/N D144409 hood on Fig 9-72

1шт.

1c

111608A1

CHASSIS

loader with integral backhoe, uses Ref. 5A, P/N D151058, bushing without grease seal, Includes: Ref. 2 - 8, Start Serial: JJG0206701

1шт.

If used, use with P/N 111565A1 hood on Fig. 9-75B.

1шт.

2

D145795

BUSHING

- loader frame pivot

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

- front axle pivot

2шт.

4

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss, Includes: Ref. 4A

2шт.

4a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

D149816

BUSHING

- backhoe frame, swing tower mounting, with grease seal retaining groves, used with (2) Ref. 14, D127974 grease seals, D150808 chassis only

2шт.

5a

D151058

BUSHING,70.19mm ID x 90mm OD x 63mm L

- backhoe frame, swing tower mounting, D150748, D151196, and 111608A1 chassis (replaces D150753 bushing)

2шт.

6

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

- 93 mm x 135 mm x 6 mm, Serial Range: bearing,welds-frame

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- lower, side, backhoe frame, at stabilizer leg, mounting

4шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2 inch NPT, replaces 444789

1шт.

9

D93981

FILLER CAP

CAP - hydraulic oil reservoir, right-hand

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch, loader frame pivot

2шт.

11

D63875

PLUG

GAUGE - sight, hydraulic oil level

1шт.

12

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter, expansion, replaces 41-1020

2шт.

13

N8796

PLUG

BREATHER - hydraulic oil fill tube

1шт.

14

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

- backhoe frame, at swing tower mounting, D150808 chassis

4шт.

A51390

CAP

fuel, not shown, sub P/N D93757

1шт.
