(9-066) - FRONT COUNTERWEIGHT

Запчасти Case 590 (9-066) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

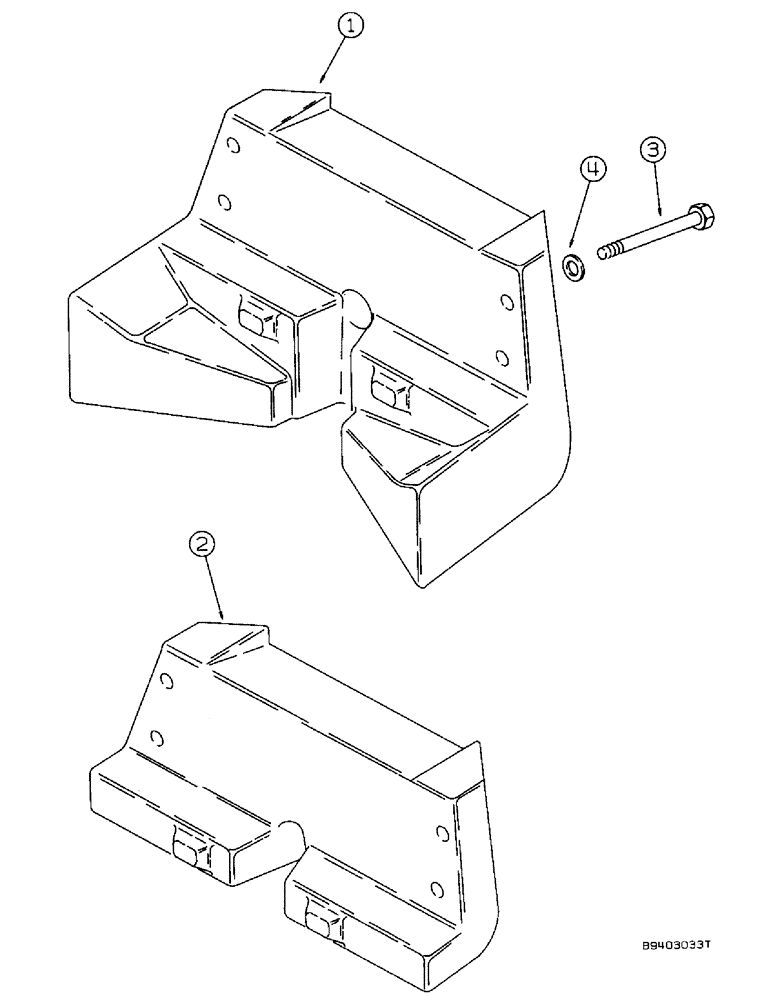

Схема запчастей Case 590 - (9-066) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D141716

BALANCER

COUNTERWEIGHT - front, 900 lbs (408 kg), if used

1шт.

2

D141717

BALANCER

COUNTERWEIGHT - front, 400 lbs (181 kg), if used

1шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

4шт.

4

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

4шт.
