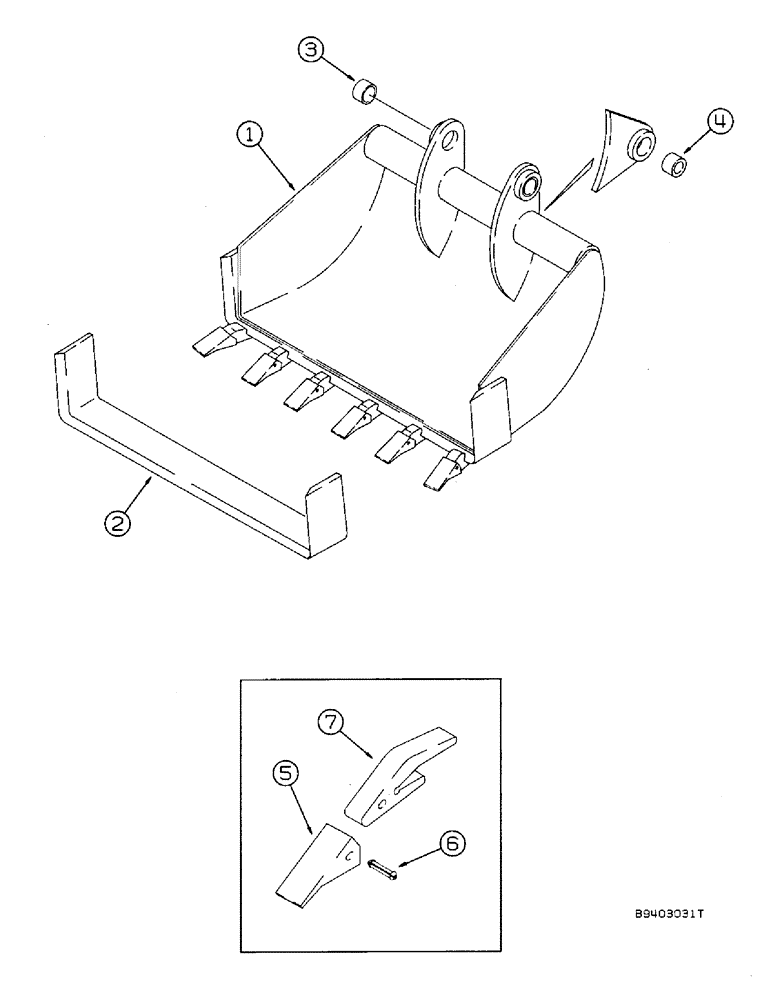

Запчасти Case 590 (9-064) - BACKHOE BUCKET, 36 INCH (914 MM) WIDE, COMBINATION BELLHOLE AND GRAVEYARD BUCKET (09) - CHASSIS/ATTACHMENTS

1

D140576

BUCKET

ASSEMBLY - 36 inch (914 mm), with 6 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 7

1шт.

2

NLS

NO LONGER SERVICED

EDGE - cutting, bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link pin hole, lower

2шт.

D41659

TOOTH

ASSEMBLY - bucket, Includes: Ref. 5 - 7

6шт.

5

D39093

TOOTH

POINT - tooth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.
