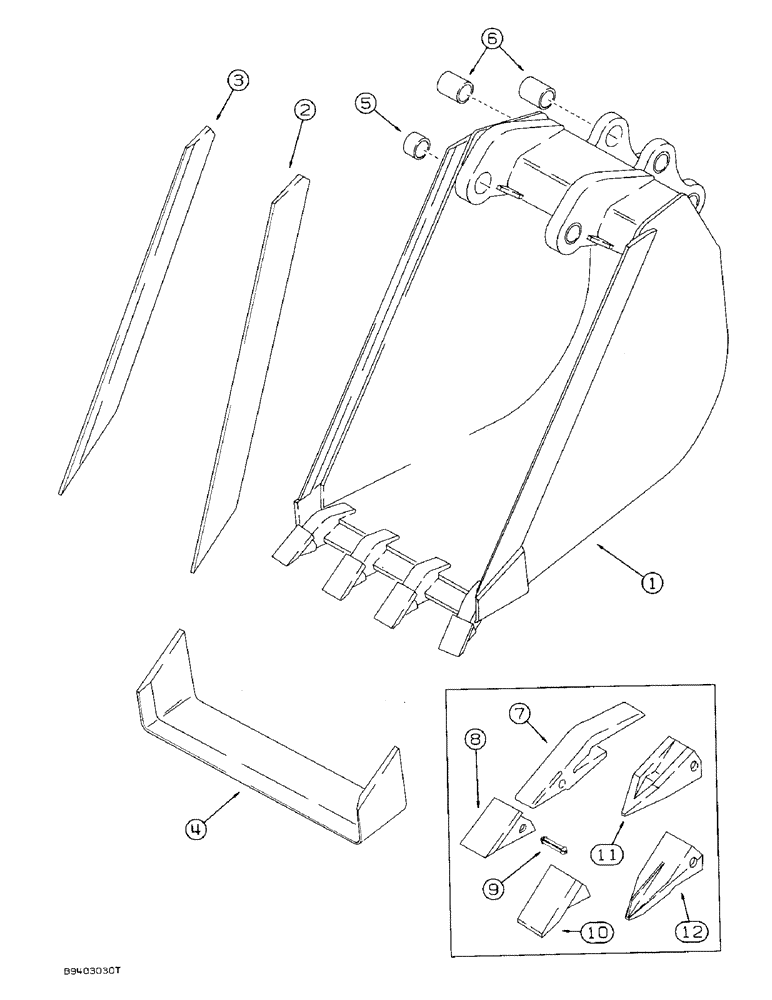

Запчасти Case 590 (9-062) - BACKHOE BUCKET,24" (610 MM) WIDE & 30" (762 MM) WIDE,24" (610MM) WIDE HIGH CAPACITY TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

ASSEMBLY - 24 inch (610 mm), with 4 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 9

1шт.

2

L70084

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D41673

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket links

4шт.

L43266

TOOTH

ASSEMBLY - high capacity bucket, Includes: Ref. 7 - 9

4шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D39093

TOOTH

POINT - tooth

1шт.

9

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

1

L107716

BUCKET

ASSEMBLY - 30 inch (762 mm), with 5 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6, wide high capacity trenching bucket

1шт.

2

L70084

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 30 inch (762 mm) wide high capacity trenching bucket

1шт.

3

L70083

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 30 inch (762 mm) wide high capacity trenching bucket

1шт.

4

D41870

EDGE, CUTTING

EDGE - cutting, bucket, center, 30 inch (762 mm) wide high capacity trenching bucket

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, upper, 30 inch (762 mm) wide high capacity trenching bucket

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, lower, 30 inch (762 mm) wide high capacity trenching bucket

4шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option, optional bucket teeth

1шт.

11

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option, optional bucket teeth

1шт.

12

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option, optional bucket teeth

1шт.

13

D51750

BUCKET TOOTH POINT

POINT - tooth, heavy duty service option, not shown, optional bucket teeth

1шт.
