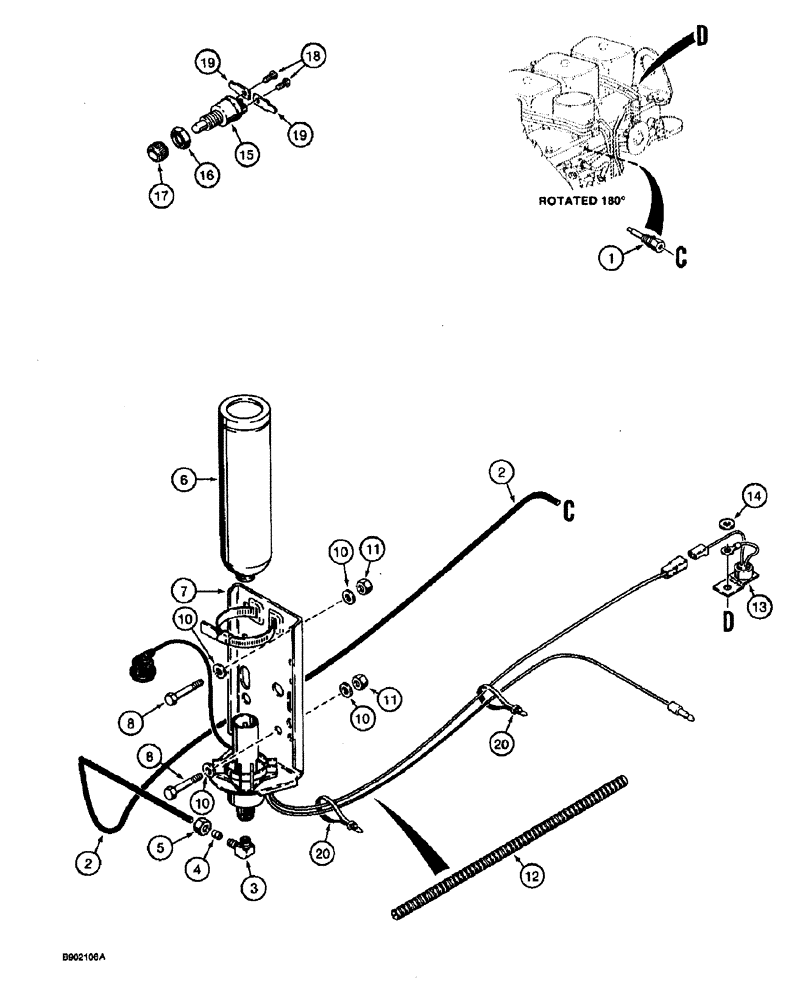

Запчасти Case 590 (2-10) - COLD START SYSTEM (02) - ENGINE

1

A189154

JET

NOZZLE ASSEMBLY - cold start injector, .008 dual orifice nozzle, component parts not serviced seperately component parts not serviced seperately

1шт.

2

D145367

TUBE

- 30 inch (762 mm) long, valve to injector nozzle, cut to required length from L60539 bulk tube, see below

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Incl. Ref 3 - 5 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

6

A171940

CYLINDER

CONTAINER - ether

1шт.

7

A172116

VALVE

ASSEMBLY - 3 cc starting fluid injection, component parts not serviced seperately

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

2шт.

12

D128402

PLASTIC-RUBBER TUBE

SLEEVE - wire guard, 380 mm long

1шт.

13

A187923

SWITCH

- temperature, circuit breaking, uses existing intake manifold mounting hardware

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

L72776

SWITCH

ASSEMBLY - cold start, must also order (2) L59682 blade terminals (Ref. 19), Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

16

H275784

JAM NUT

- hex, jam, special

1шт.

17

D73741

NUT

- hex, special

1шт.

18

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- machine, round head slotted, No. 10 NF x 1/4 inch

2шт.

19

L59682

TERMINAL CONNECTOR

TERMINAL - blade, used with L72776 switch

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

L60539

TUBE,0.125" OD x 168" L

- 14 foot, bulk roll

1шт.
