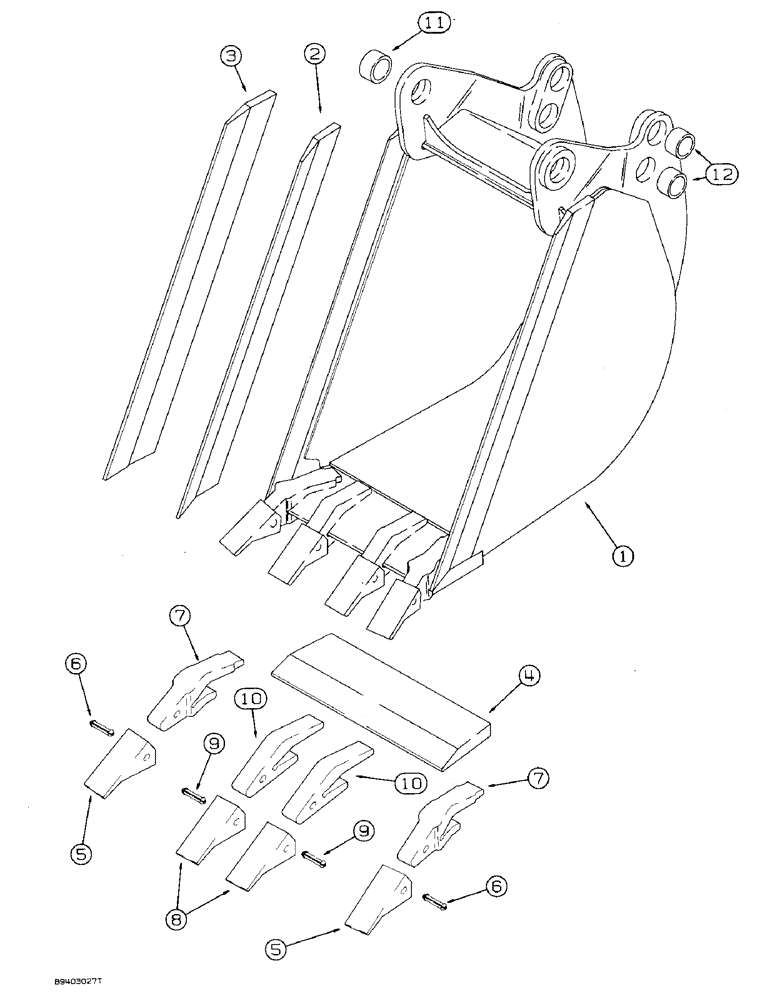

Запчасти Case 590 (9-056) - BACKHOE BUCKETS, 18" (457 MM) & 24" (610 MM) WIDE, 18" (457MM) WIDE TRENCHING BUCKETS & TEETH- HEAVY (09) - CHASSIS/ATTACHMENTS

1

D145050

BUCKET

ASSEMBLY - 18 inch (457 mm), with 4 teeth, machinery item, order from the Machinery Price List, also see figure 9-54 for 18 inch Universal bucket, Includes: Ref. 2 - 12

1шт.

2

D134982

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE - cutting, center, 18 inch (457 mm) bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH ASSEMBLY - center (order components), Includes Ref 8 - 10

2шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 ID x 2-1/4 O.D. x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 ID x 1-7/8 O.D. x 1-1/4 inch

4шт.

1

D145051

BUCKET

ASSEMBLY - 24 inch (610 mm), with 5 teeth, not shown, machinery item, order from the Machinery Price List, also see figure 9-59 for 24 inch Universal bucket, Includes: Ref. 2 - 12, wide trenching, heavy duty

1шт.

2

D134982

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

3

D134983

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE - cutting, center, 24 inch (610 mm) bucket, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

7

D138157

SHANK

- tooth, outer corners, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH ASSEMBLY - center (order components), Includes Ref 8 - 10, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

3шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

10

D48212

SHANK

- tooth, center, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 ID x 2-1/4 O.D. x 1-1/4 inch, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 ID x 1-7/8 O.D. x 1-1/4 inch, 24 inch (610 mm) wide trenching buckets and teeth, heavy duty

4шт.
