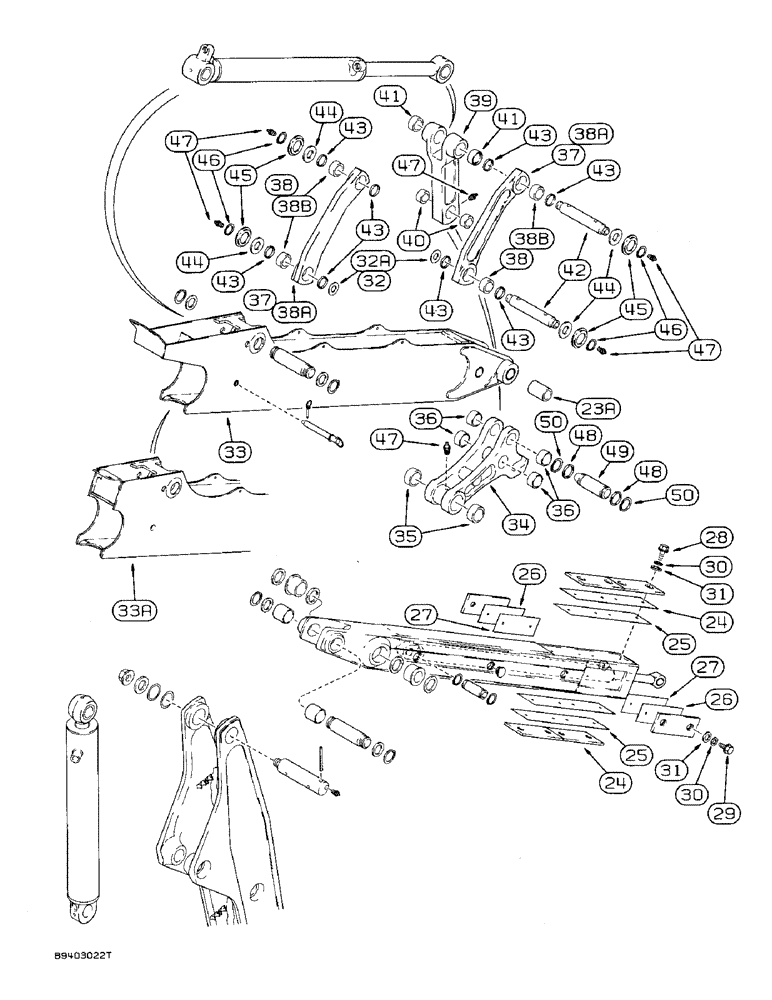

Запчасти Case 590 (9-050) - EXTENDABLE DIPPER (CONT) (09) - CHASSIS/ATTACHMENTS

23a

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

- 45 mm ID x 94 mm long, bucket coupler pivot

2шт.

24

D140874

BLOCK

SHIM - 1.6 mm thick, wear plate

1шт.

25

D140873

BLOCK

SHIM - 0.8 mm thick, wear plate

1шт.

26

D140886

SHIM,116mm OD x 1.6mm Thk

SHIM - 1.6 mm thick, wear plate

1шт.

27

D140885

BLOCK

SHIM - 0.8 mm thick, wear plate

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex flange, self-locking, 3/8 NC x 3/4 inch

8шт.

29

D143961

FLANGE BOLT,Hex, 3/8"-16 x 1/2", Serr

BOLT - hex flange, self-locking, 3/8 NC x 1/2 inch

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

4-12шт.

31

D143167

WASHER

- special

12шт.

32

D143431

WASHER

- flat, 2-5/64 x 3 x 9/32 inch, special, used as spacer between outer dipper housing and bucket guide links, no longer used, order 495-81282 washer, Ref. 32A

2шт.

32a

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch, used as a spacer between outer dipper housing and bucket guide links

2шт.

33

D144394

DIPPER

HOUSING - dipper, outer, if used

1шт.

33a

108942A1

DIPPER

HOUSING - dipper, outer, if used

1шт.

134437A1

COUPLING

COUPLER ASSEMBLY - bucket (replaces D139084), Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

COUPLER - backhoe bucket

1шт.

35

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

- 30 mm long, special, at dipper

2шт.

36

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long, at bucket link

4шт.

37

D141468

PITMAN

LINK - 25 mm wide bushing, bucket guide, used with Ref. 43 grease seal, no longer available, order D150608 link, Ref. 38A, Includes: Ref. 38, Serial Range: -JJG0206421

2шт.

38

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

- 50 x 60 x 25 mm

2шт.

38a

D150608

PITMAN

LINK - 33 mm wide bushing, used without grease seals, bucket guide, Includes: Ref. 38B, Start Serial: JJG0206421

2шт.

38b

D150122

BUSHING

- 50 x 60 x 33 mm

2шт.

39

D150080

PITMAN

LINK - bucket dump, with two bushings at forked end (replaces D140007 link), Includes: Ref. 40 and 41

1шт.

40

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long

2шт.

41

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm long

2шт.

42

D141142

PIN,50mm OD x 306mm L

306 mm long

2шт.

43

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

- grease, D141468 link

8шт.

44

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

45

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

- 1-13/16 x 3 x 1/8 inch

4шт.

46

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.

48

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

49

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

50

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.
