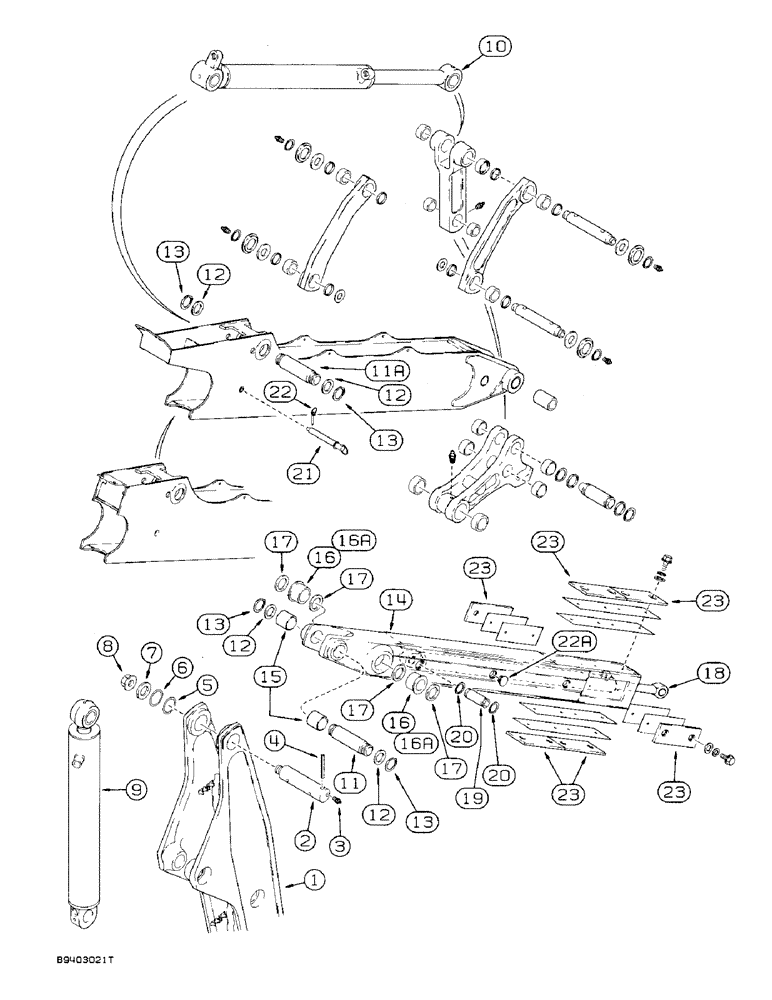

Запчасти Case 590 (9-048) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM - backhoe, complete, for correct assembly and components, see figure 9-38

1шт.

2

D151057

PIN

- boom to dipper (replaces D149811)

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

4

135-827

GROOVED PIN,1/2" x 3 3/4", Type E, Hardened

Pin, Grooved, 1/2" x 3 3/4", Type E, Hardened

1шт.

5

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

Boom to dipper 1.57mm Thk

1шт.

6

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

Boom to dipper 3.05mm Thk

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

- flat, hardened, special

1шт.

8

D120610

NUT

- hex, 1-3/4 NF, special

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper, for correct assembly and components, see figure 8-118 or 8-120

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, for correct assembly and components, see page 8-122 or 8-124

1шт.

11

D150496

PIN

- 230 mm long, cylinder mounting (replaces D144035 226 mm long pin)

1шт.

11a

D146924

PIN

- bucket cylinder mounting

1шт.

12

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

- 67 mm x 83 mm x 2 mm

1шт.

13

800-40065

SNAP RING,M65, Ext

RING - snap, pin retaining

4шт.

D144438

HOUSING

DIPPER ASSEMBLY - extension, inner, includes grease seal and grooved bushing at boom to dipper pivot, if used

1шт.

D150963

BOOM

DIPPER ASSEMBLY - extension, inner, without grease seal at boom to dipper pivot, includes Ref. 14 - 17, if used

1шт.

14

NSS

NOT SOLD SEPARAT

DIPPER - inner, D144438 or D150963 dipper

1шт.

15

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

- 70 x 50 mm long, dipper cylinder rod end pivot, D144438 or D150963 dipper

2шт.

16

D144163

BUSHING

- 80 x 46 mm long boom to dipper pivot, with grease seal groove, D144438 dipper

2шт.

16a

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

- 80 ID x 46 mm long, boom to dipper pivot, without groove for grease seal, D150963 dipper (replaces D150755)

2шт.

17

D144171

SEAL

- grease, D144438 dipper

4шт.

18

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

ASSEMBLY - dipper extension, parts list figure 8-126

1шт.

19

D129892

PIN

- dipper extension cylinder closed end

1шт.

20

800-44040

SNAP RING,M40, Ext

RING - snap, pin retaining

2шт.

21

D140247

LOCK PIN,25.4mm OD x 232.6mm L

PIN, LOCK, Used at dipper extension cylinder closed end when transporting only, Used with item 22 lock pin

1шт.

22

A33509

PIN,11.18mm OD

- lock

1шт.

22a

D133865

PLUG

- plastic, inner dipper extension

4шт.

23

D141998

LARGE PLATE

PLATE - wear, plastic

6шт.
