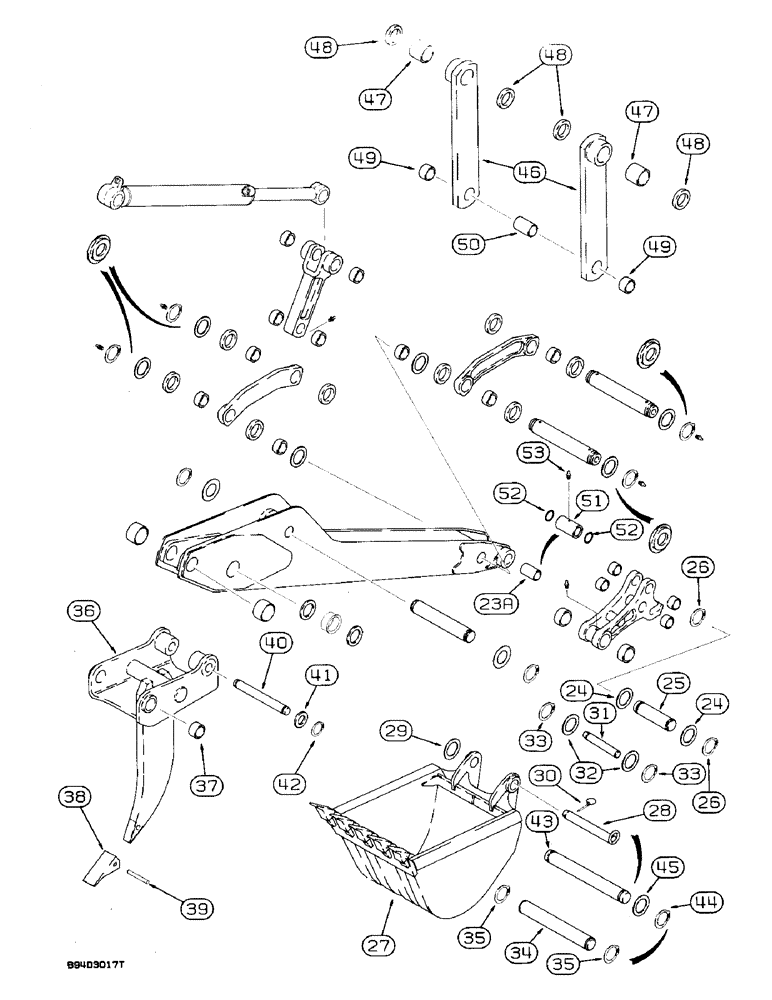

Запчасти Case 590 (9-046) - BACKHOE DIPPER AND BUCKET, OPTIONAL BACKHOE BUCKET LINKS (09) - CHASSIS/ATTACHMENTS

23a

D127168

BUSHING,44.6mm ID x 57.15mm OD x 94mm L

- 45 mm ID x 94 mm long, bucket coupler pivot

2шт.

24

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

25

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

26

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

27

REF

INSTRUCTION

BUCKET - backhoe, see figures 9-52 - 9-64 for bucket options

1шт.

28

D140655

PIN,44.29mm OD x 349mm L

- dipper to bucket, all buckets except 12 inch (305 mm) buckets, for models with 12 inch bucket see Ref. 34 pin; D140655 pin no longer used, order D150619 pin, (2) 103-16175ring, and 495-81226 washer, Ref. 43-45 below

1шт.

29

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

30

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - lock, if used

1шт.

31

D37614

PIN,38mm Od x 246mm L

- bucket coupler

1шт.

32

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

- spacer, 38 mm x 64 mm x 2 mm

2шт.

33

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

34

D149298

PIN,44.38mm OD x 331mm L

- dipper to bucket, 12 inch (305 mm) Universal bucket only

1шт.

35

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

D140679

BRACKET

POINT ASSEMBLY - frost, backhoe, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

37

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- front point pivot

2шт.

38

D83306

POINT

- tooth

1шт.

39

D43417

PIN

- tooth point

1шт.

40

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point

1шт.

41

495-81292

WASHER,1.56" ID x 3.25" OD x 0.18" Thk

- flat, 1-9/16 x 3-1/4 x 3/16 inch

2шт.

42

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

43

D150619

PIN,44.29mm OD x 372.6mm L

- Dipper to bucket, all buckets except 12 inch (305 mm) buckets, for models with 12 inch bucket see Ref. 34 pin

1шт.

44

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Dipper to bucket pin (Replaces D25280) #175, Ext

2шт.

45

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

D141074

PITMAN

LINK ASSEMBLY - bucket, used with Ref. 13 link, may replace Ref. 10 coupler and Ref. 15 link on figure 9-44 for some attachments, Includes: Ref. 46 - 49, optional backhoe bucket links for rear attachments

2шт.

46

NSS

NOT SOLD SEPARAT

LINK - attachment, optional backhoe bucket links for rear attachments

1шт.

47

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 2-1/8 inch (54 mm) long, cylinder pivot, optional backhoe bucket links for rear attachments

1шт.

48

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

- grease, optional backhoe bucket links for rear attachments

2шт.

49

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 1 inch (25 mm) long, pivot, optional backhoe bucket links for rear attachments

1шт.

50

D141075

SPACER,40mm ID x 46.86mm OD x 71mm L

- 2-25/32 inch (71 mm) long, links, optional backhoe bucket links for rear attachments

1шт.

51

D141076

SPACER,57.17mm ID x 76.2mm OD x 138mm L

- 5-7/16 inch (138 mm) long, dipper end, optional backhoe bucket links for rear attachments

1шт.

52

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Spacer, Replaces A14506, optional backhoe bucket links for rear attachments -228, 70 Duro, 2.234" ID x .139" Thk

2шт.

53

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, optional backhoe bucket links for rear attachments

1шт.
