Запчасти Case 590 (9-044) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

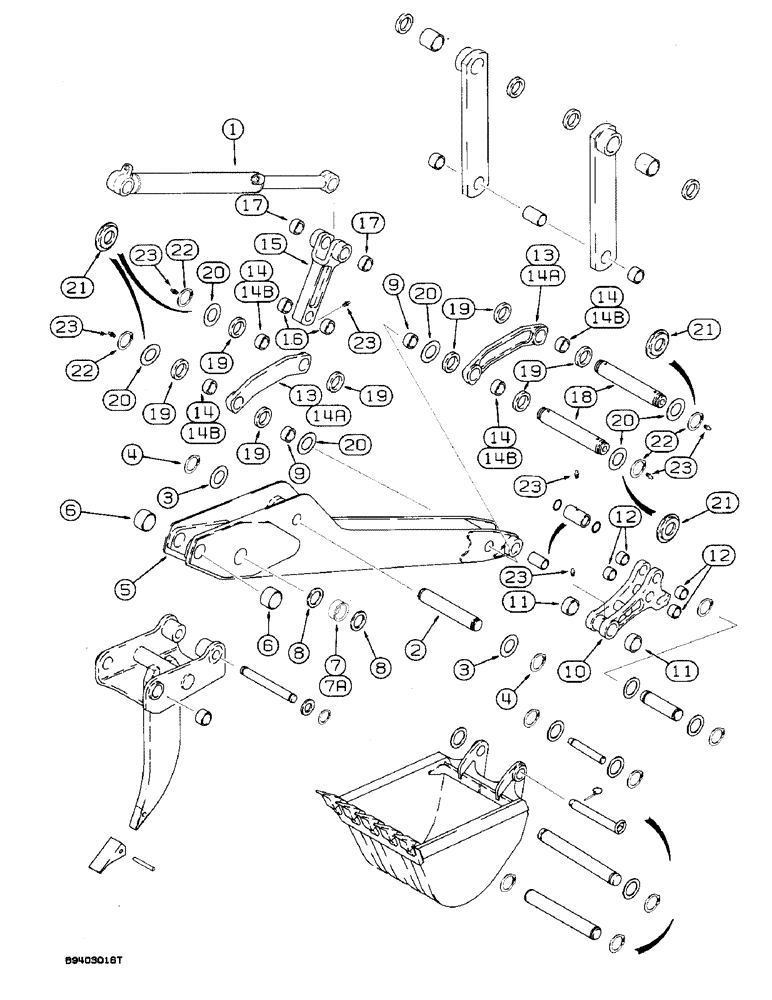

Схема запчастей Case 590 - (9-044) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS
16
22
14
21
14b
20
23
6
7
6
1
22
19
10
14a
17
14b
4
21
20
8
23
23
17
12
13
19
14a
22
20
11
19
19
3
14
20
8
9
15
23
11
14
19
14b
7a
19
9
4
21
23
23
20
2
18
13
12
3
14
5
14b

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, for correct assembly and components, see figure 8-122 or 8-124

1шт.

2

D146924

PIN

- bucket cylinder closed, Serial Range: end-dipper

1шт.

3

H433285

SPACER

SHIM - 1.5 mm thick

1шт.

4

N6263

SNAP RING,M55, Ext

RING - snap, pin retaining

2шт.

D144361

BOOM

DIPPER ASSEMBLY - backhoe, includes grease seal and grooved bushing at boom to dipper pivot, if used

1шт.

D150936

BOOM

DIPPER ASSEMBLY - backhoe, without grease seal at boom to dipper pivot, includes Ref. 5 - 9, if used

1шт.

5

NSS

NOT SOLD SEPARAT

DIPPER - backhoe, D144361 or D150936 dipper

1шт.

6

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

- 70 ID x 46 mm long, D144361 or D150936 dipper

2шт.

7

D144163

BUSHING

- 80 ID x 46 mm long, with grease seal groove, D144361 dipper

2шт.

7a

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

- 80 x 100 x 46 mm long, without groove for grease seal, D150936 dipper (replaces D150755)

2шт.

8

D144171

SEAL

- grease, D144361 dipper

4шт.

9

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

- 50 ID x 25 mm long, bucket link pivot, D144361 or D150936 dipper

2шт.

134437A1

COUPLING

COUPLER ASSEMBLY - bucket (replaces D139084), Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

COUPLER - backhoe bucket

1шт.

11

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

- 30 mm long, special, at dipper

2шт.

12

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long, at bucket link

4шт.

13

D141468

PITMAN

LINK - 25 mm wide bushing, used with Ref. 19 grease seal, bucket guide, no longer available, order D150608 link, Ref. 14A, Includes: Ref. 14, Serial Range: -JJG0206421

2шт.

14

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

- 50 x 60 x 25 mm

2шт.

14a

D150608

PITMAN

LINK - 33 mm wide bushing, used without grease seals, bucket guide , Includes: Ref. 14B, Start Serial: JJG0206421

2шт.

14b

D150122

BUSHING

- 50 x 60 x 33 mm

2шт.

15

D150080

PITMAN

LINK - bucket dump, with two bushings at forked end (replaces D140007 link), Includes: Ref. 16 and 17

1шт.

16

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long

2шт.

17

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm long

2шт.

18

D141142

PIN,50mm OD x 306mm L

306 mm long

2шт.

19

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

- grease, D141468 links, Ref. 13

8шт.

20

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

21

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

- 1-13/16 x 3 x 1/8 inch

4шт.

22

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.
