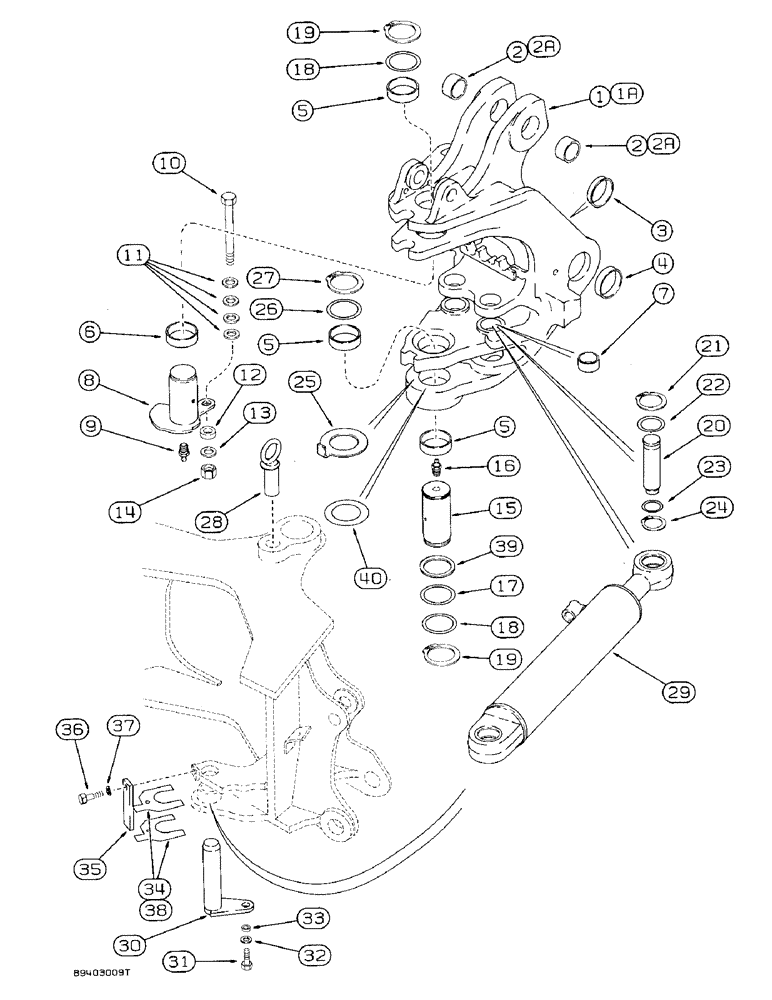

Запчасти Case 590 (9-036) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D149864

CASING

TOWER ASSEMBLY - backhoe swing, 38 mm wide bushing at boom cylinder pivot, Includes: Ref. 2 - 7, Serial Range: -JJG0206421

1шт.

1a

D150926

CASING

TOWER ASSEMBLY - backhoe swing, 32 mm wide bushing at boom cylinder pivot, Includes: Ref. 2 - 7, Start Serial: JJG0206421

1шт.

2

D145180

BUSHING

- 80 x 100 x 38 mm wide, boom cylinder pivot, D149864 tower

2шт.

2a

D151061

BUSHING,80.19mm ID x 100mm OD x 32mm L

- 80 x 100 x 32 mm wide, boom cylinder pivot, D150926 tower (replaces D150901)

2шт.

3

D144162

BUSHING,80.19mm ID x 94mm OD x 17mm L

- inner, boom pivot

2шт.

4

D144170

BUSHING,80.19mm ID x 90mm OD x 20mm L

- outer, boom pivot

2шт.

5

D151060

BUSHING,70.19mm ID x 90mm OD x 30mm L

- 30 mm thick, swing tower pivot (replaces D149830)

3шт.

6

D149831

BUSHING

- 27 mm thick, swing tower pivot

1шт.

7

D145978

BUSHING,50.19mm ID x 60mm OD x 30mm L

- swing cylinder pivot

4шт.

8

129328A1

PIN

- upper, swing tower to frame (replaces D149817)

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

10

426-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 8

- hex, 1/2 NC x 7 inch, grade 8

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

12

D139603

SPACER

- pin mounting

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

14

231-1448

NUT,1/2"-13, GB

- light hex, self-locking, 1/2 inch NC

1шт.

15

D151053

PIN

- lower, swing tower to frame, grease fitting mounts in top of pin, without groove pin (replaces D149815)

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

17

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD) 1.57mm Thk

1шт.

18

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

- 67 mm x 83 mm x 2 mm

1шт.

19

800-40065

SNAP RING,M65, Ext

RING - snap, pin retaining

2шт.

20

D150504

PIN,50.04mm OD x 168.5mm L

- swing cylinder rod end to swing tower

2шт.

21

800-44050

SNAP RING,M50, Ext

RING - snap

2шт.

22

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

23

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

24

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

25

D144111

WASHER

- bearing, special, swing tower

1шт.

26

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD), Upper 3.05mm Thk

1шт.

27

800-40070

SNAP RING,M70 Ext

RING - snap, pin retaining, upper

1шт.

28

D149240

PIN

- swing stop

1шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, for correct assembly and components, see figure 8-110 or 8-112

2шт.

30

D146458

PIN

- swing cylinder mounting, closed end

2шт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

32

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

33

D23740

BUSHING

- bolt

2шт.

34

D150451

SHIM,3mm Thk

Swing cylinder tube eye 3mm Thk

1шт.

35

D150452

PLATE

- shim retaining

2шт.

36

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

38

D150460

SHIM,1.6mm Thk

Swing cylinder tube eye 1.6mm Thk

1шт.

39

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

1шт.

40

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

- 2.05 mm thick, if used

1шт.
