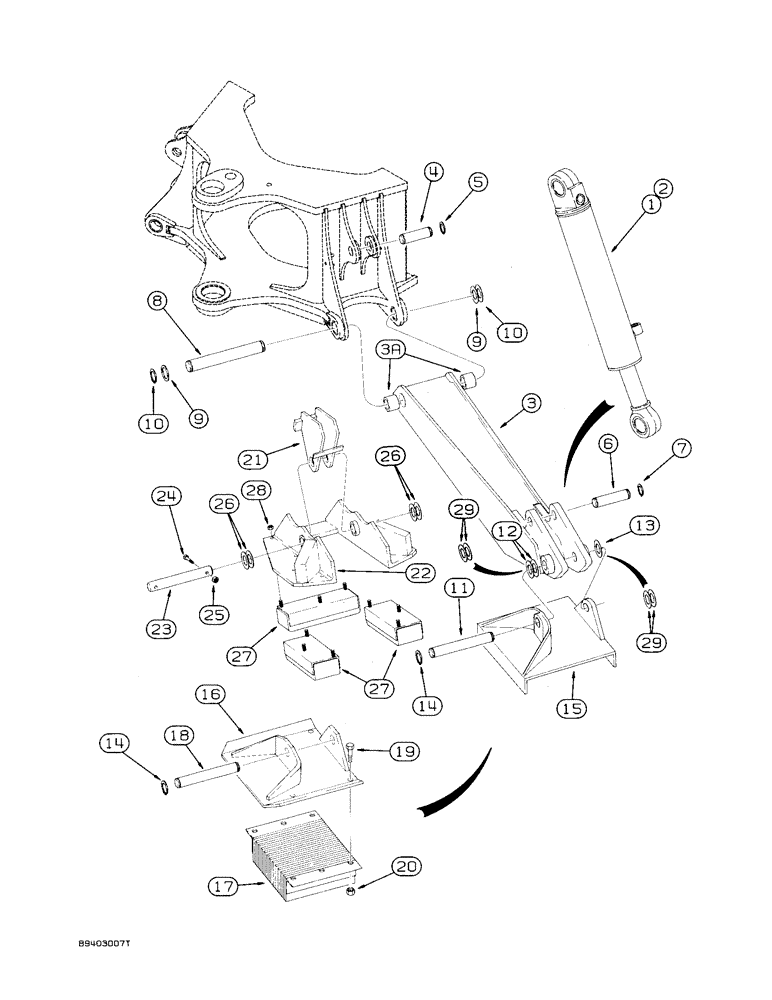

Запчасти Case 590 (9-034) - BACKHOE STABILIZERS, PLATES AND PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - stabilizer, right-hand, for correct assembly and components, see figure 8-108 or 8-109A

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - stabilizer, left-hand, for correct assembly and components, see figure 8-108 or 8-109A

1шт.

3

D146534

STABILIZER

LEG - stabilizer, Includes: Ref. 3A

2шт.

3a

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- 1-49/64 x 2-1/4 x 1-1/2 inch long

2шт.

4

D38907

PIN,1.75" OD x 5 5/16 L

- stabilizer, Serial Range: cylinder-frame

2шт.

5

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

6

R26725

PIN,152.4mm OD x 44.45mm L

- Stabilizer cylinder to leg (replaces D26002 pin) W/O Lube Fitting

2шт.

Ref#6----dlr must decide which he has--1.5 dlr must order D26002. If dlr has 1.75 pin must order R26725. this was a running change at factory, and not a sub.

1шт.

6

47857124

PIN,44.4mm OD x 152.4mm L

W Lube Fitting

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

8

D89838

PIN,44.45mm OD x 320mm L

- stabilizer, Serial Range: leg-frame

2шт.

9

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

10

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

11

D28648

PIN,1.5" OD x 10 7/16" L

- D88427 stabilizer, Serial Range: plate-leg

2шт.

12

D31312

WASHER

- spacer, 70 mm O.D. x 1.6 mm thick, hardened, no longer used, order D143406 washer, Ref. 29

1шт.

13

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer, 1-1/2 x 2-1/2 x 7/64 inch thick, no longer used, order D143406 washer, Ref. 29

1шт.

14

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

15

D88427

PLATE

- stabilizer, cleated, if used

2шт.

16

D142519

SHOE (ASSY)

PLATE - stabilizer, street or cemetery, if used

2шт.

17

D61368

PAD

Rubber, if used

2шт.

18

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - 9-3/8 inch (238 mm) long, D142519, Serial Range: plate-leg

2шт.

19

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

20

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

21

D147034

STOP

- flip over stabilizer plate

2шт.

D147316

PAD

PLATE ASSEMBLY - stabilizer, flip over, Includes: Ref. 22 - 28

2шт.

22

D147317

SKID/SHOE

PLATE - stabilizer, flip over, Category III, if used

1шт.

23

D149033

PIN,38.1mm OD x 323.5mm L

12-1/2 inch long, Plate to stabilizer leg, if used

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, If used

2шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC, If used

2шт.

26

495-81293

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

- flat, 1-17/32 x 2-1/16 x 1/8 inch, no longer used, not required

8шт.

27

D142314

SKID/SHOE

PAD - rubber, used with D147317 plate

3шт.

28

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

9шт.

29

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer, 1-17/32 x 2-23/64 x 1/8 inch

1шт.
