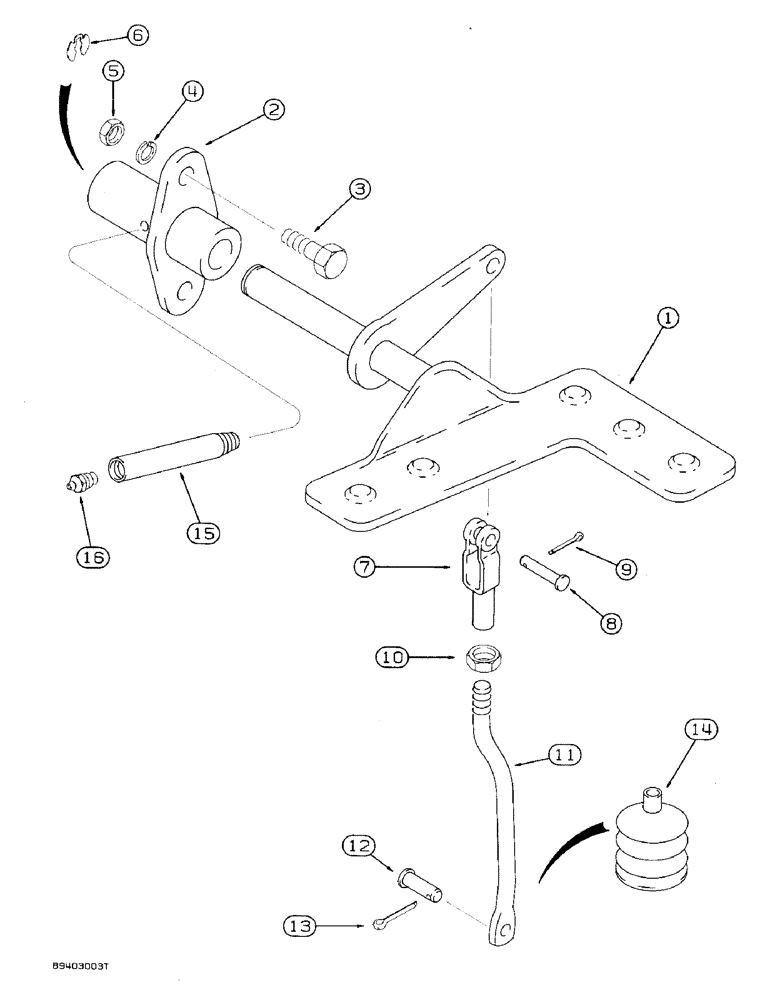

Запчасти Case 590 (9-030) - BACKHOE CONTROLS WITH HAND SWING, PARTS USED WITH EXTENDABLE (09) - CHASSIS/ATTACHMENTS

1

D150477

PEDAL

- right-hand, extendahoe control (replaces D148843 pedal)

1шт.

2

D140933

SUPPORT

- pedal, with hole for tube and grease fitting

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER - clip ring, special

1шт.

7

D150493

END

- 3/8 inch, special (replaces D134900 clevis)

1шт.

8

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN - clevis, 3/8 inch

1шт.

9

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

11

D140610

ROD

- extendahoe control

1шт.

12

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, Serial Range: rod-valve

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

D85869

BELLOWS

BOOT - control rod

1шт.

15

D150032

TUBE

- pedal lube

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.
