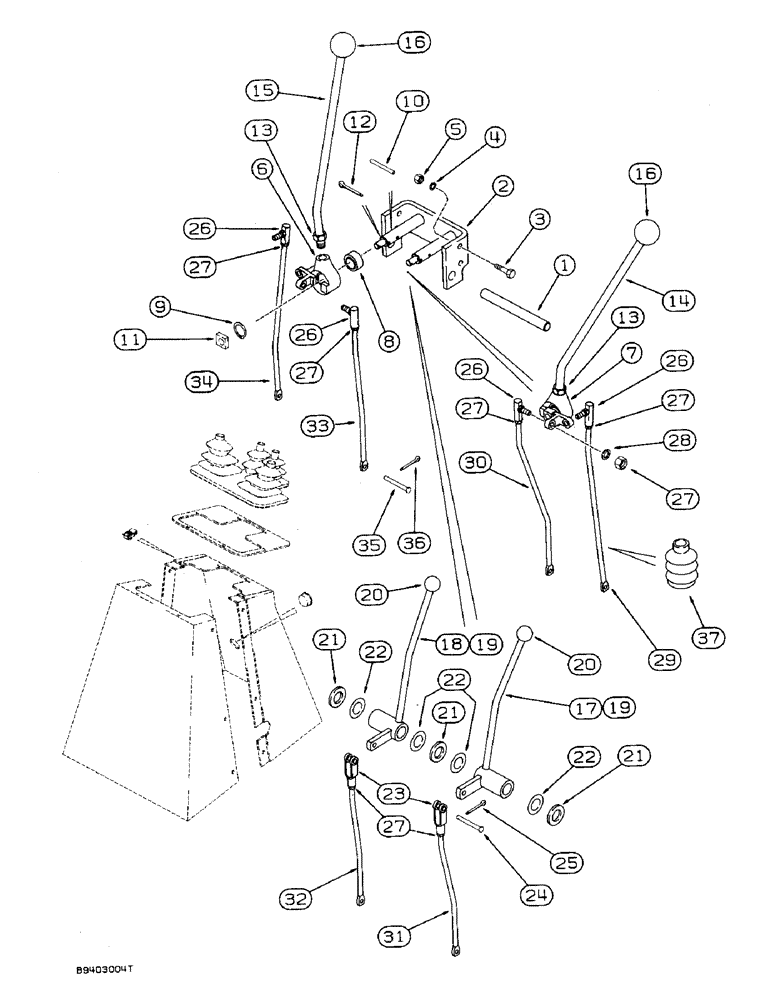

Запчасти Case 590 (9-028) - BACKHOE CONTROLS W/ HAND SWING, W/ NON-EXTENDABLE DIPPER OR OPT. REAR HYD. ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

D148947

PIN,19.09mm OD x 179mm L

SHAFT - pivot, stabilizer control levers

1шт.

2

D148946

BRACKET

- mounting, control lever

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

L109118

LEVER

- pivot, right-hand, bucket and dipper

1шт.

7

L105056

LEVER

- pivot, left-hand, boom and swing

1шт.

8

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- self-aligning

2шт.

9

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, self-aligning bushing

2шт.

10

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

4шт.

11

D38305

BLOCK

- wear

2шт.

12

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

13

425-1110

NUT,5/8"-18, G5

2шт.

14

D149891

LEVER

- left-hand, boom and swing control

1шт.

15

D149891

LEVER

- right-hand, bucket and dipper control

1шт.

16

D39118

KNOB

- control levers

2шт.

17

D149013

LEVER

- left-hand stabilizer control

1шт.

18

D149012

LEVER

- right-hand stabilizer control, Includes: Ref. 19

1шт.

19

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Control lever, used with D149012 and D149013 levers

2шт.

20

D59912

KNOB

- stabilizer control levers

2шт.

21

495-11081

WASHER,3/4", SAE

3шт.

22

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

1шт.

23

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

2шт.

24

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special

2шт.

25

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

26

D149295

BALL JOINT,3/8"

JOINT - ball, control rod

4шт.

27

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

10шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

D148954

LEVER

ROD - swing control

1шт.

30

D148955

ROD

- boom control

1шт.

31

D148959

LEVER

ROD - left-hand stabilizer control

1шт.

32

D148958

LEVER

ROD - right-hand stabilizer control

1шт.

33

D148956

LEVER

ROD - dipper control

1шт.

34

D148957

LEVER

ROD - bucket control

1шт.

35

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, Serial Range: rods-valve

6шт.

36

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

37

D85869

BELLOWS

BOOT - control rods, if used

6шт.
