(9-026) - BACKHOE CONTROLS W/ FOOT SWING, PARTS USED W/ EXTENDABLE DIPPER OR OPT. REAR HYD. ATTACHMENTS

Запчасти Case 590 (9-026) - BACKHOE CONTROLS W/ FOOT SWING, PARTS USED W/ EXTENDABLE DIPPER OR OPT. REAR HYD. ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

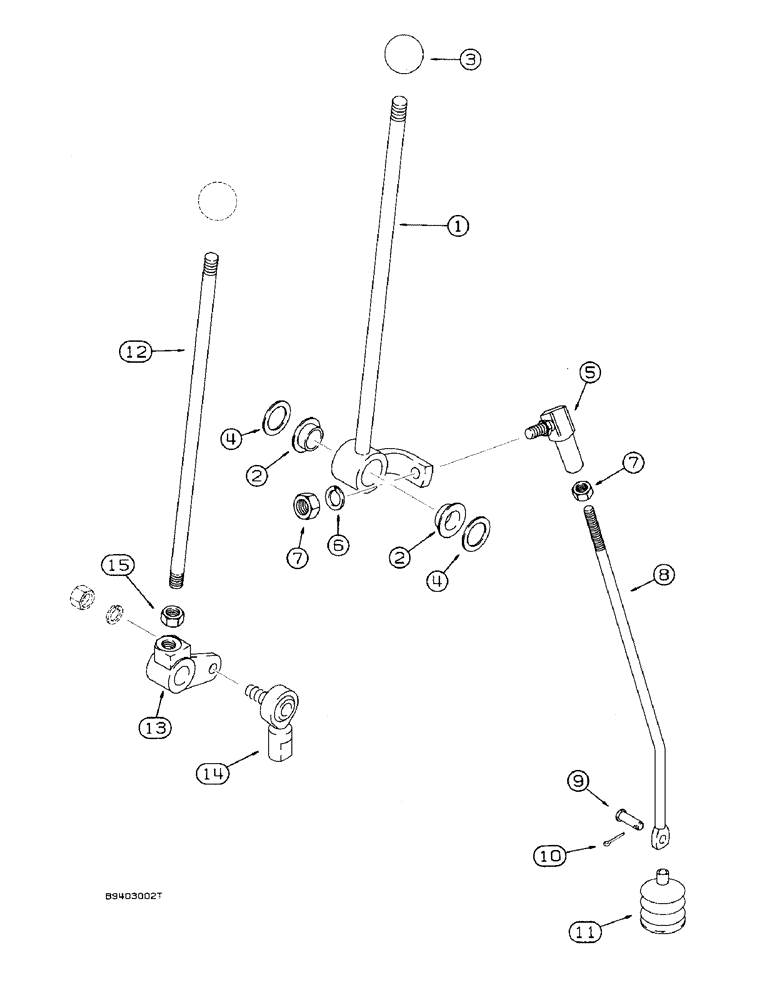

Схема запчастей Case 590 - (9-026) - BACKHOE CONTROLS W/ FOOT SWING, PARTS USED W/ EXTENDABLE DIPPER OR OPT. REAR HYD. ATTACHMENTS (09) - CHASSIS/ATTACHMENTS
4
7
3
10
14
2
12
11
1
8
2
4
15
13
6
5
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D149087

LEVER

- extendahoe control, no longer available, order 121613A1 lever, D150436 and 425-118, Ref. 12, 13 and 15, Includes: Ref. 2

1шт.

2

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

Control lever

2шт.

3

L54563

KNOB

- extendahoe control lever

1шт.

4

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

1шт.

5

D149295

BALL JOINT,3/8"

JOINT - ball, control rod, if used

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

8

D149009

ROD

- extendahoe control, Serial Range: lever-valve

1шт.

9

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, Serial Range: rod-valve

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

D85869

BELLOWS

BOOT - control rod, if used

1шт.

12

121613A1

ROD

LEVER - extendahoe control, if used (replaces 101525A1)

1шт.

13

D150436

CRANK LEVER

BELLCRANK - extendahoe control lever, if used

1шт.

14

D64925

JOINT

- ball, used with Ref. 12 and 13 only, if used

1шт.

15

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, if used

1шт.
