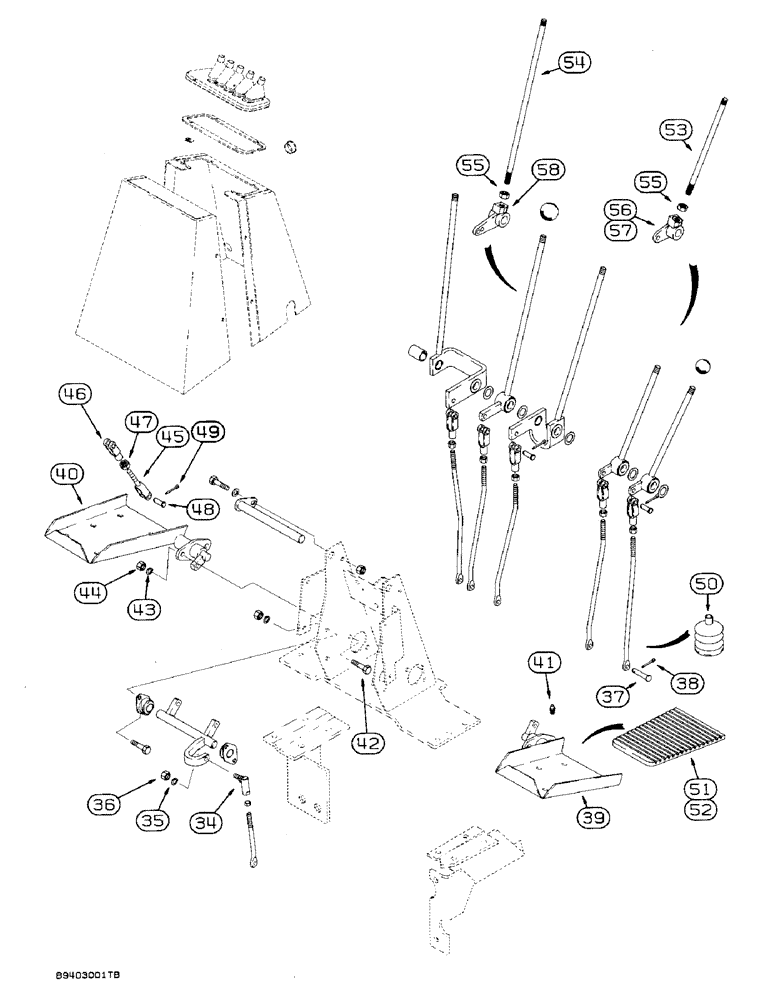

Запчасти Case 590 (9-024) - BACKHOE CONTROLS WITH FOOT SWING, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

34

D149295

BALL JOINT,3/8"

JOINT - ball, swing control, Serial Range: rod-shaft

1шт.

35

492-11038

LOCK WASHER,3/8"

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

37

D149287

PIN,7.9mm OD x 26.72mm L

- Clevis, Special, Serial Range: rods-valve

6шт.

38

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

39

D148997

PEDAL

- left-hand swing

1шт.

40

D149002

PEDAL

- right-hand swing

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

42

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

43

492-11038

LOCK WASHER,3/8"

4шт.

44

425-106

NUT,3/8"-16, Cl 5

4шт.

45

D150503

END

ROD - with clevis, swing pedal to cross shaft (replaces R20187 rod)

2шт.

46

D149262

CLEVIS,3/8-24"

- special, swing pedal rod

2шт.

47

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

2шт.

48

D149288

PIN,8.33mm OD x 30.66mm L

- Clevis, Special, Swing pedal rod

4шт.

49

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

50

D85869

BELLOWS

BOOT - control rods, if used

6шт.

51

D137492

LINING

PAD - rubber, left-hand swing pedal, optional deluxe interior

1шт.

52

D137491

LINING

PAD - rubber, right-hand swing pedal, optional deluxe interior

1шт.

53

101526A1

ROD

LEVER - stabilizer control, if used

2шт.

54

121613A1

ROD

LEVER - dipper control (replaces 101525A1)

1шт.

55

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, if used

3шт.

56

D150434

CRANK LEVER

ROD - left-hand stabilizer control, if used

1шт.

57

D150435

CRANK LEVER

ROD - right-hand stabilizer control, if used

1шт.

58

D150397

CRANK LEVER

ROD - dipper control, if used

1шт.
