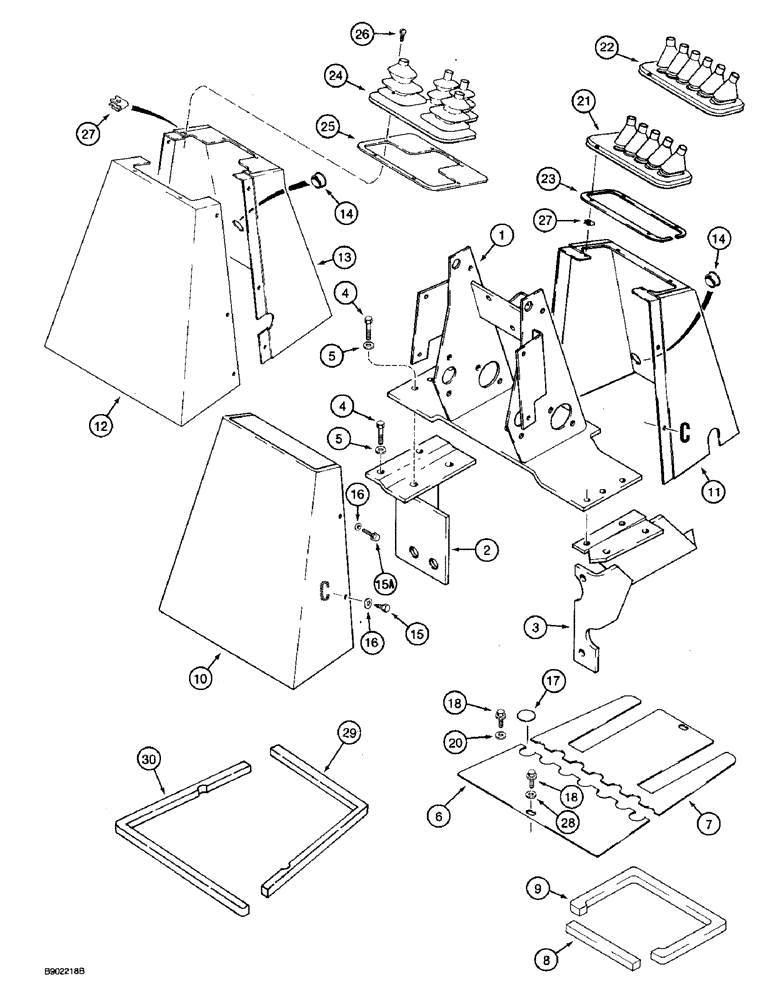

Запчасти Case 590 (9-020) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

108937A1

BRACKET

SUPPORT - backhoe control mounting (replaces D149035)

1шт.

2

109689A1

BRACKET

- valve mounting, left-hand (replaces D140816)

1шт.

3

D140820

BRACKET

- valve mounting, right-hand

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

6

D140101

PLATE

- floor, backhoe control tower, if used

1шт.

7

D140100

PLATE

- floor, backhoe control tower, if used

1шт.

8

D137902

GASKET

- 7 inch (178 mm) long, gasket, if used

1шт.

9

D133491

GASKET

- gasket, backhoe control floor plate, if used

1шт.

10

D134085

COVER

- console, rear, used on all models with foot swing

1шт.

11

D149668

COVER

- console, front, used on all models with foot swing

1шт.

12

D149669

COVER

- console, rear, used on all models with hand swing

1шт.

13

D149670

COVER

- console, front, used on all models with hand swing

1шт.

14

353-411

PLUG,Dome, 1.000" hole, Nylon

1 used with D149670 console - 2 used with D149668 console cover Dome, 1.000" hole, Nylon

1-2шт.

15

281-1878

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

15a

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

16

195-140

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

5шт.

17

D140267

PLUG,30.16mm OD

- button, 1-3/16 inch (30 mm) diameter, tan, if used

1шт.

18

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - hex washer head, self-tapping, 5/16 NC x 3/4 inch, if used (replaces D141589)

4шт.

20

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/64 inch, if used

2шт.

21

D149866

BOOT

- used with D149668 console cover with 5 control levers

1шт.

22

D149867

BOOT

- used with D149668 console cover with 6 control levers

1шт.

23

D149509

OIL SEAL

RETAINER - boot, used with items 21 and 22

1шт.

24

D149868

BOOT

Used with D149670 console cover with 4 control levers

1шт.

25

D149512

PLATE

RETAINER - boot, used with Ref. 24 only

1шт.

26

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

(4) used with D149509 retainer, (6) used with D149512 retainer Cross Pan Hd, #10-24 x 3/4"

4-6шт.

27

131-861

SPRING NUT,Tinn, U, #10-24

4 used with D149509 retainer, 6 used with D149512 retainer Tinn, U, #10-24

4-6шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

2шт.

29

104540A1

SEALING STRIP,25mm W x 641mm L x 25.4mm Thk

- foam, self-adhesive back, control mounting support, used in place of Ref. 6-9 on some models, if used

1шт.

30

104541A1

SEALING RING

- foam, self-adhesive back, control mounting support, used in place of Ref. 6-9 on some models, if used

1шт.
