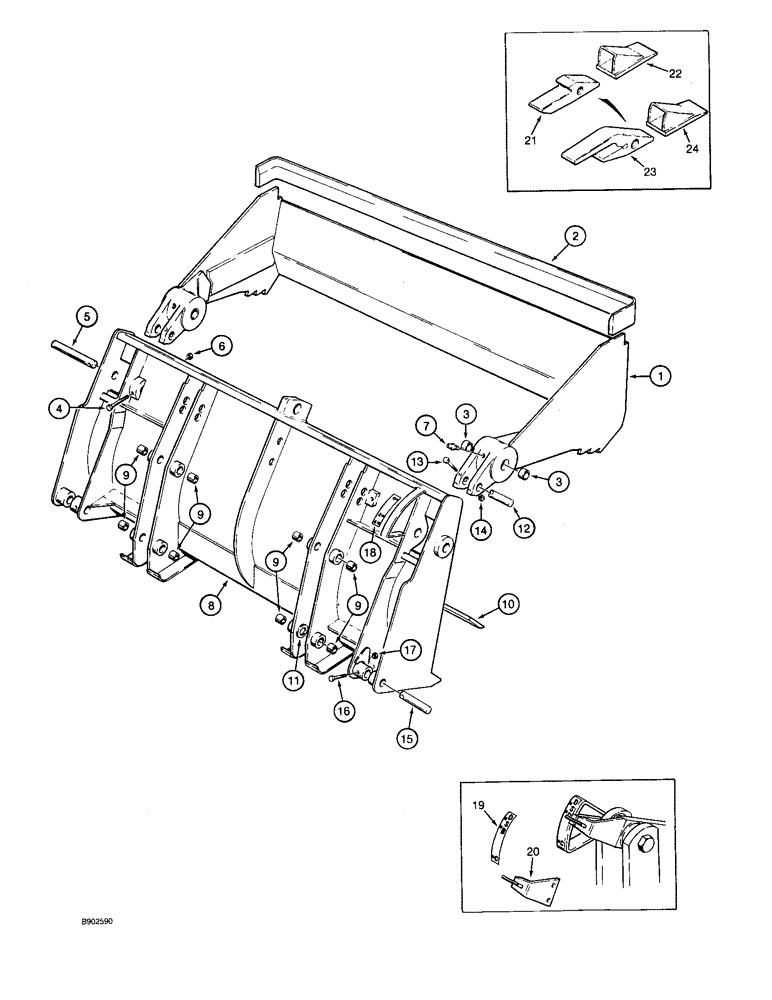

Запчасти Case 590 (9-018) - CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

D104128

BUCKET

ASSEMBLY - clam, 93 inch (2362 mm) wide, without teeth, machinery item, order from Machinery Price List, Includes: Ref. 1 - 11

1шт.

The weld on blade is zpc216601, ship direct only

1шт.

For bolt-on blade for 93" clam bucket order ZPC228384, ship direct only

1шт.

E46042

JAW

CLAM ASSEMBLY - bucket, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

For rear cutting edge use same as Ref. 10 P/N E35701

1шт.

The backblade on this blade is NSS.

1шт.

2

E35363

BLADE

EDGE - cutting, bucket

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- clam pivot

4шт.

4

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

5

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

6

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

D149277

BLADE

ASSEMBLY - clam bucket, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

9

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

- bucket ear

8шт.

10

E35701

BLADE

EDGE - cutting, blade

1шт.

11

D135602

WASHER

- flat, 1-5/8 inch ID x 2-3/8 inch O.D., hardened, special, welded to lower inner bucket ears

2шт.

12

D51392

PIN,31.72mm OD x 101.6mm L

- cylinder mounting, upper

2шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

14

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

15

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

16

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

17

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

18

321-1708

DECAL

- 0 - 2 - 4, clam bucket opening indicator

1шт.

19

321-1707

DECAL

- clam bucket position

1шт.

20

D123157

SUPPORT

POINTER - bucket position, bolts to clam bucket link, see figure 9-14 for link and mounting hardware

1шт.

21

D26368

SUPPORT

SHANK - tooth, if used, bucket teeth

1шт.

22

D27748

TOOTH

POINT - bucket tooth, if used, bucket teeth

1шт.

23

D58499

SUPPORT

SHANK - tooth, heavy duty service option, if used, bucket teeth

1шт.

24

D36720

TOOTH

POINT - bucket tooth, heavy duty service option, if used, bucket teeth

1шт.
